ELECTRICAL SYSTEM

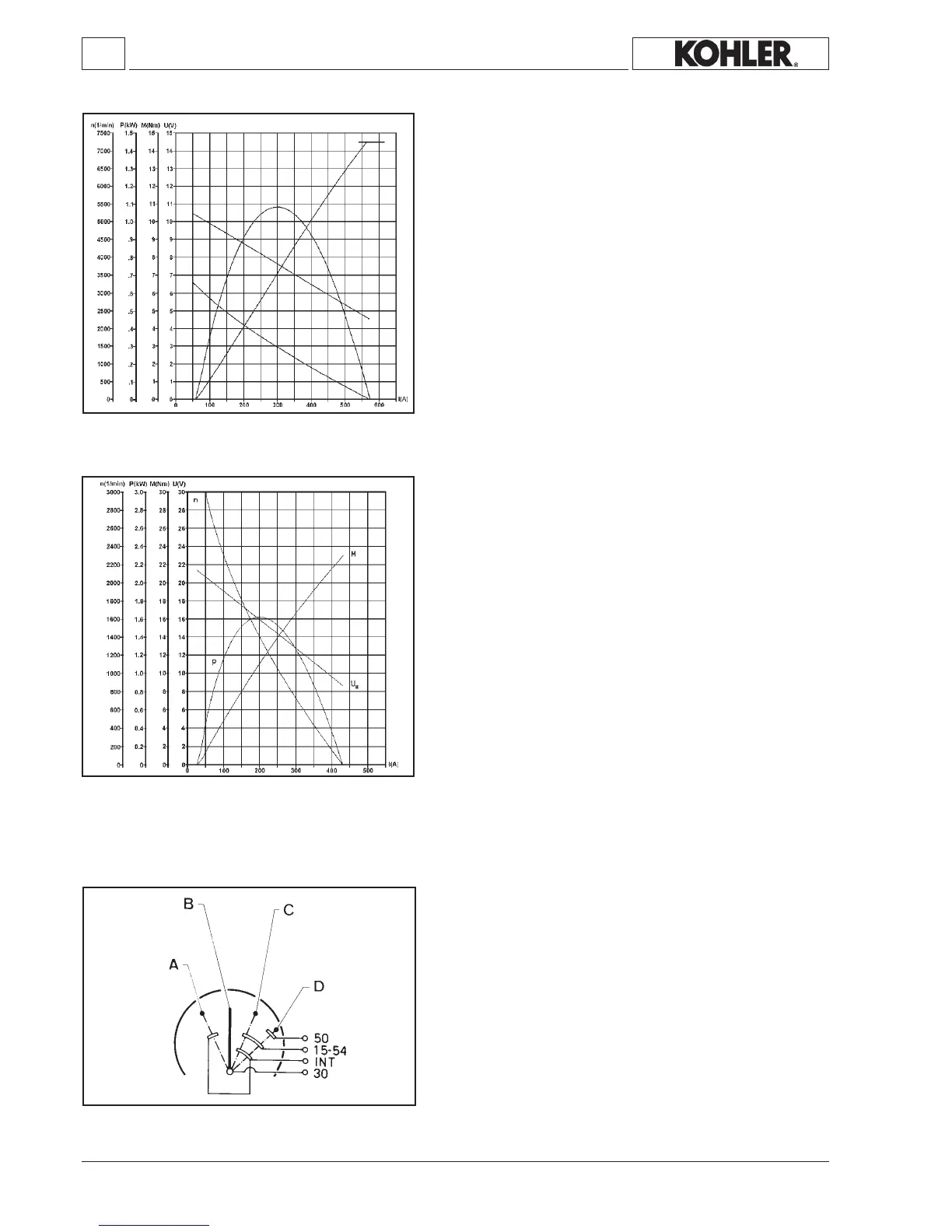

Characteristic curves of Bosch starter motor type DW (L) 12V,
0.9 kW
The curves were measured at a temperature of -20°C with a 55Ah
battery.
U=VoltageonmotorterminalsinVolts.
n =Motorspeedinrpm
M=TorqueinNm
I (A) =PowerdrawinAmperes.
Characteristic curves of Bosch starter motor type DW (L) 24V,
1.6 kW
The curves were measured at a temperature of -20°C with a 36Ah
battery.
U=VoltageonmotorterminalsinVolts.
n =Motorspeedinrpm
M=TorqueinNm
I (A) =PowerdrawinAmperes..
Ignition switch positions
A=Accessory
B =Off
C=On
D=Start
