ED0053030410
TECHNICAL INFORMATION

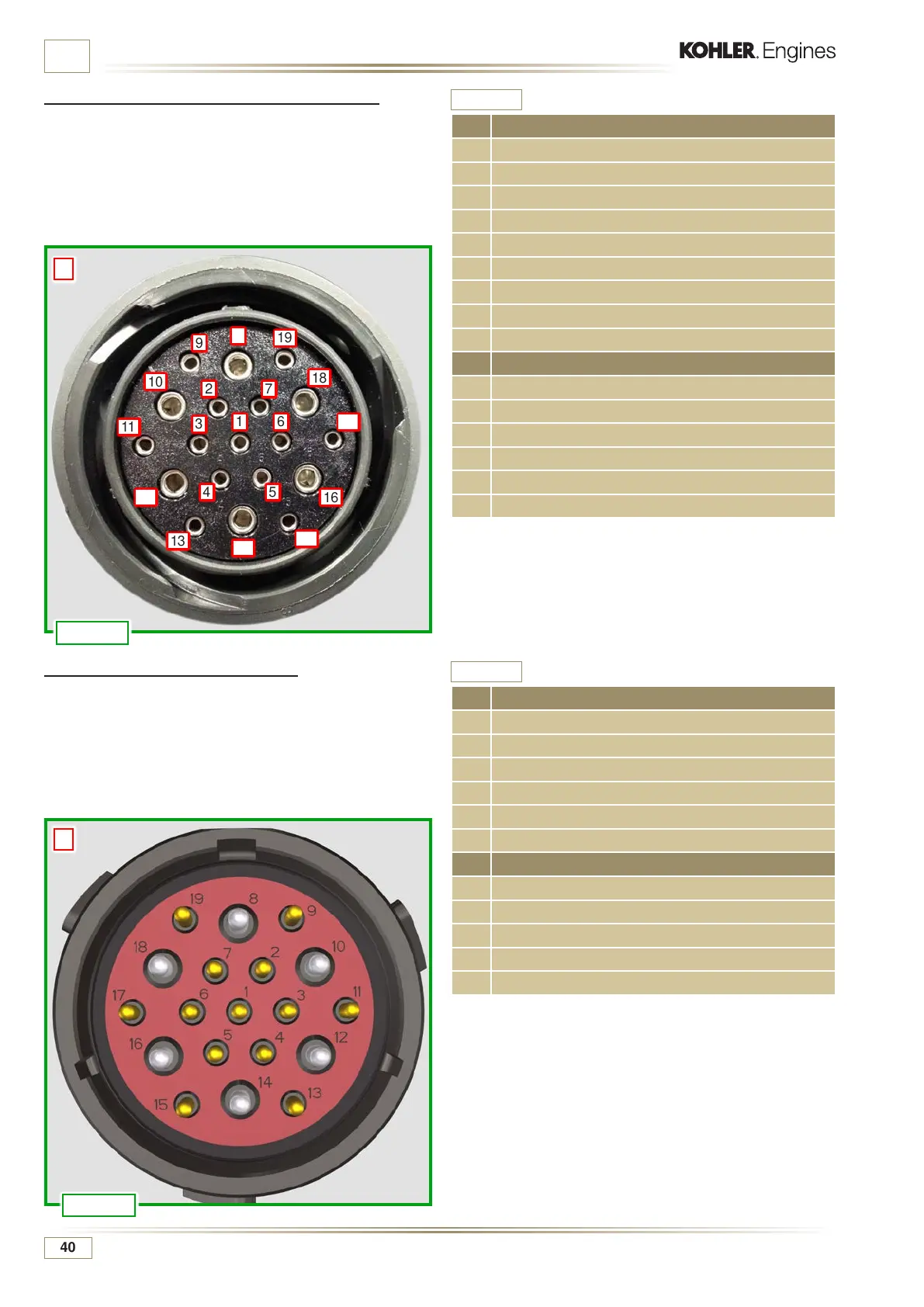

2.13.1.1 Connector panel on the engine/machine
The connector is a female 19-way Deutsch type. There is a
list of all PIN connections in Tab. 2.32.
2.13.1.2 Accessories panel connector
The connector is a male 19-way Deutsch type. There is a list
of all PIN connections in Tab. 2.33.
PIN.
INLET SIGNALS TO THE PANEL
2
Fuel lter (water detection sensor)
4
Radiator (coolant level sensor)
7
Outlet indicator general alarm
9
External Stop
15
Inlet indicator general alarm
19
Fuel tank (fuel level sensor)
PIN.
OUTLET SIGNALS FROM THE PANEL
5
Earth
6
Relay with 5A fuse (+ 15 wrench)
10
Grid heater (Relay)
13
Alternator (W)
17
Coolant temperature warning light
PIN.
INLET SIGNALS TO THE PANEL
1
Oil pressure switch
2
Alternator indicator light
3
Coolant temperature warning light
4
Air cleaner clogging warning light
7
Outlet indicator general alarm
9
Electro-Stop
13
Alternator (W)
14
Starter motor (+ 30)
15
Inlet indicator general alarm
PIN.
OUTLET SIGNALS FROM THE PANEL
5
Earth
6
IG excitation alternator (+15 wrench)
8
Starter motor (+ 50)
10
Grid heater (Relay)
11
Electric pump
18
Injection pump (Cold Start Advance - Fig. 2.46)
