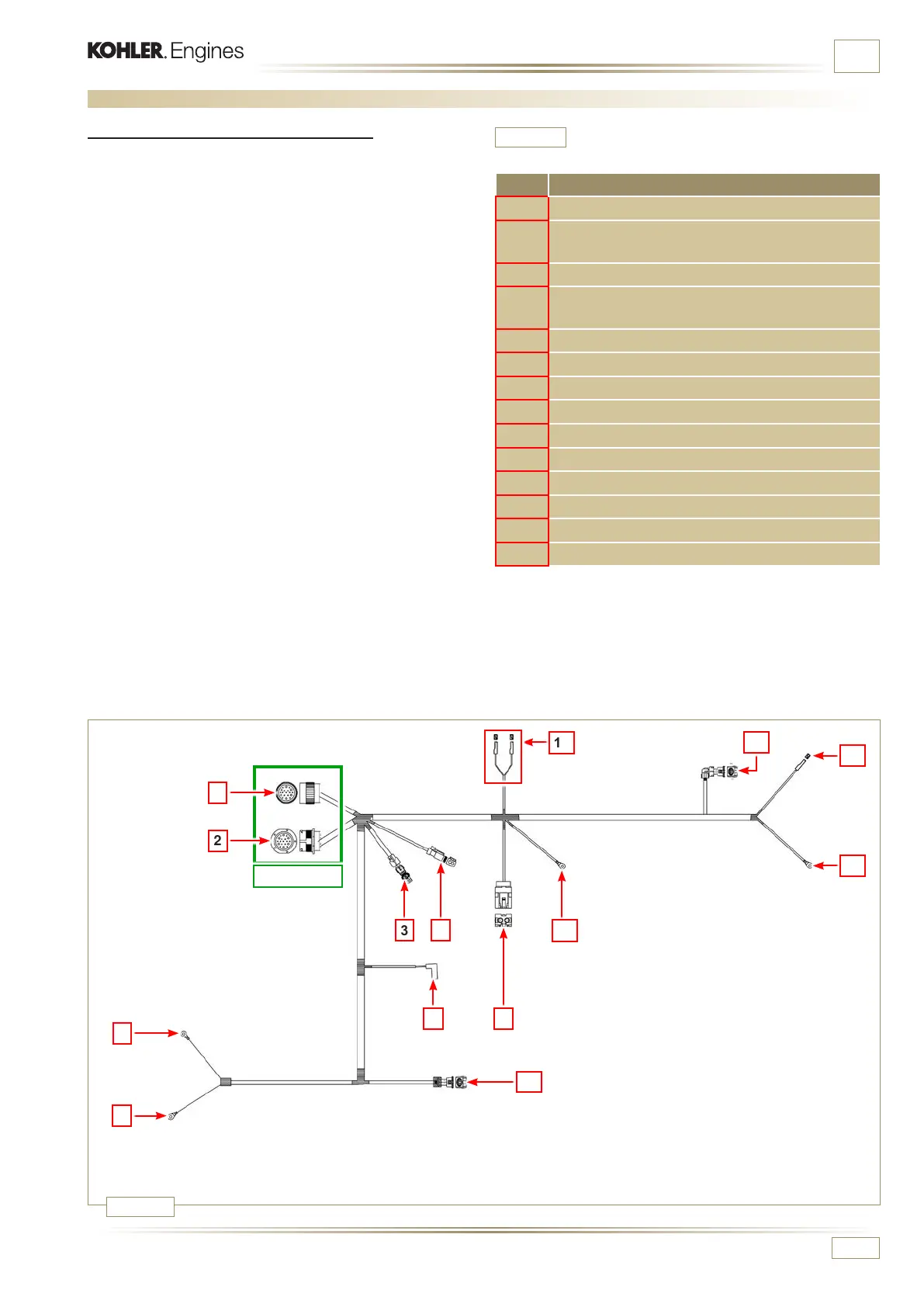

2.13 Electric system
2.13.1 Engine electrical wiring (opzional)
NOTE: Component not necessarily supplied by KOHLER.
Electrical wiring is supplied upon request, it interfaces with
the panel by means of 19-way Deutsch connectors (female
on engine panel - male on accessories panel).
The connectors are described in Tab. 2.31.
REF.
DESCRIPTION
1
Engine panel connector interface (Fig. 2.27)
2
Accessories panel connector interface (Fig.
2.28)
3
Electrical fuel pump connector
4
Cold Start Advance connector (on injection
pump - Fig. 2.46)
5
Fuse connector
6
Electro-Stop connector (on injection pump)
7
"L" alternator connector (Iskra)
8
"W" alternator connectors (Iskra)
9
Coolant temperature sensor connector
10
Oil pressure switch connector
11
Starter motor connector "+ 50"
12
Starter motor connector "+ 30"
13
Air cleaner clogging sensor connector
14
Earth connector
