TECHNICAL INFORMATION

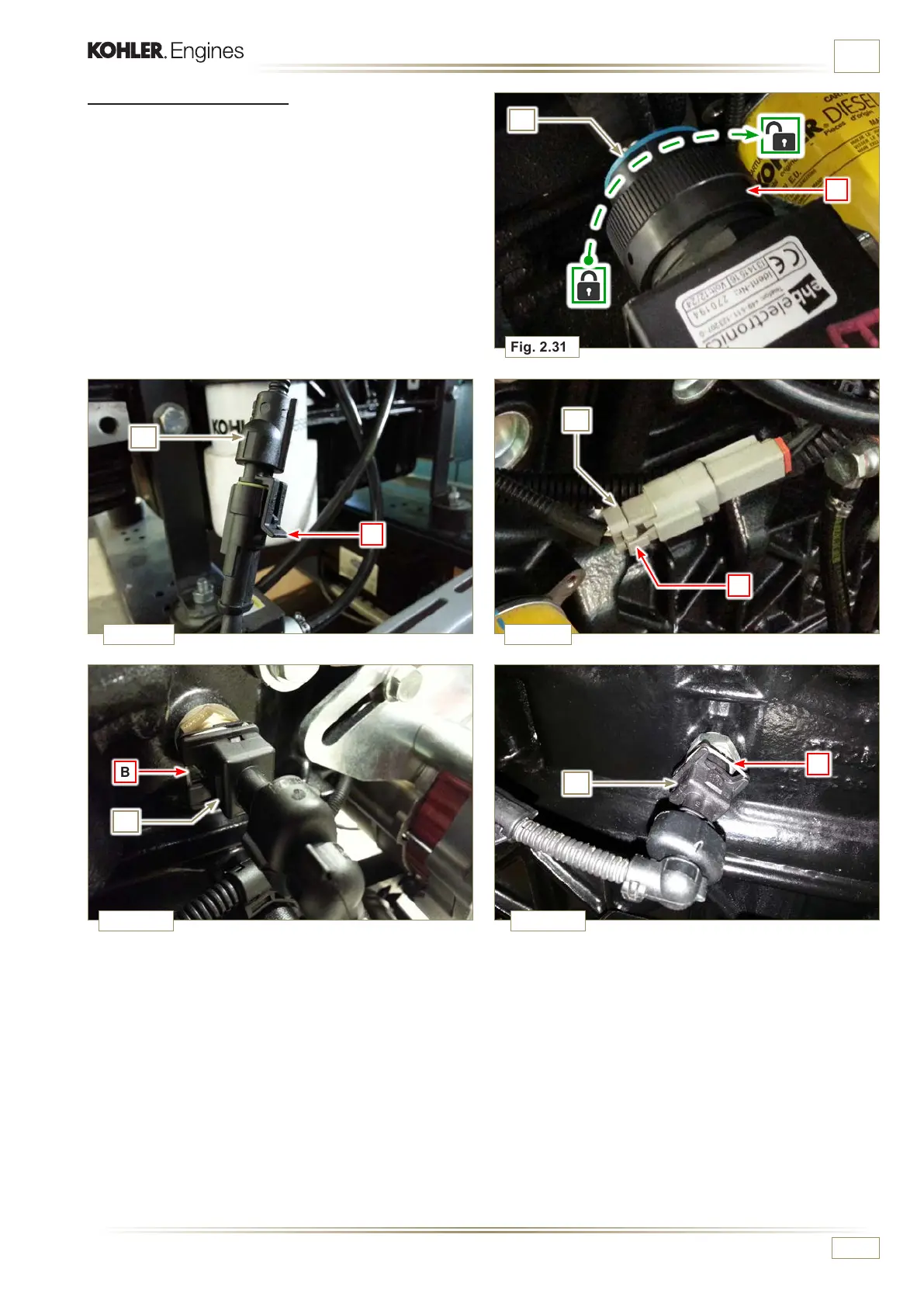

2.13.1.3 Wiring disconnection
Some sensor connectors and electronic control devices are
sealed.
This tipe of connectors must be disconnected by means of
pressure on tabs A or unblock the retainers B, as illustrated
from Fig. 2.29 to Fig. 2.33.
