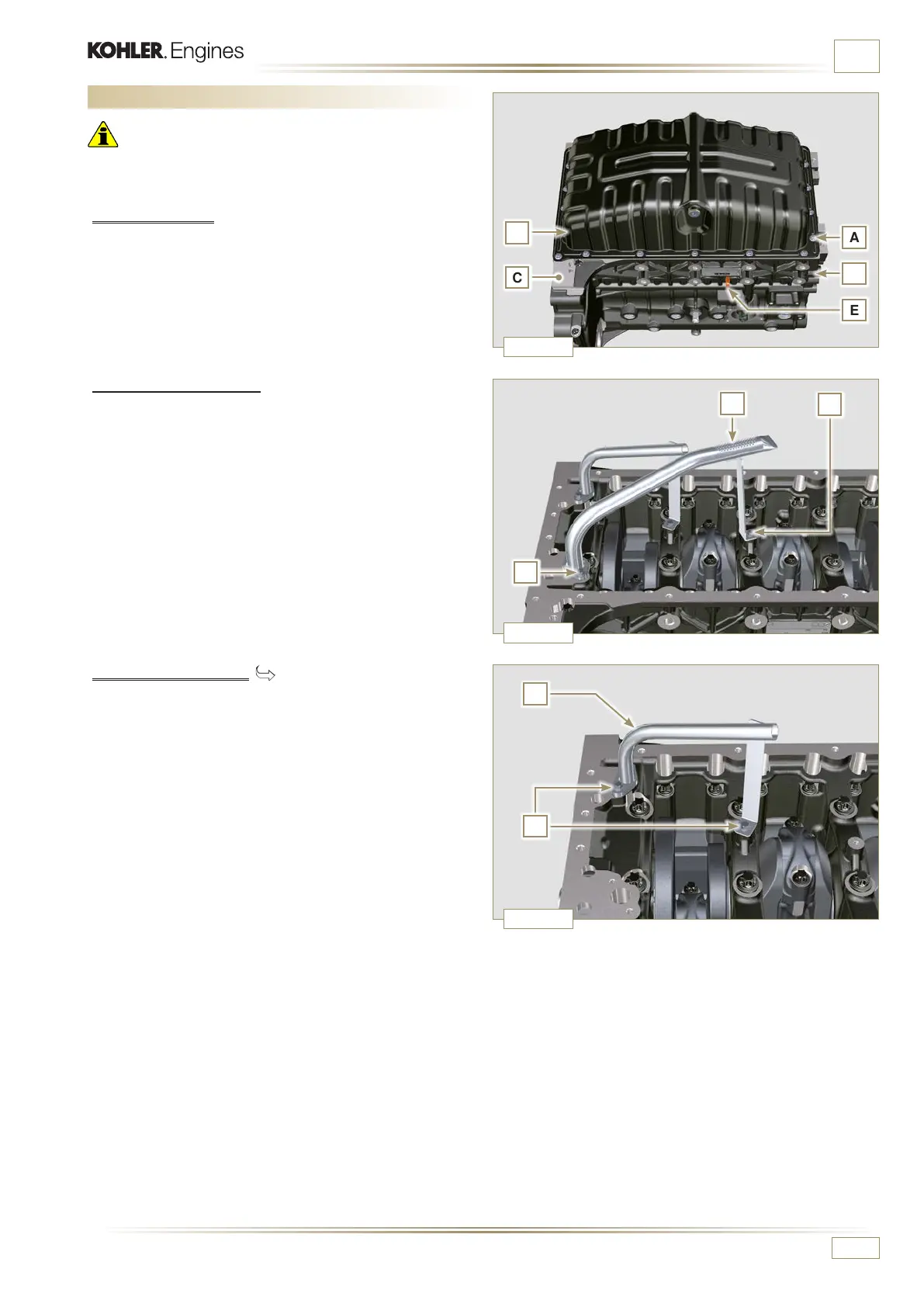

INFORMATION FOR DISASSEMBLY
7.11 Oil sump unit disassembly
Important
• For the following operation, turn the engine by bringing the
cylinder head surface downwards.
7.11.1 Oil sump
1 - Undo the screws A.
2 -
Remove the oil sump B by inserting a plate between
surface C of crankcase D and oil sump B.
3 -
Remove the oil dipstick E.
7.11.2 Oil suction pipe
1 - Undo the screws F and remove the pipe G.
7.11.3 Oil drain pipe ( )
1 - Undo the screws H and remove the pipe L.
