84
Fig. 7.27
Fig. 7.28
W
X
Y
X
Q
Fig. 7.25
Fig. 7.26
V
Z
Z
Q
J
K
ED0053030410

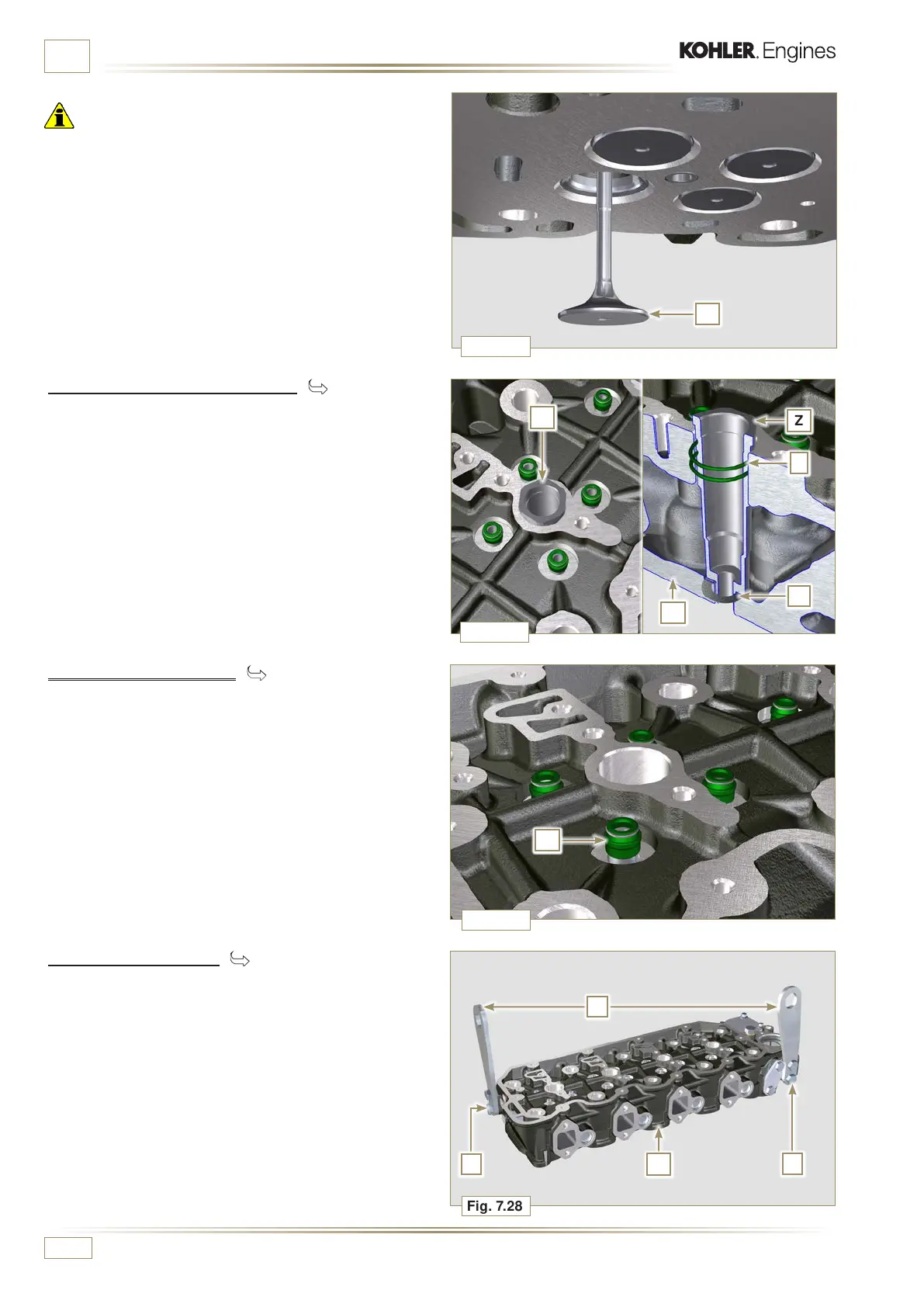

INFORMATION FOR DISASSEMBLY
7.10.3.3 Valve stem gasket ( )
1 - Remove the gaskets W.
7.10.3.4 Lifting eyebolts ( )
1 - Undo the screws X and remove the eyebolts Y.
2 - Thoroughly wash the cylinder head Q.
7.10.3.2 Electronic injector sleeves ( )
1 - Unscrew and remove the sleeves Z from the head Q.
2 - Remove the gaskets J, K.
Important
• Before removing the valves, make some marks to record their
original position, in order to avoid confusing them when re-
assembling (if they are not replaced).
4 -
Remove the valves V.
