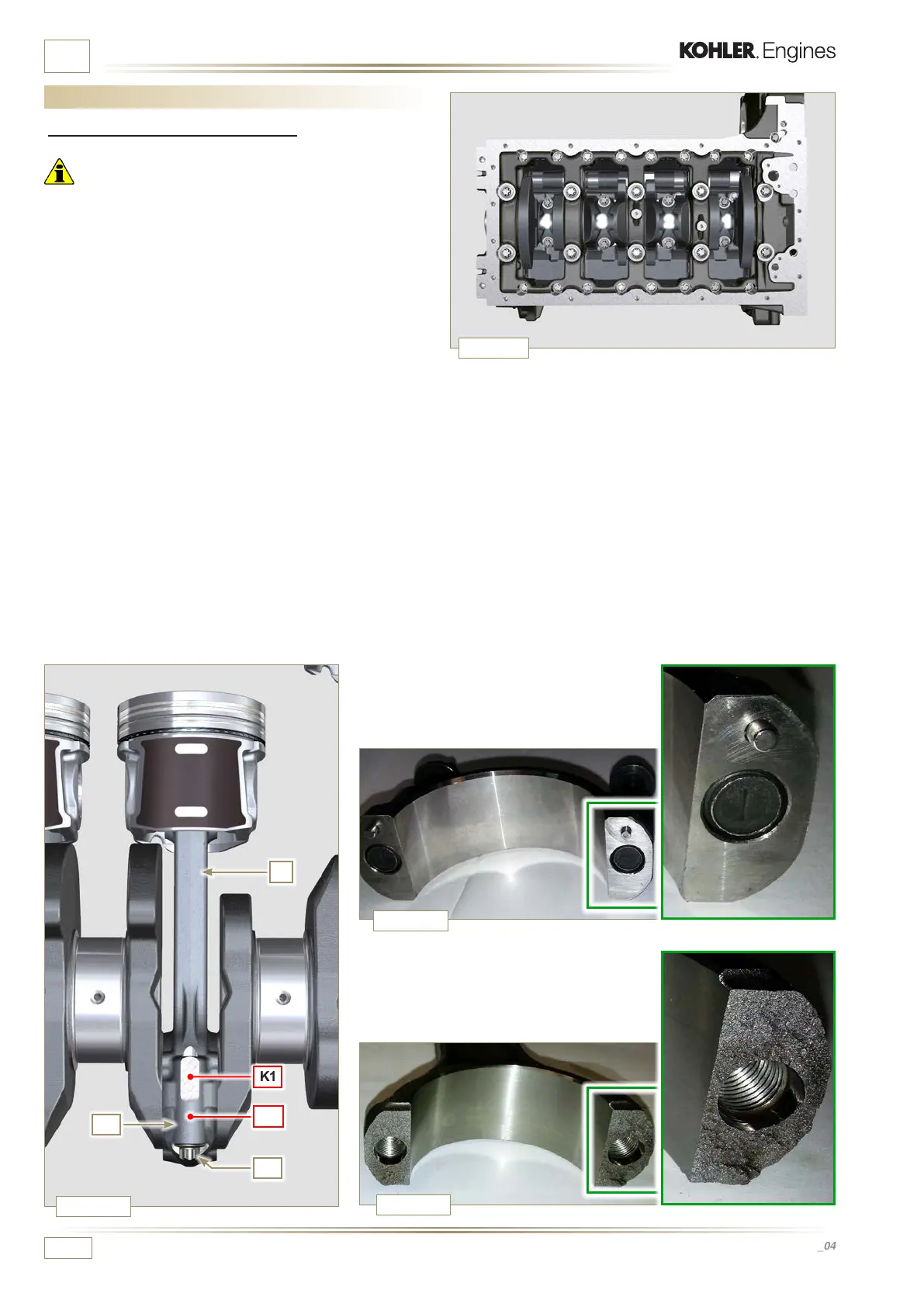

INFORMATION FOR DISASSEMBLY
7.12 Engine block disassembly
7.12.1 Piston unit / connecting rod
Important
Mark some numerical references (cylinder n°) on the
connecting rods, connecting rod caps N, pistons and gudgeon
pins to prevent unintentionally confusing the components not
replaced during assembly. Failure to do this may result in
engine malfunctions.
References on connecting rod M and cap N must only be
carried out on a side in correspondence with K1 and K2 , as
illustrated in Fig. 7.33.
1 - Unsrew bolts M and remove the connecting rod caps N.
NOTE: coupling cap N on the connecting rod can be carried
out with centring taper pins (Fig. 7.34) or broken (Fig.
7.35 - without centring taper pins).
