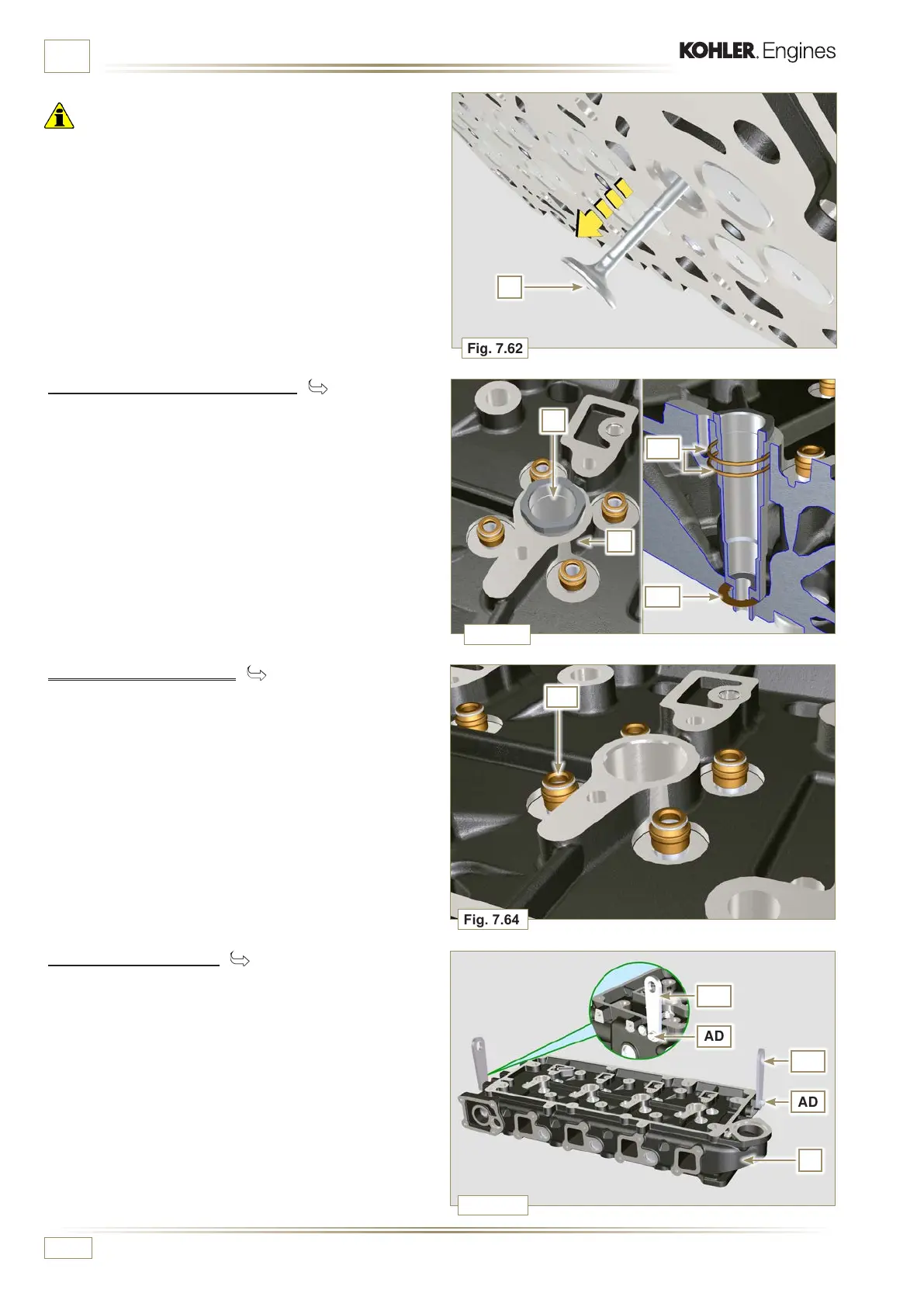

INFORMATION FOR DISASSEMBLY
7.13.4.2 Electronic injector sleeves ( )
1 - Unscrew and remove the sleeves Z from the head Q.
2 - Remove the gaskets AA and AB.
7.13.4.3 Valve stem gasket ( )
1 - Remove the gaskets AC.
7.13.4.4 Lifting eyebolts ( )
1 - Undo the screws AD and remove the eyebolts AE.
2 - Thoroughly wash the cylinder head Q.
Important
• Before removing the valves, make some marks to record their
original position, in order to avoid confusing them when re-
assembling (if they are not replaced).
4 -
Remove the valves V.
