Kohler KDI Series

7
109
_07
Fig. 7.68
E
Fig. 7.67
C
D
Fig. 7.66
A
AA AA
AA AA
B
ED0053029590

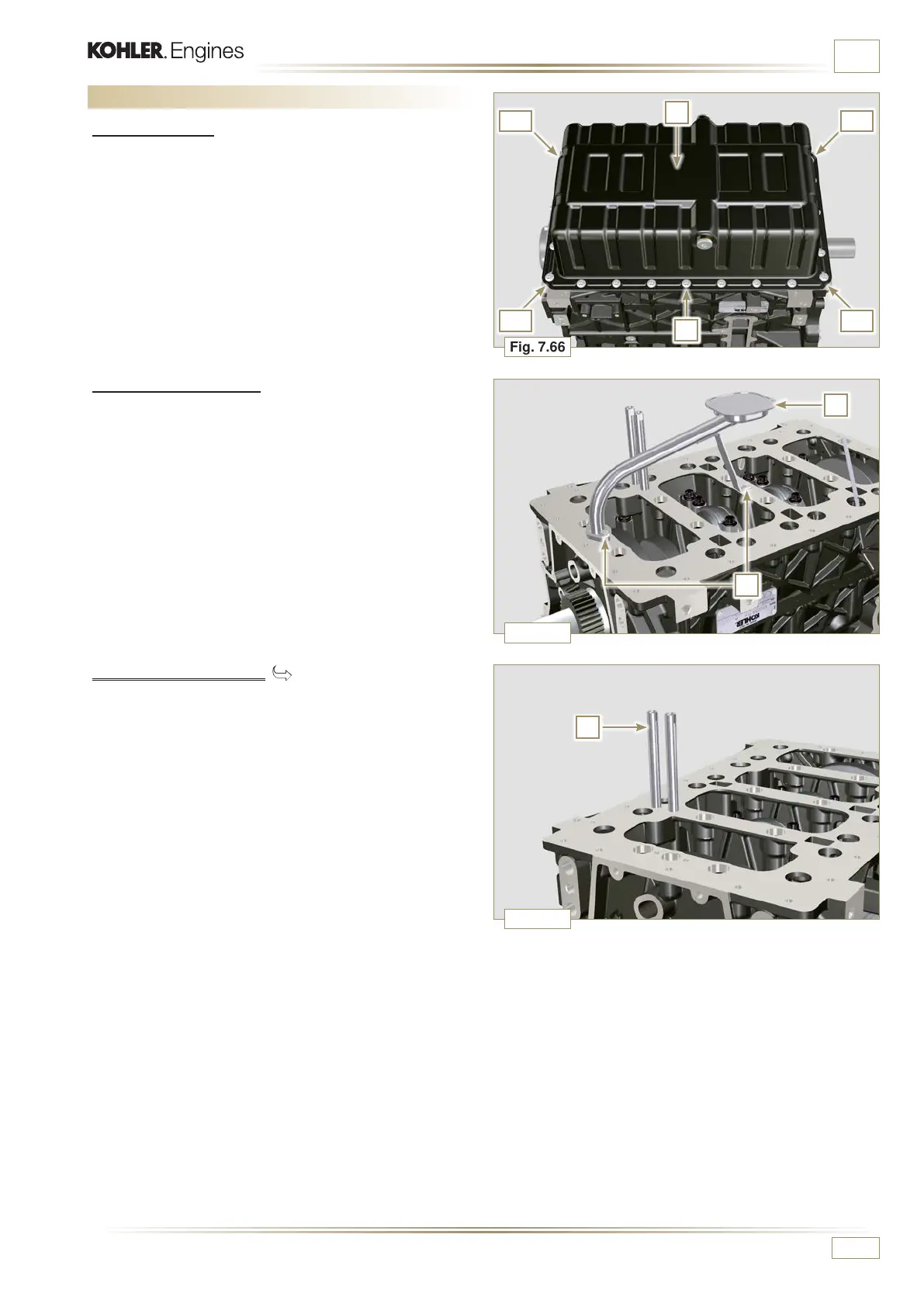

INFORMATION FOR DISASSEMBLY
7.14 Oil sump unit disassembly
7.14.1 Oil sump
1 - Undo the screws A.
2 -
Remove the oil sump B by inserting a plate in the areas
indicated by the arrow AA.
7.14.2 Oil suction pipe
1 - Undo the screws C and remove the oil pipe D.
7.14.3 Oil vapour pipes( )
1 - Unscrew and remove the pipes E.
