Kohler KDI Series

9
144
_07
Fig. 9.55
AC
AC
Fig. 9.53
5
4
7V
8
1
2
3 9
6
10
Fig. 9.54
AA
AB
F
AA
ED0053029590

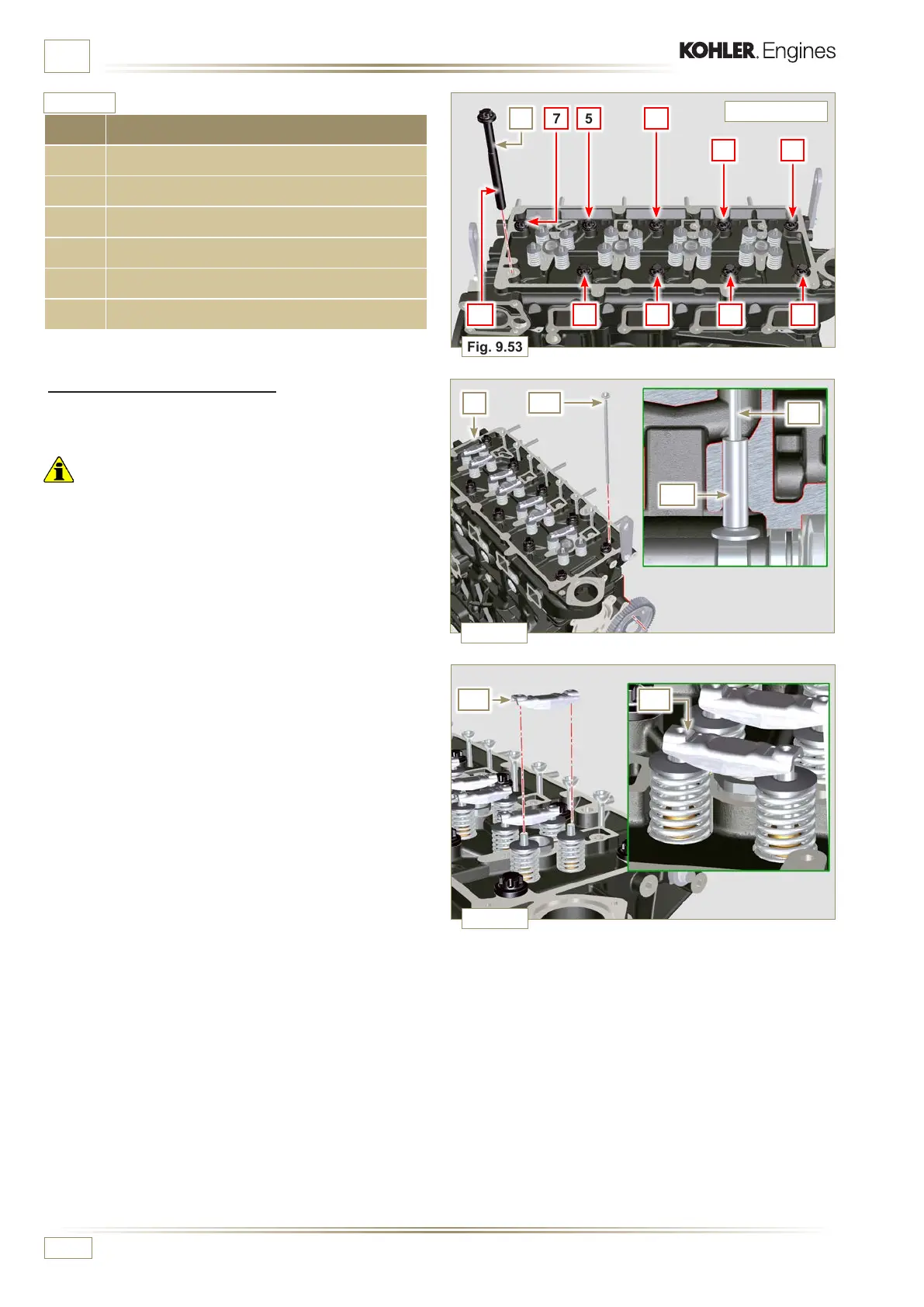

ASSEMBLY INFORMATION
2 - Mount the valve bridge AC on to the pairs of discharge and
suction valves.
Tab. 9.3
9.7.6 Rods and valve bridges
1 - Insert the rocker control rods AA into the niches of the
head F.
Important
• Properly centre the rods AA into the spherical housing of the
camshaft tappets AB.
4 CYLINDERS
CYCLE TORQUE
1 40 Nm
2 70 Nm
3 100 Nm
4 90°
5 90°
6 90°
