Kohler KDI Series

50
2
_07
Fig. 2.44
Fig. 2.45
Fig. 2.46
A
B
C

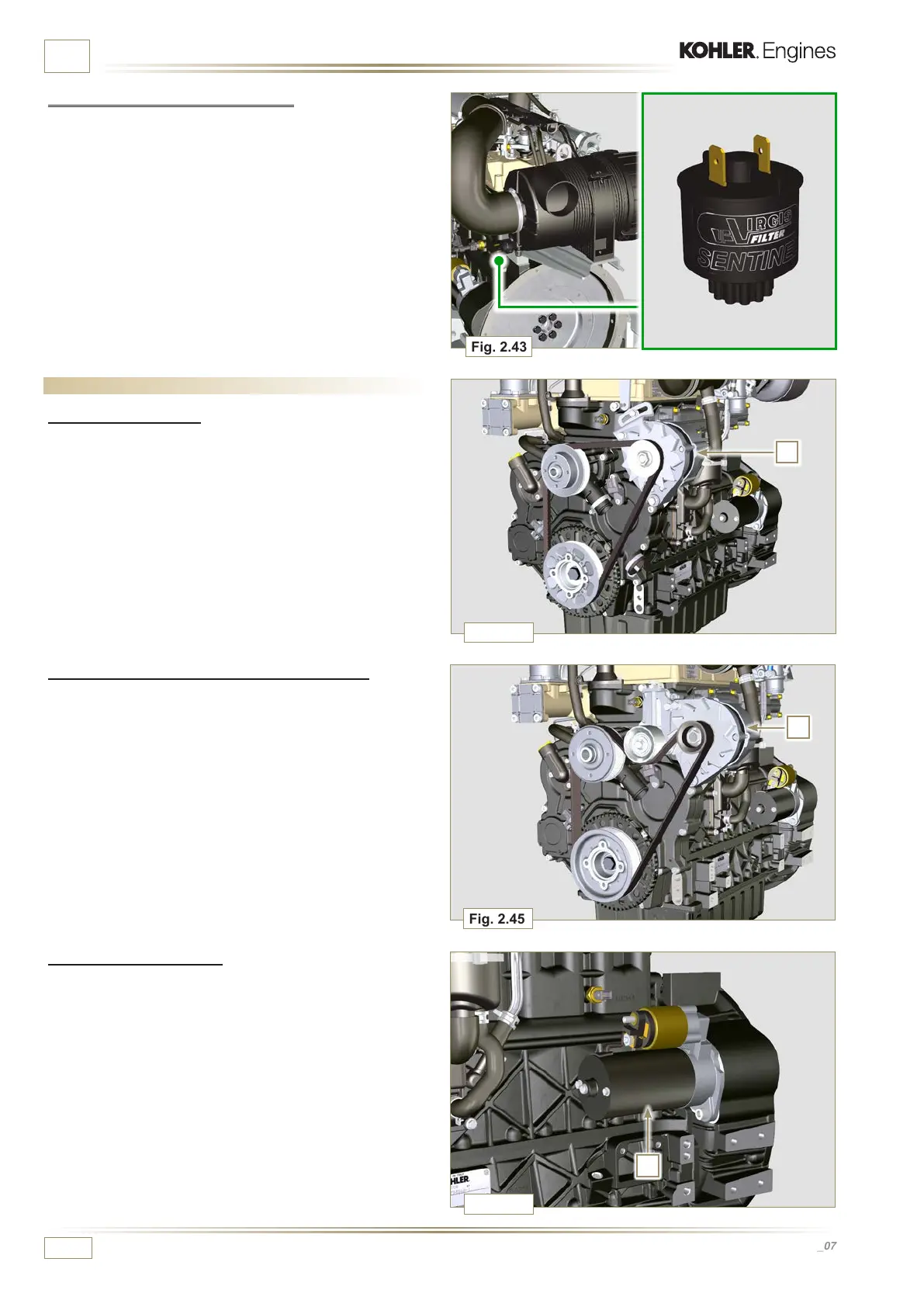

Fig. 2.43
ED0053029590
TECHNICAL INFORMATION
2.15.3 Starter Motor (C)
• Type Bosch 12 V
• Power 2 kW
• Direction of rotation anticlockwise (seen from timing
system side)
2.15 Electrical components
2.15.1 Alternator (A)
Externally controlled by the crankshaft by means of a belt.
• Ampere 80 A
• Volt 12V
2.15.2 Alternator for Poly-V belt (optional) (B)
Externally controlled by the crankshaft by means of a belt.
• Ampere 80 A
• Volt 12V
2.14.9 Air cleaner clogging switch
NOTE: Component not necessarily supplied by KOHLER.
The switch is assembled on the air cleaner. When the lter is
clogged, it sends a signal to the panel.
Features:
• Operating temperature: -30 °C / +100°C
• Contact usually open.
• Contact closed by vacuum: -50 mbar.
