Kohler KDI Series

6
82
_07
C
Fig. 6.44
Fig. 6.45
M
N
L
Fig. 6.47
S
R
T
Fig. 6.46
P
Q
ST_34
ED0053029590

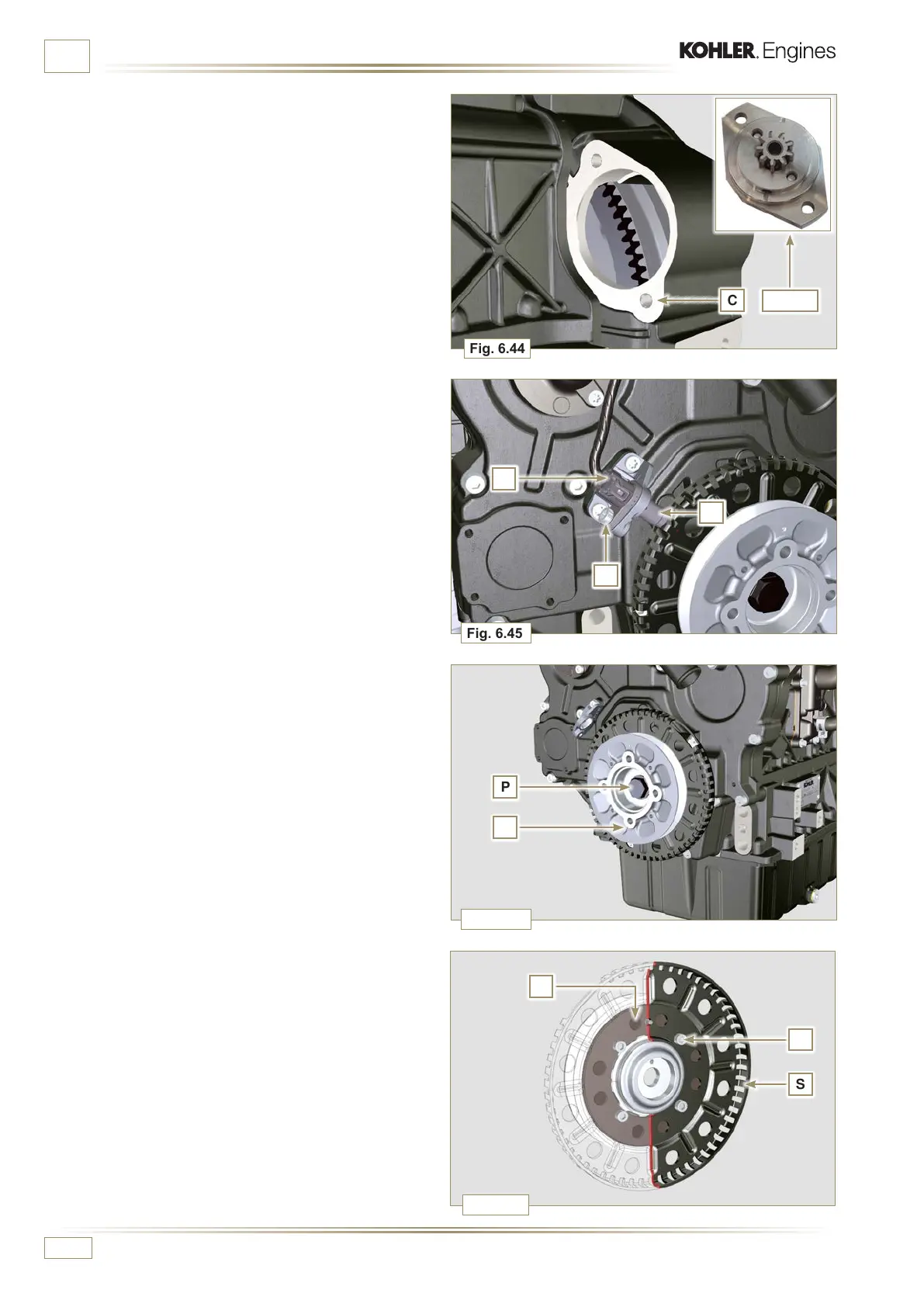

INFORMATION FOR REPLACING THE FUNCTIONAL UNITS
3 - Disassemble the starting motor.
4 - Mount the tool ST_34 in the seat of the starter motor C and
fit it with the two starter motor fixing screws.
6 -
Disconnect the connector L.
7 - Undo the screw M and remove the revolution sensor N and
its respective spacer.
9 -
Undo the screws R and remove the phonic wheel S with
the relevant sound-absorption disk T.
8 -
Undo the screw P (clockwise) and remove the pulley/
phonic wheel unit Q.
