INFORMATION FOR REPLACING THE FUNCTIONAL UNITS

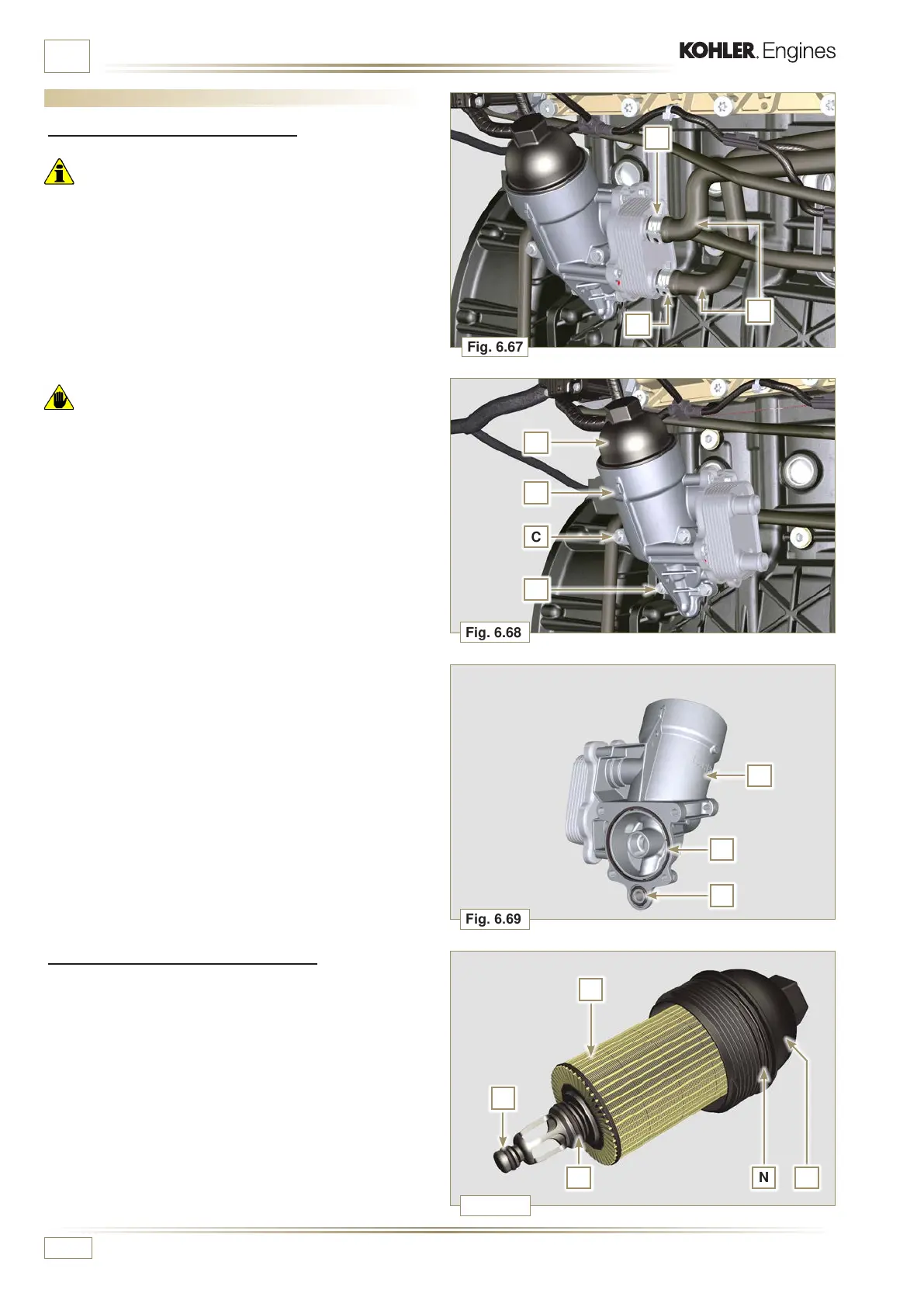

6.10 Oil cooler unit and oil lter replacement
6.10.1 Oil Cooler unit disassembly
Important
• Perform the operations described in Par. 5.1 and Par. 5.2.
• Oil Cooler unit E is not repairable.
1 - Release the clamps A.
2 - Remove the pipes B out of the Oil Cooler unit E.
Warning
• Electric/pneumatic screwdrivers are forbidden.
• Use a suitable container to recover any residue oil.
3 - Unscrew cartridge holder cover H by performing three
complete turns and wait 1 minute.
NOTE: this operation allows to oil contained in the support E to
flow into the oil sump in the correct way.
4 - Unscrew cartridge holder cover H and check that the oil in
the lub. oil filter support E has flowed towards the oil sump.
5 - Undo the screws C and D and remove the Oil Cooler unit E.
6 - Remove the gaskets F and G from the Oil Cooler unit E.
6.10.2 Oil lter cartridge replacement
1 - Remove gaskets L, M and N from element holder cover H.
2 - Remove cartridge P from element holder cover H.
