Kohler KDI Series

7
94
_07
Fig. 7.11
V U
Fig. 7.8
K
L
Fig. 7.9
P
M
Q
Fig. 7.10
R
T
S
ST_34ST_34
P
ED0053029590

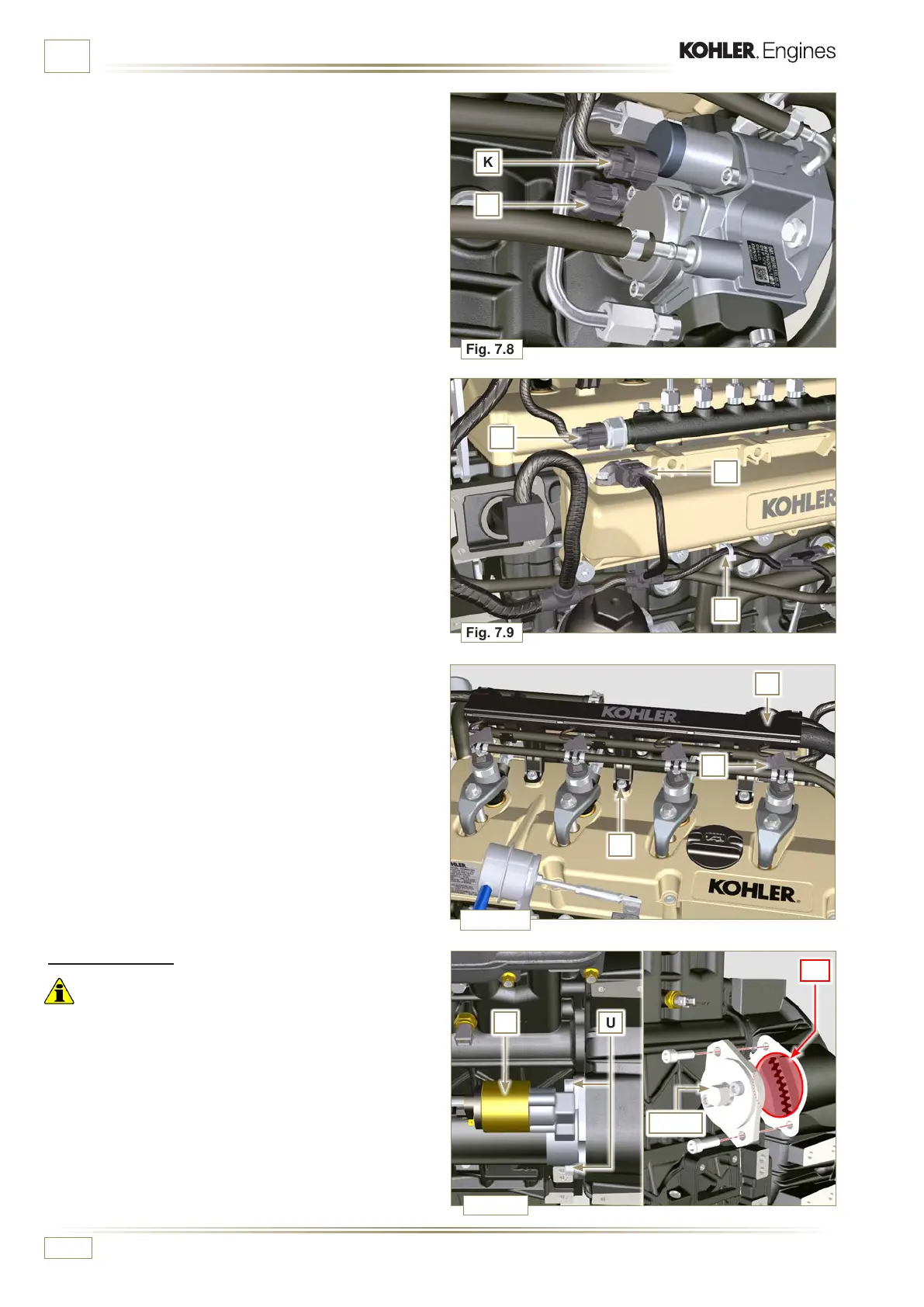

INFORMATION FOR DISASSEMBLY
7.3.2 Starter motor
Important
• The motor is not repairable.
1 - Undo the screws U and remove the starter motor V.
2 - Mount the tool ST_34 in the seat of the starter motor P and
fit it with the two starter motor fixing screws to block the
flywheel.
5 -
Disconnect the connectors K and L.
6 -
Disconnect the connectors M and P.
7 - Release the clamp Q.
8 -
Disconnect the connectors R.
9 - Undo the screws S and remove the wiring support T
(ST_06).
