Kohler KG150 User Manual

TP-6694 6/22 141

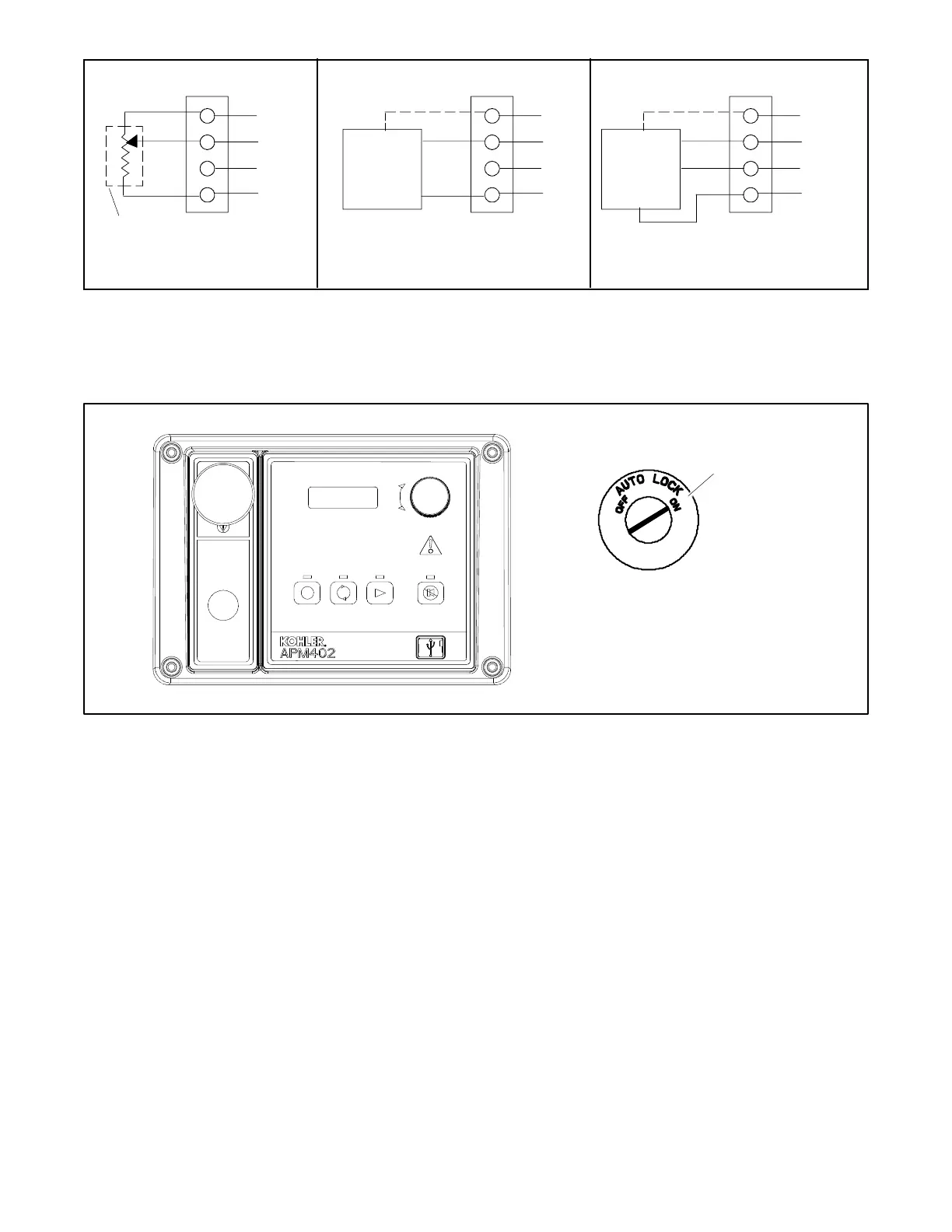

Figure 74 Analog Input Connections P28
6.1.7 Manual Key Switch
A two-position key switch is available for selected models. Turn the key to the ON position to lock the controller in AUTO mode.
The key can be removed when the switch is in the ON position.
Figure 75 Optional Key Switch
Optional 5 V Power
(50 mA max.)
Optional 5 V Power
(50 mA max.)
100 ohm min. or
50 mA max. current
0-5 Volt Ratiometric Sensor
0-5 Volt Analog Device
+/- 3 Volt Analog Device
TP-6694-6
P36
+5
VPx
VNx
GND
+5
VPx
VNx
GND
+5
VPx
VNx
GND
P36
P36
Analog
Device
Output
GND
GND
Analog
Device
+
-
Optional key switch
GM103075
FAULT
ALARM SILENCERUNAUTOOFF/RESET
