Kohler KG150 User Manual

144 TP-6694 6/22

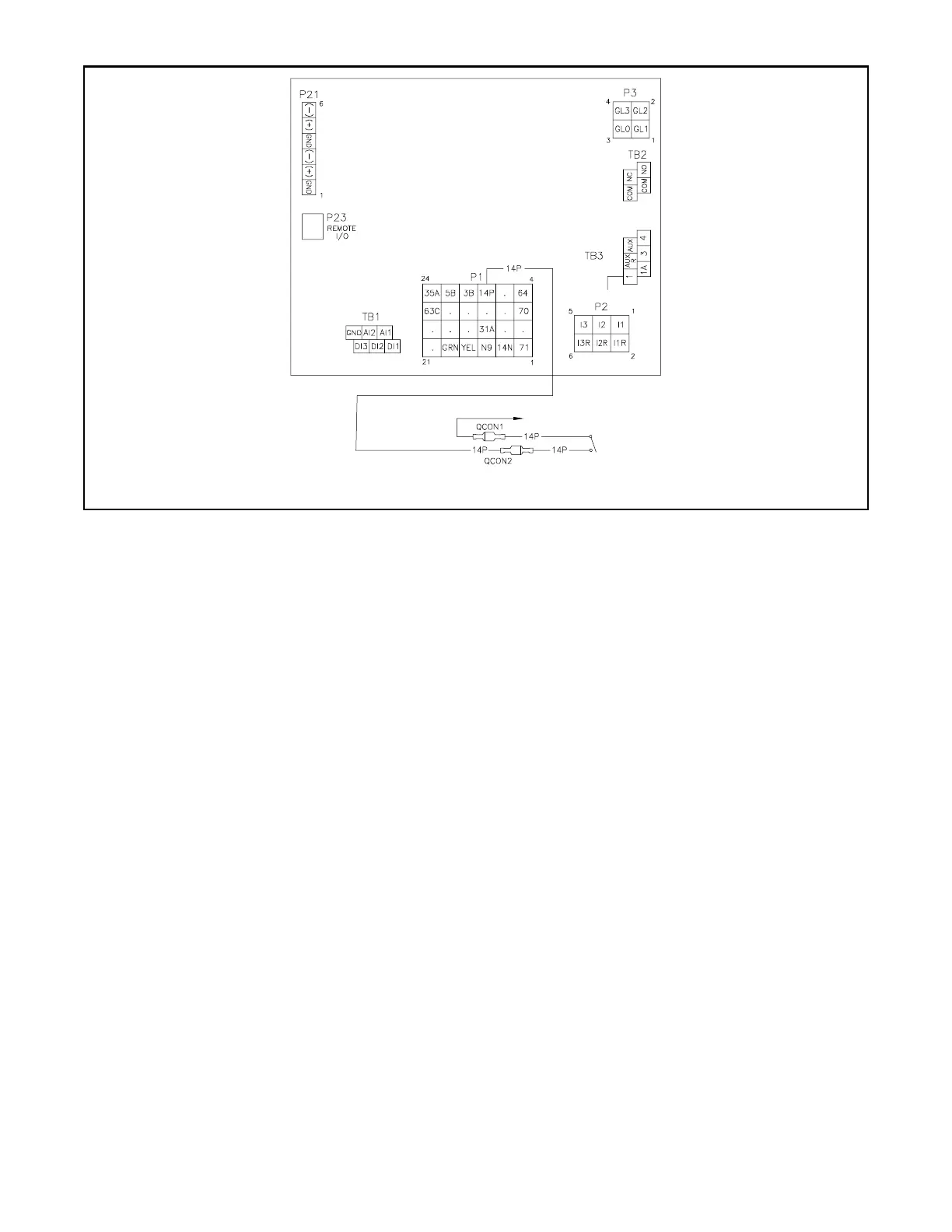

Figure 80 Prime Power Switch Connections
6.1.11 Remote Emergency Stop Kit
The emergency stop (E-stop) kit allows immediate shutdown of the generator set from a remote location. If the emergency stop
switch is activated, the EMERGENCY STOP lamp lights and the unit shuts down immediately, bypassing the engine cooldown
cycle. Before attempting to restart the generator set, reset the emergency stop switch and reset the generator set by pressing
and holding the OFF/RESET button for 3 seconds.
Two emergency stop kits are available. See Figure 81 and the following instructions.
Prime
Power
Switch
To Engine Harness
APM402 / DEC 3000 Controller
Toggle switch shown in the
prime power mode off
position (contacts open)

Kohler KG150 Specifications

General

Brand	Kohler
Model	KG150
Category	Portable Generator
Language	English
