SECTION 4
FUEL
SYSTEM AND GOVERNOR
OPTIONAL
THROTTLE AND CHOKE CONTROL
Some Series II Engines are equipped with throttle
and choke controls mounted to the intake manifold.
Truss Head Nylock Screw ~Spring Washer
"'-..,.i Locking Tab
Throttle Lever ~/
~
Gp.-;1---?'
Carburetor
Throttle Stop
Plate ---"""'t"'-"'-
Intake Manifold
Hex Head/Thread
Hex Washer Head Screw
High Speed Stop
Throttle Control Lever
THROTTLE CONTROL ASSEMBLY
CHOKE CONTROL ASSEMBLY

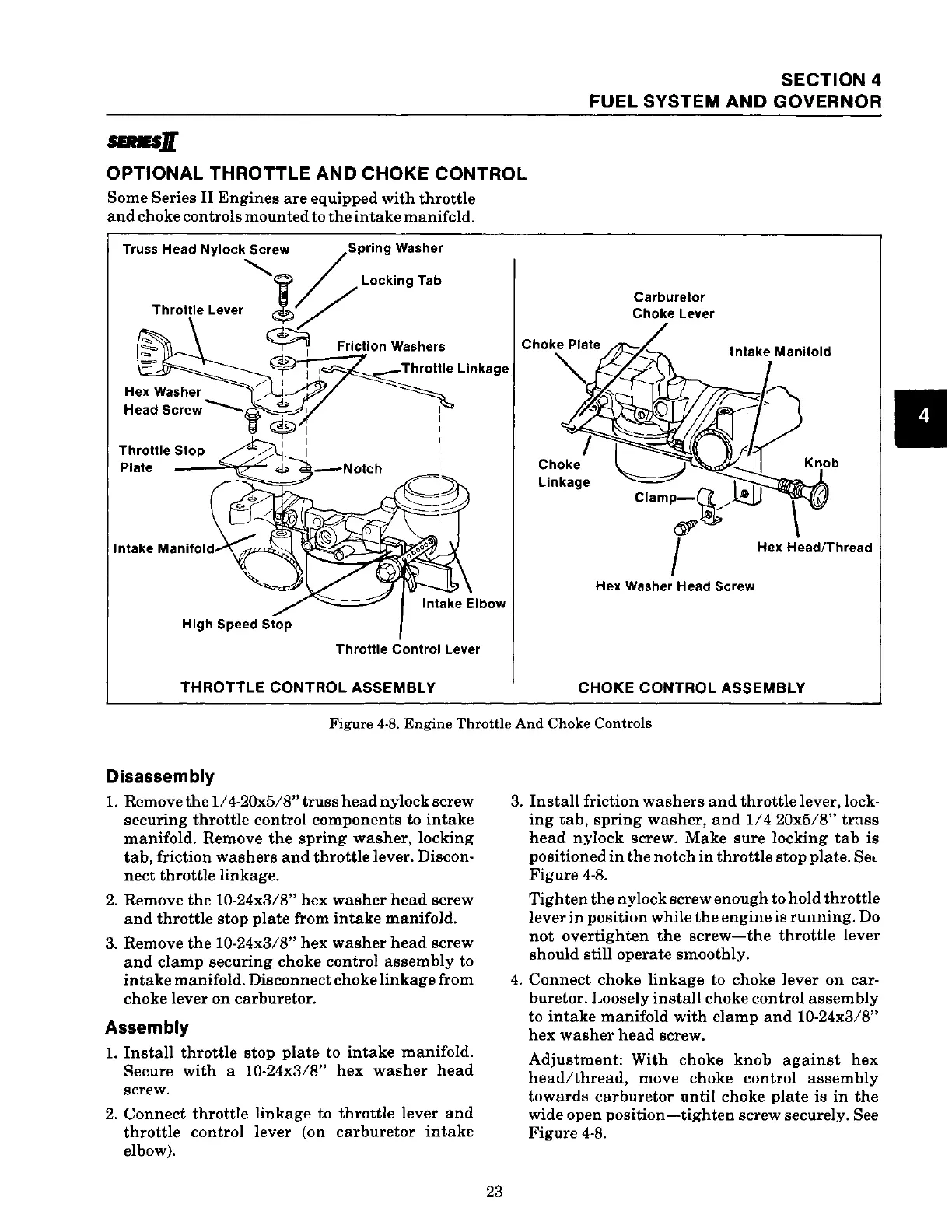

Figure 4·8. Engine Throttle And Choke Controls
Disassembly
1. Remove the 1/ 4-20x5/8" truss head nylock screw
securing throttle control components to intake
manifold. Remove the spring washer, locking
tab, friction washers and throttle lever. Discon-
nect throttle linkage.
2. Remove the 10-24x3/8" hex washer head screw
and throttle stop plate from intake manifold.
3. Remove the 10-24x3/8" hex washer head screw
and clamp securing choke control assembly to
intake manifold. Disconnect choke linkage from
choke lever on carburetor.
Assembly
1. Install throttle stop plate to intake manifold.
Secure with a 10-24x3/8" hex washer head
screw.
2. Connect throttle linkage to throttle lever and
throttle control lever (on carburetor intake
elbow).
23
3. Install friction washers and throttle lever, lock-
ing tab, spring washer, and 1/ 4-20x5/8" truss
head nylock screw. Make sure locking tab is
positioned in the notch in throttle stop plate. Sec
Figure 4-8.
Tighten the nylock screw enough to hold throttle
lever in position while the engine is running. Do
not overtighten the screw-the throttle lever
should still operate smoothly.
4. Connect choke linkage to choke lever on car-
buretor. Loosely install choke control assembly
to intake manifold with clamp and 10-24x3/8"
hex washer head screw.
Adjustment: With choke knob against hex
head/thread, move choke control assembly
towards carburetor until choke plate is in the
wide open position-tighten screw securely. See
Figure 4-8.
