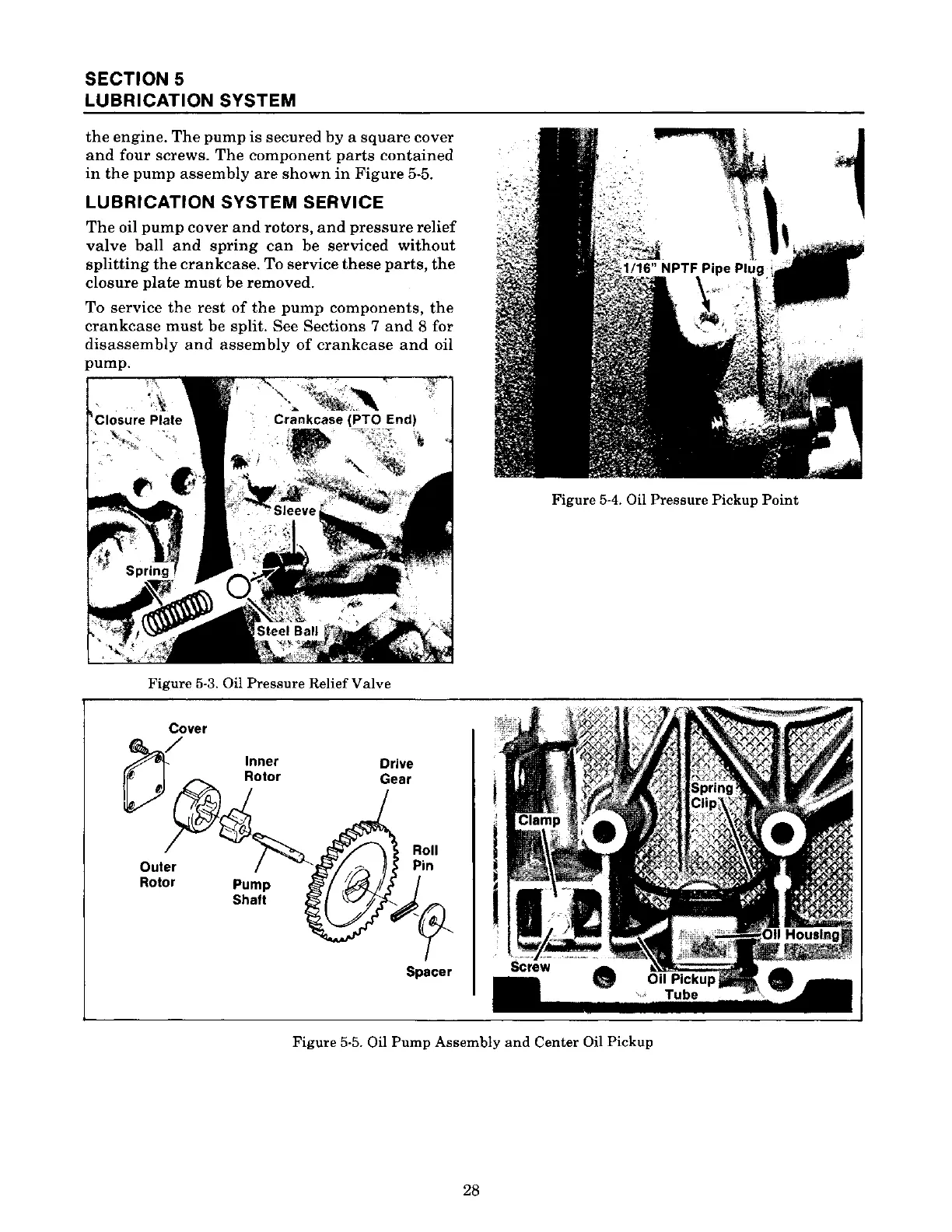

SECTION 5
LUBRICATION SYSTEM
the
engine.
The
pump
is
secured
by
a
square
cover
and
four
screws.
The
component
parts
contained
in
the
pump
assembly
are
shown
in
Figure
5-5.
LUBRICATION SYSTEM SERVICE
The
oil
pump
cover
and
rotors,
and
pressure
relief
valve
ball
and
spring
can
be
serviced
without
splitting
the
crankcase.
To service
these
parts,
the
closure
plate
must
be
removed.
To service
the
rest
of
the
pump
components,
the
crankcase
must
be split.
See
Sections
7
and
8 for
disassembly
and
assembly
of
crankcase
and
oil
pump.
Figure 5-3. Oil Pressure Relief
Valve
Outer
Rotor
Drive
Gear
Spacer
Figure
5-4.
Oil
Pressure Pickup Point
Figure
5-5.
Oil
Pump Assembly and Center
Oil
Pickup
28
