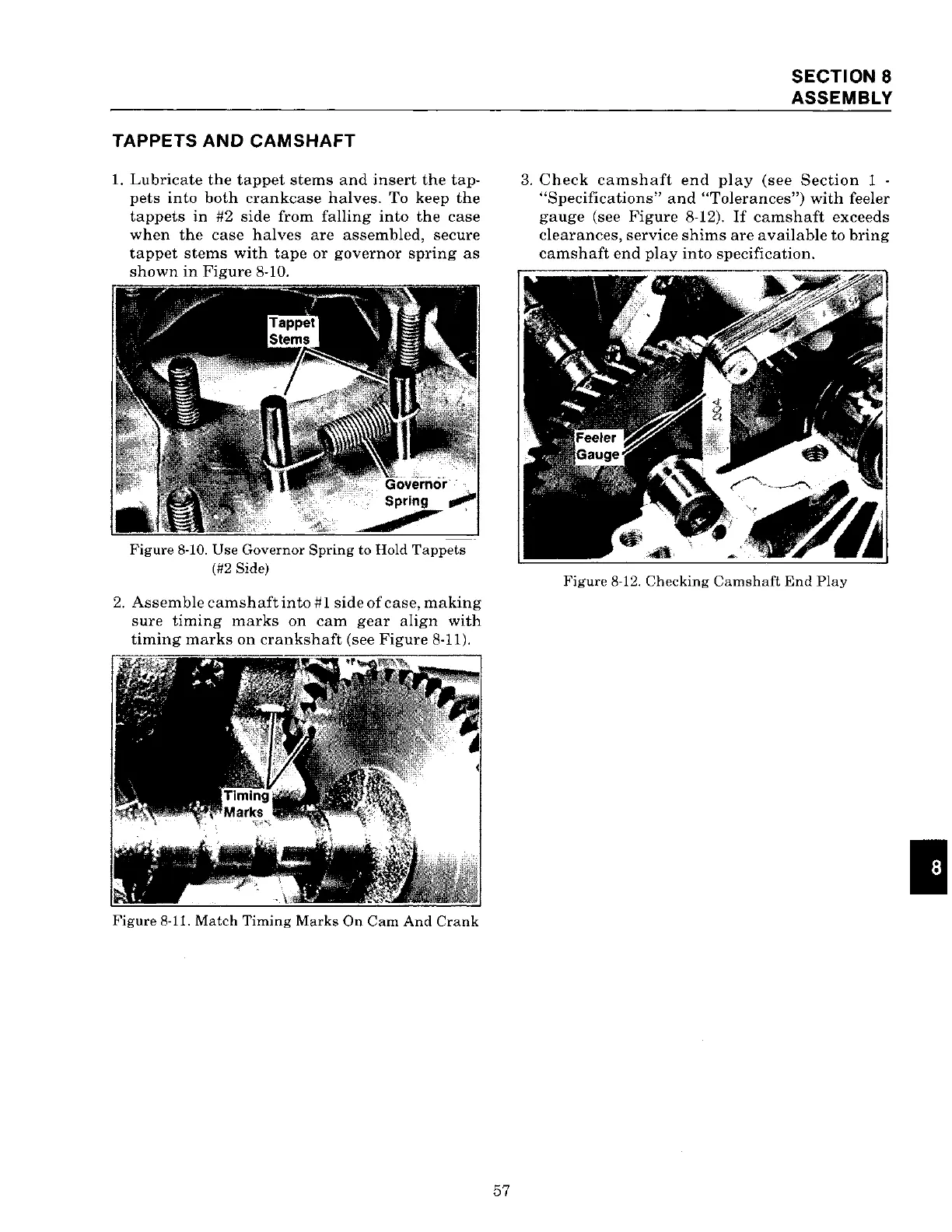

TAPPETS AND CAMSHAFT
1. Lubricate the tappet stems and insert the tap-
pets into both crankcase halves. To keep the
tappets in #2 side from falling into the case
when the case halves are assembled, secure
tappet stems with tape or governor spring as
shown in Figure 8-10.
Figure 8-10. Use Governor Spring to Hold Tappets
(#2 Side)
2. Assemble camshaft into #1 side of case, making
sure timing marks on cam gear align with
timing marks on crankshaft (see Figure 8-11).
Figure 8-11. Match Timing Marks On Cam And Crank
57
SECTION 8
ASSEMBLY
3. Check camshaft end play (see Section 1 -
"Specifications" and "Tolerances") with feeler
gauge (see Figure 8-12). If camshaft exceeds
clearances, service shims are available to bring
camshaft end play into specification.
Figure 8-12. Checking Camshaft End Play
