Specications
KohlerEngines.com 32 690 03 Rev. N

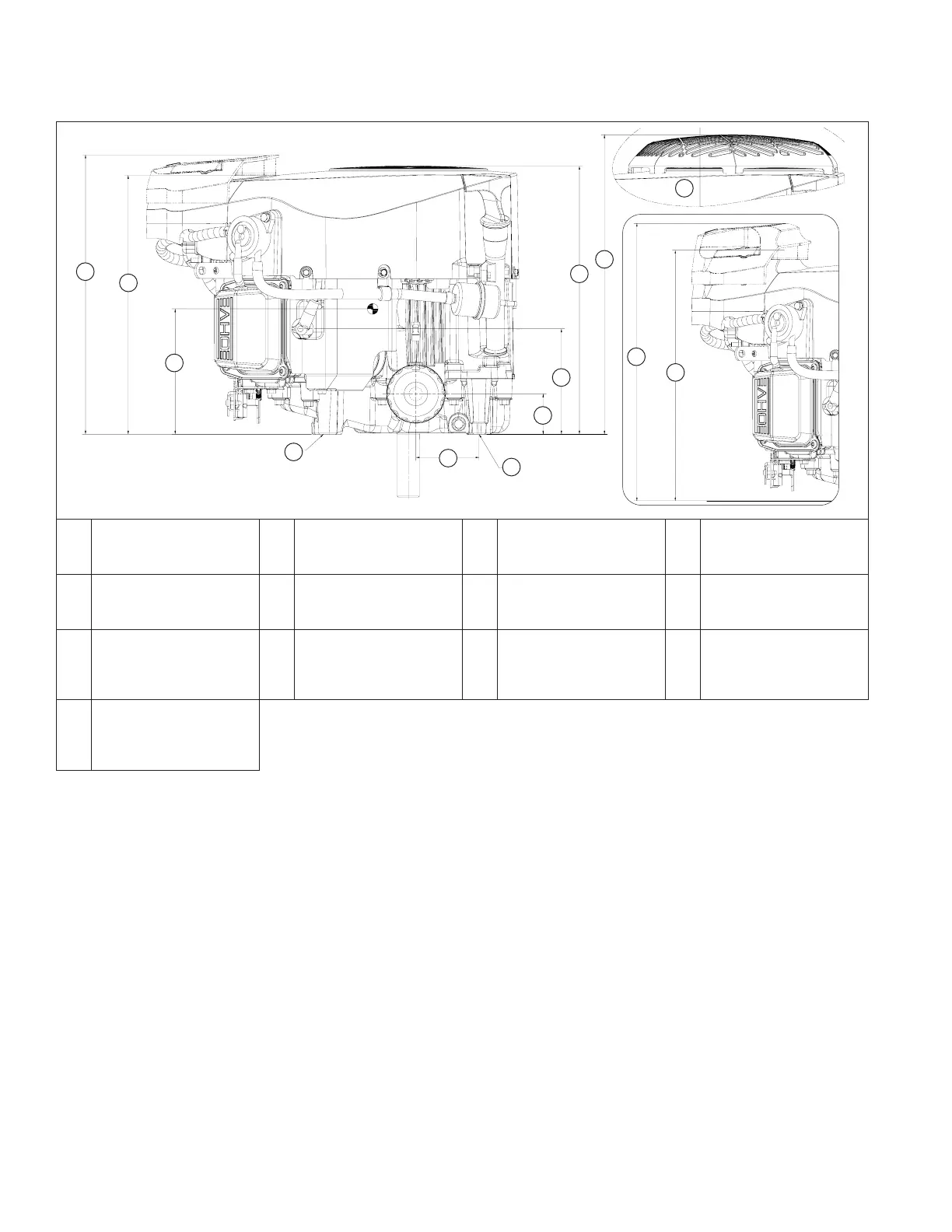

Engine Dimensions with Low Prole or High Performance Air Cleaner-Oil Filter Side
A
B
C
D
E
F
G
H
I
J
K
L
M
A
355.1 mm (13.98 in.)
Low Prole Air
Cleaner Removal
B
329.1 mm (12.96 in.)
Top of Low Prole
Air Cleaner
C
159.4 mm (6.28 in.)
Center of Gravity
D
Engine Mounting
Surface
E
80.3 mm (3.16 in.)
Oil Filter
F Mounting Hole "A" G
51.2 mm (2.02 in.)
Oil Filter
H
134.0 mm (5.28 in.)
Spark Plug Center
Line
I 340.9 mm (13.42 in.) J 380.7 mm (14.99 in.) K Optional Fixed Guard L
392.1 mm (15.44 in.)
High Performance
Air Cleaner
Removal
M
354.2 mm (13.94 in.)
Top of High
Performance Air
Cleaner
