Specifi cations
KohlerEngines.com 32 690 03 Rev. I

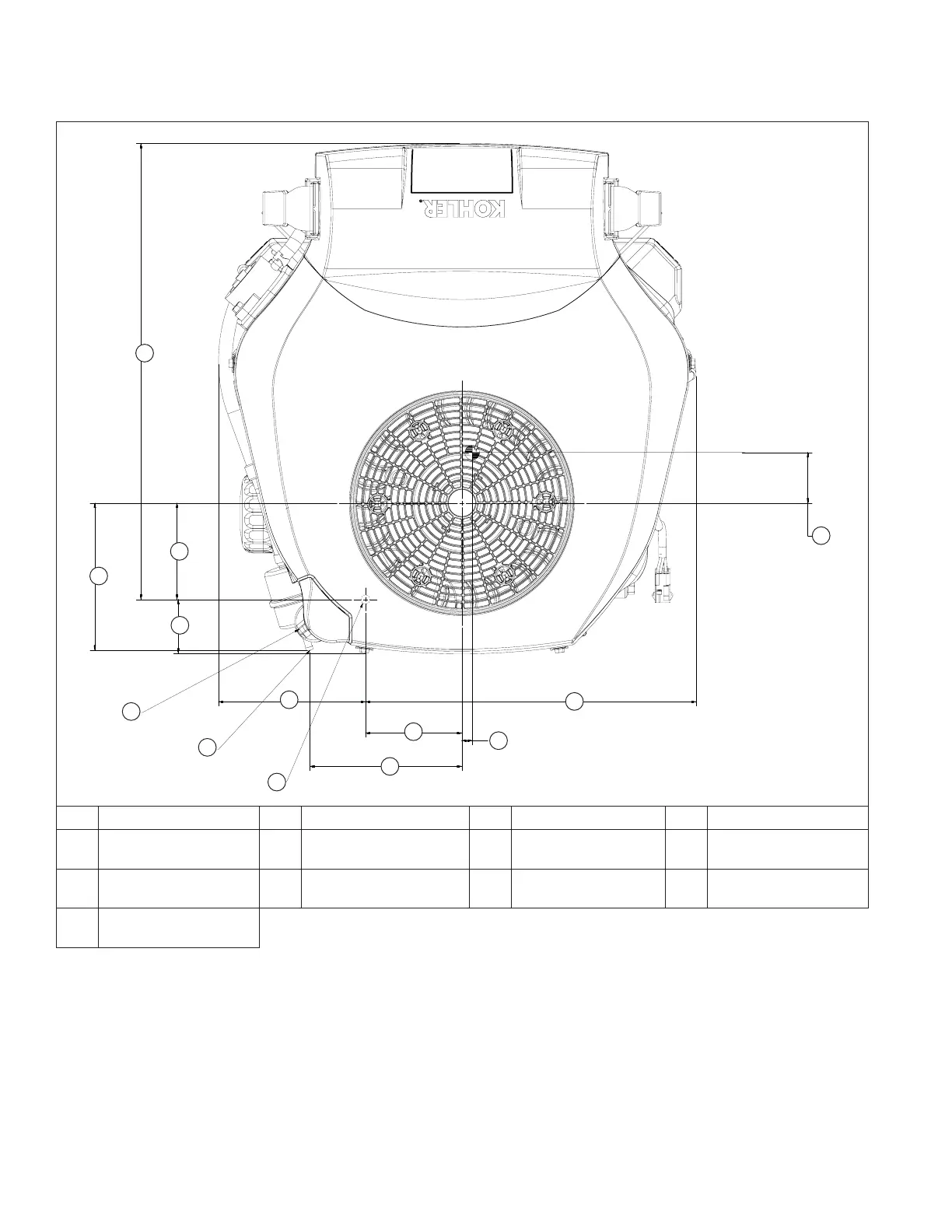

Engine Dimensions with PRO Performance Air Cleaner-Flywheel Side
F
E
G
H
I
K
A
B
D
C
J
L
M
A 424.7 mm (16.72 in.) B 136.7 mm (5.38 in.) C 89.6 mm (3.53 in.) D 50.1 mm (1.97 in.)
E
Oil Fill and Dipstick
(Yellow)
F
Fuel Line Connection
Point
G 136.9 mm (5.39 in.) H Mounting Hole "A"
I 141.5 mm (5.57 in.) J 89.7 mm (3.53 in.) K
9.7 mm (0.38 in.)
Center of Gravity
L 307.9 mm (12.12 in.)
M
47.0 mm (1.85 in.)
Center of Gravity
