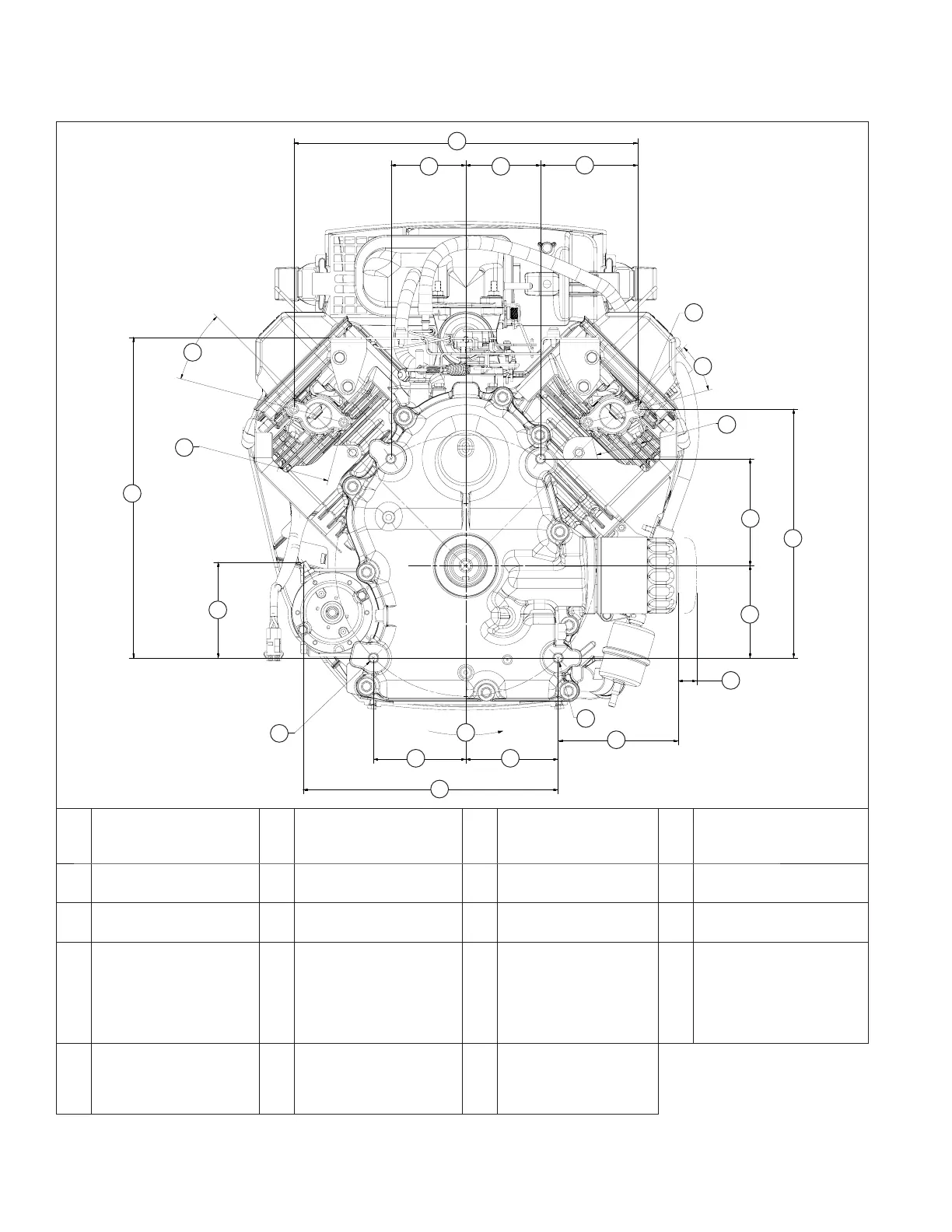

Engine Dimensions with PRO Performance Air Cleaner-Engine Mounting Surface (PTO End)
A
B B
C
E
F
G
H
I
J
L
P
N
M
O
D
S
R
K
Q
E
N
A 334.3 mm (13.16 in.) B 72.8 mm (2.87 in.) C 94.3 mm (3.71 in.) D
4 X 5/16-18 UNC-2B
in. 16.5 mm (0.649
in.) Deep No Studs
E 30° F
50.0 mm (1.97 in.)
Exhaust Port #2
G 242.1 mm (9.53 in.) H 104.0 mm (4.10 in.)
I 89.8 mm (3.54 in.) J
18.0 mm (0.71 in.)
Oil Filter Removal
K 116.8 mm (4.60 in.) L Mounting Hole "A"
M
248.1 mm (9.77 in.)
Starter Stud
N 89.8 mm (3.54 in.) O Rotation Direction P
4 X 9.005 mm
(0.355 in.) 37 mm
(1.46 in.) Deep on
a Ø
254 mm (10.0 in.)
B.C.
Q
93.1 mm (3.66 in.)
Starter Stud
R
312.0 mm (12.28 in.)
Throttle and
Choke Cable
Mounting Surface
S
50.0 mm (1.97 in.)
Exhaust Port #1
