Kohler KT745 - Engine Dimensions - PTO End

7
Specifi cations
32 690 03 Rev. I KohlerEngines.com

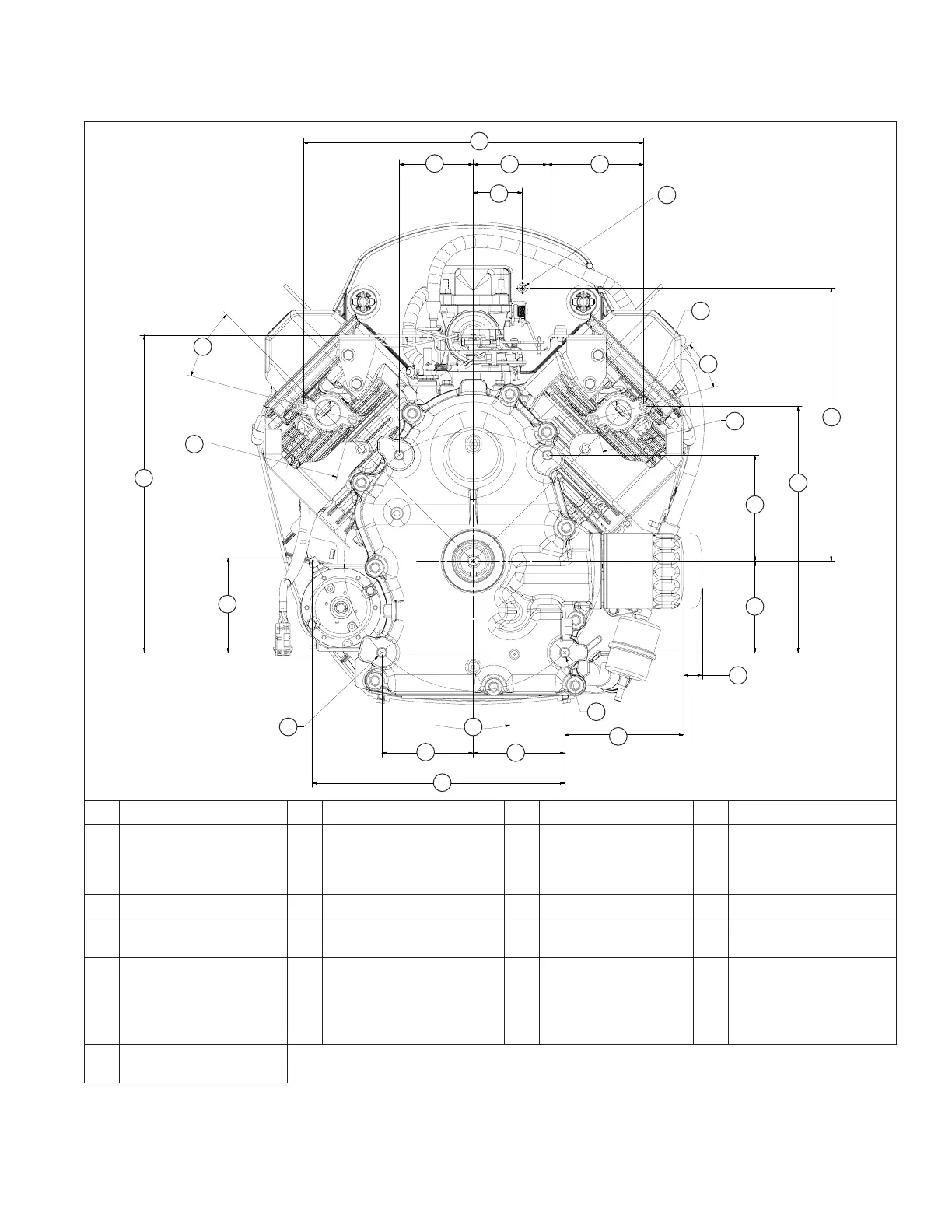

Engine Dimensions with Low Profi le or High Performance Air Cleaner-Engine Mounting Surface (PTO End)
A
B
B C
E
F
G
H
I
J
L
P
N
M
O
D
T
S
R
K
G
L
L
Q
U
A 334.3 mm (13.16 in.) B 72.8 mm (2.87 in.) C 94.3 mm (3.71 in.) D 48.1 mm (1.89 in.)
E
Evap Connection
Point
F
4 X 5/16-18
UNC-2B in.
16.5 mm (0.649 in.)
Deep No Studs
G 30° H
50.0 mm (1.97 in.)
Exhaust Port #2
I 268.3 mm (10.56 in.) J 104.0 mm (4.10 in.) K 242.1 mm (9.53 in.) L 89.8 mm (3.54 in.)
M
18.0 mm (0.71 in.)
Oil Filter Removal
N 116.8 mm (4.60 in.) O Mounting Hole "A" P Rotation Direction
Q
248.1 mm (9.77 in.)
Starter Stud
R
4 X 9.005 mm (0.355
in.) 37.0 mm (1.46
in.) Deep on a Ø
254.0 mm (10.0 in.)
B.C.
S
93.1 mm (3.66 in.)
Starter Stud
T
312.0 mm (12.28 in.)
Throttle and Choke
Cable Mounting
Surface
U
50.0 mm (1.97 in.)
Exhaust Port #1
