Section 5
Relay Controller
5-I. DESCRIPTION
All generator set functions are dependent upon the control-
ler. See Figure 5-l for parts identification. For operation
instructions refer to Section 2. The controller includes a
keyed connector for installing a remote switch and hour-
meter panel. This optional remote switch allows the oper-
ator to start and stop the generator set from another loca-
tion in the vehicle. The hourmeter records the hours of
generator set operation (Figure 5-2). The controller can be
removed by removing the two snap connectors and two
capscrews underneath the controller. This section covers
sequence of operation, and fuse, diode, and relay replace-
ment.
5-2. SEQUENCE OF OPERATION
The Relay Controller is the controlling point for generator
set operation. The following is the sequence of operations
controlled by the Relay Controller. See Figures 5-3
through 5-7.
.
REMOTE CONTROL
/
WIRING HARNESS
CONNECTOR
PLUG
IGNITION RELAY
REI
3CR
DIODE INTERLOCK RELAY

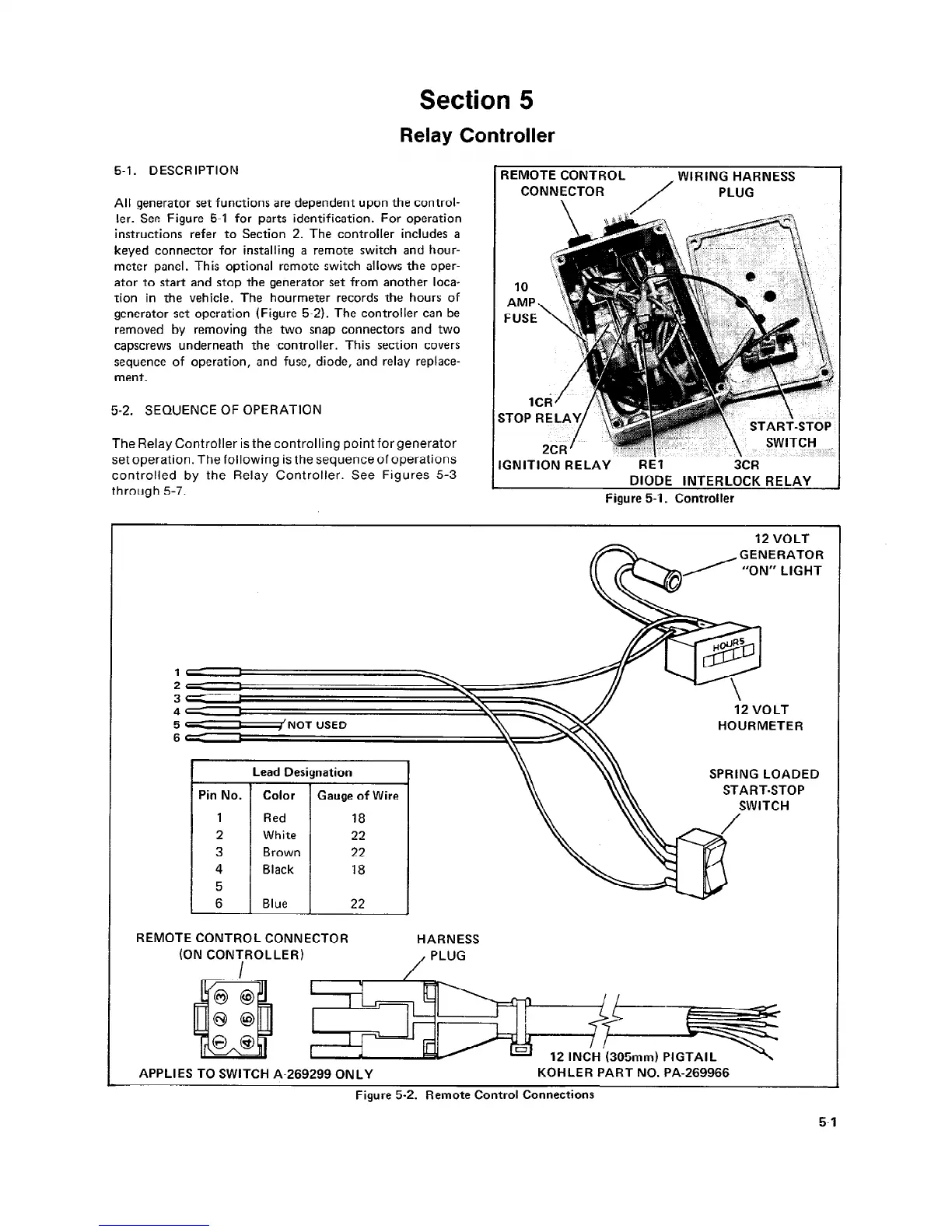

Figure 5-1. Controller
12 VOLT
GENERATOR
“ON” LIGHT
12 VOLT
HOURMETER
Lead Designation
. .
Pin No. Color Gauge of Wire
1 Red
18
2 White
22
3 Brown
22
4 Black
18
5
6 Blue
22
REMOTE CONTROL CONNECTOR
(ON CONTROLLER)
HARNESS
/
PLUG
SPRING LOADED
START-STOP
APPLIES TO SWITCH A-269299 ONLY
KOHLER PART NO. PA-269966
Figure 5-2. Remote Control Connections
