Kohler PRO 5.2

Electrical System
12
37 690 01 Rev. --KohlerPower.com

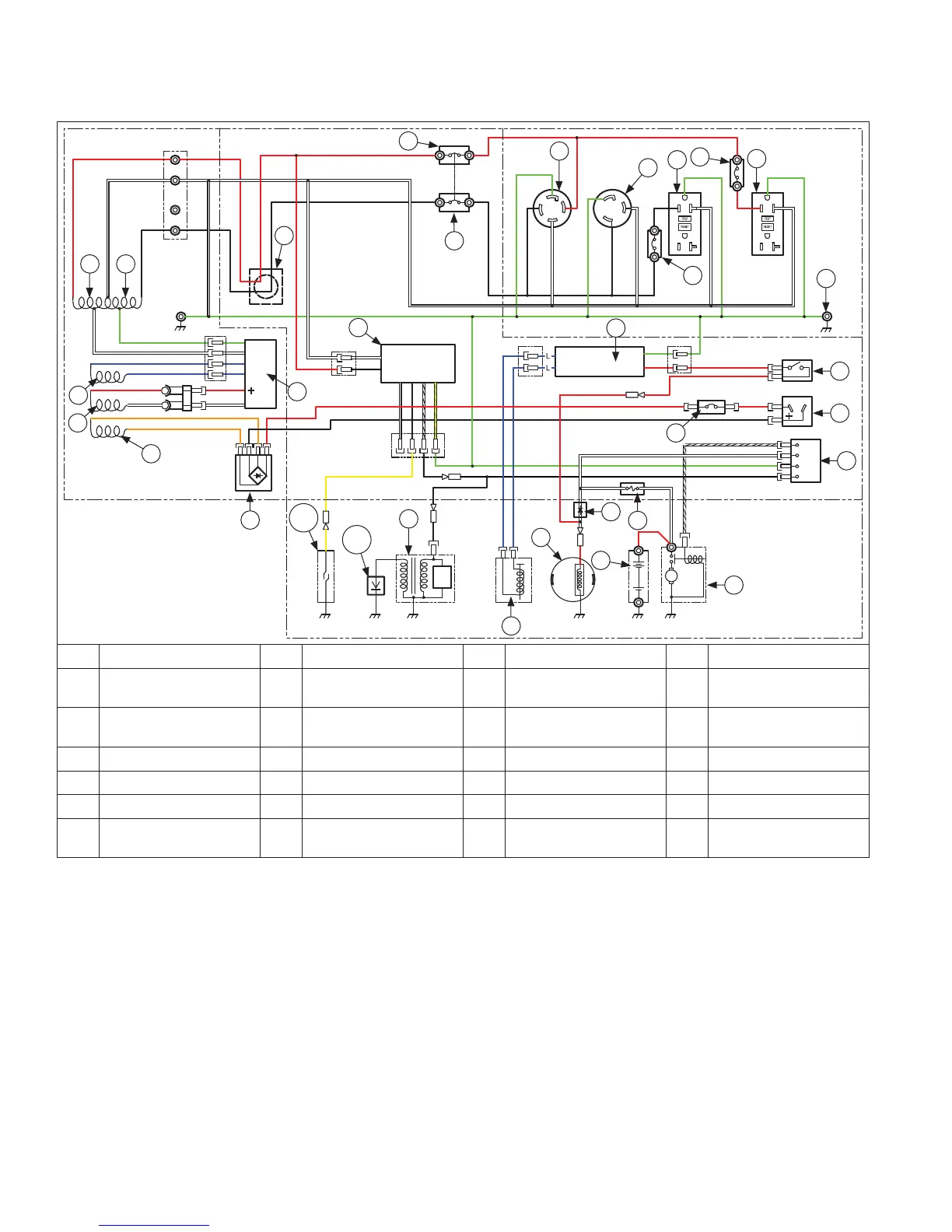

PRO 7.5 E Wiring Diagram
Y
Z
G
K
C
H
I
J
G
S
J
L
P
BA
T
Q
E
K
D
F
M
N
O
R
X
W
V
U
L
AA
AB
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E DC Winding F Auto Idle Coil G Circuit Breaker H
240/120V/30A
Electrical Socket
I
120V/30A
Electrical Socket
J GFCI Receptacle K Circuit Protector 20A L Ground Terminal
M Auto Throttle Switch N 12V DC Receptacle O On/Off/Start Switch P Auto Idle Module
Q Maintenance Minder R AVR S Rectifi er T Starter Motor
U Battery Fuse V Diode W 12 Volt Battery X Stator
Y
Electronic Throttle
Control
Z Ignition Coil AA Spark Plug AB Oil Sentry
™
