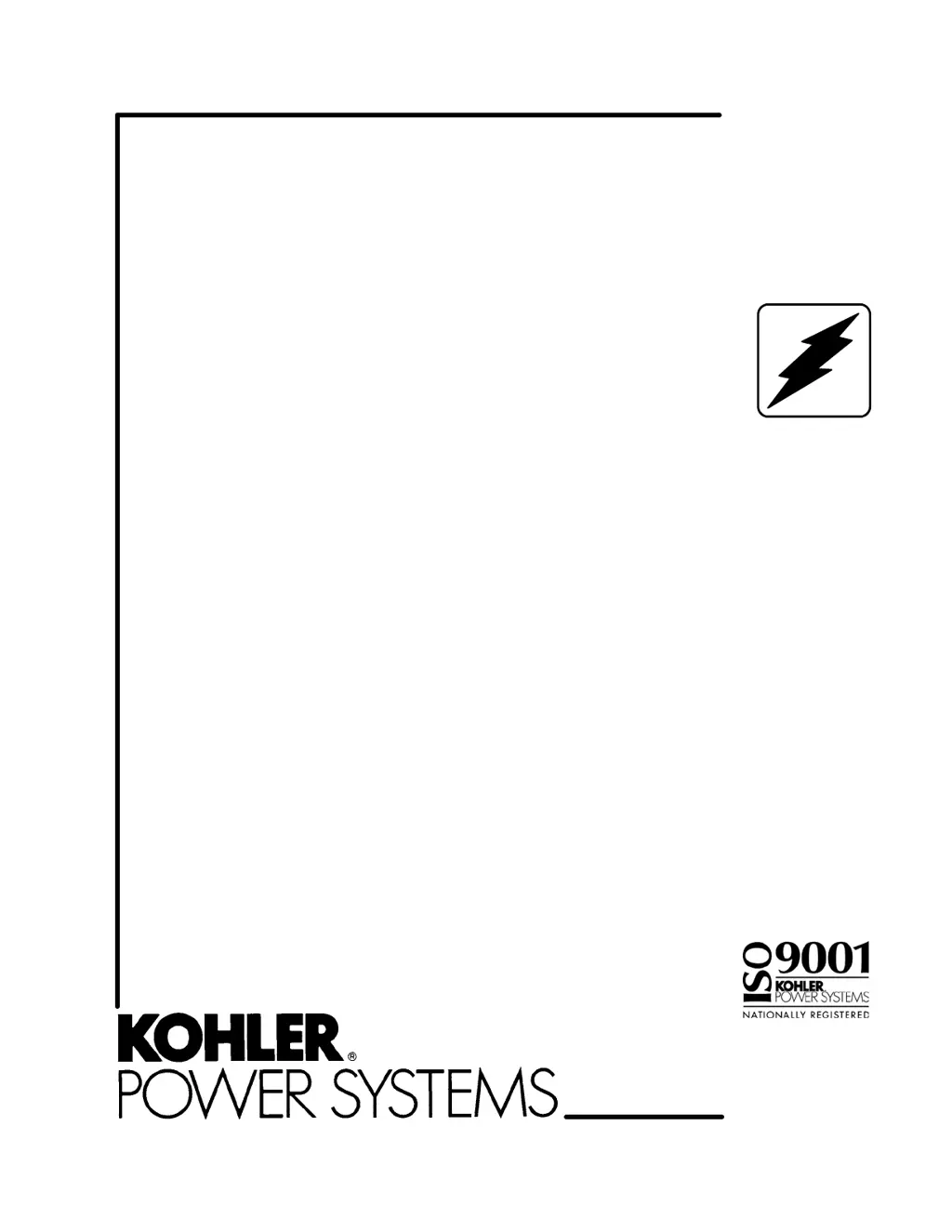

Kohler 8.5RMY - Service Manual

Other manuals for Kohler 8.5RMY

Operation And Installation Guide52 pages

Questions and Answers

D
Daniel LeonAug 15, 2025
What to do if my Kohler Portable Generator cranks but does not start?
- C
  Charles HutchinsonAug 15, 2025
  If your Kohler Portable Generator cranks but doesn't start, there might be several reasons: * The fuel valve might be off, so turn it on. * The air cleaner could be clogged, requiring cleaning or replacement. * The ignition system might be defective, needing testing or component replacement. * A voltage regulator fuse could be blown, requiring a fuse replacement. If the fuse blows again, check the generator components. * A controller fuse could be blown, requiring a fuse replacement. If the fuse blows again, check the circuit and components. * There may be an open wiring terminal or pin, so check continuity. * The overspeed setting on the electronic governor board might be too low; in this case, readjust the overspeed on the governor board.
B
brianhooverAug 21, 2025
Why does my Kohler Portable Generator start but then shut down?
- R
  Rebekah HollowayAug 21, 2025
  If your Kohler Portable Generator starts but shuts down, it could be due to: * Low oil pressure (LOP) shutdown. Correct the cause of the shutdown by checking the oil level and oil pump. * No generator output voltage. Check the AC voltage, separately excite the unit, and check stator continuity. * A blown voltage regulator fuse. Replace the fuse.
H
hudsonkimberlyAug 28, 2025
Why does my Kohler 8.5RMY Portable Generator lack power?
- P
  pshawAug 28, 2025
  If your Kohler Portable Generator lacks power, consider the following: * Air intake restriction: Check the air cleaner and air intake. * Generator overloaded: Reduce the load. * Faulty spark plug(s): Replace and regap the plug(s). * Faulty spark plug wire(s): Replace the spark plug wires. * Engine not running at rated rpm: Adjust the governor. * Governor defective or misadjusted: Test or readjust the governor. * Incorrect cooling: Inspect the cooling system for obstructions. * Defective ignition system: Test or replace. * Insufficient fuel pressure: Check the fuel pressure at the carburetor outlet. * Fuel line restriction: Check the fuel pipe size. * Defective fuel regulator: Check the function of the fuel regulator.
T
Thomas PattersonAug 31, 2025
Why is my Kohler Portable Generator so hard to start?
- R
  Ryan SmithAug 31, 2025
  If your Kohler Portable Generator starts hard, the following could be the reasons: * The air cleaner might be clogged; replace the element. * The fuel mixture adjustment might be incorrect; adjust the fuel valve. * There might be faulty spark plug(s); replace and regap the spark plug(s). * There might be defective ignition components (spark control or ignition module); test or replace the ignition components. * Worn piston rings or valves could be the issue; check compression. * There might be insufficient fuel pressure; check the fuel pressure. * There might be defective spark plug(s); replace the spark plugs. * There might be defective spark plug wire(s); replace the spark plug wires.
S
Samantha LongSep 4, 2025
What causes my Kohler 8.5RMY to overheat?
- H
  Heather DavisSep 4, 2025
  If your Kohler Portable Generator is overheating, check these potential causes: * Incorrect cooling: Inspect the cooling system for obstructions. * Air cleaner clogged: Replace the element. * Fuel mixture adjustment incorrect: Readjust the fuel mixture.
J
John WilliamsSep 7, 2025
Why is my Kohler 8.5RMY Portable Generator operating erratically?
- H
  Hannah JordanSep 7, 2025
  If your Kohler Portable Generator is operating erratically, consider these potential causes: * Air cleaner clogged: Replace the element. * Faulty spark plug(s): Replace and regap the plugs. * Fuel mixture adjustment incorrect: Check and/or adjust. * Governor adjustment incorrect: Adjust the electronic governor. * Carbon buildup in engine: Clean the cylinder head. * Engine valves not seating correctly: Inspect the valves and valve seats. * Defective ignition system: Test and/or replace components. * Defective spark plug wire(s): Replace the spark plug wires. * Incorrect cooling (hot engine only): Inspect the air inlet and outlet. * Fuel line restriction: Check the fuel lines. * Carburetor adjustment incorrect: Adjust the carburetor.
H
Heather RichSep 12, 2025
What makes my Kohler 8.5RMY Portable Generator so noisy?
- D
  dwatkinsSep 12, 2025
  If your Kohler Portable Generator is noisy, check the following: * Exhaust system leaks: Check and replace as necessary. * Engine not running smoothly: See “Generator set operates erratically,” in the manual. * Broken or damaged vibromount(s): Check and replace as necessary. * Loose or vibrating sheet metal/housing: Retighten screws, replace rivets. * Exhaust piping or air inlets/outlets not securely installed: Inspect for loose parts and secure if necessary. * Excessive engine/generator vibration: Check the rotor, crankshaft, bearing, etc. (disassembly of the engine and/or alternator may be required).
G
Gary FitzgeraldNov 17, 2025
How to troubleshoot a Kohler 8.5RMY that does not crank?
- L
  Linda MillerNov 17, 2025
  If your Kohler Portable Generator doesn't crank, it could be due to: * A weak or dead battery, which needs recharging or replacement. * Reversed or poor battery connections, so check the connections. * A defective starter relay, check the continuity of the circuit. * A defective starter, which may need rebuilding or replacement. * A defective controller start/stop switch, test the function of the switch. * A blown fuse in the controller, replace the fuse; if it blows again, check the circuit and components. * An open circuit in the wiring, terminals pin, circuit board, etc., check the continuity. * A defective controller circuit board, check the circuit board operation. * An overcrank shutdown, check the engine fuel and ignition systems. Shutdown occurs after 30 seconds ...
C
Charles WilliamsNov 24, 2025
What causes my Kohler 8.5RMY to stop suddenly?
- S
  stephenslindseyNov 24, 2025
  If your Kohler Portable Generator stops suddenly, consider these potential causes: * No fuel: Turn on the fuel supply. * Fuel line restriction: Inspect the fuel lines. * Fuel lines too long: Check the fuel line length. * Air cleaner clogged: Replace the element. * Fuse blown in the controller: Replace the fuse. * Faulty spark plug(s): Replace and regap the plug(s). * Engine overheated (hot engine only): Check the air intake, fuel adjustment, oil level, and air inlet/outlet. * Overspeed shutdown: Check the electronic governor and voltage regulator. * Low oil pressure (LOP) shutdown: Check the engine oil level, oil pressure, and oil pump. * Defective low oil pressure (LOP) shutdown switch: Attempt startup. If the unit shuts down, remove the lead from the LOP switch and r...

Summary

Service and Industrial Generator Sets

Safety Precautions and Instructions

Accidental Starting Hazards

Warnings and procedures to prevent unintentional generator set startup.

Battery Hazards

Safety information regarding sulfuric acid, battery gases, and explosion risks.

Engine Fire and Backfire Hazards

Precautions against fire and backfire risks related to engine operation.

Exhaust System Hazards

Information on carbon monoxide risks and exhaust system integrity.

Fuel System Hazards

Warnings about explosive fuel vapors and safe fuel handling practices.

Hazardous Noise and Voltage

Safety guidelines for noise exposure and electrical shock prevention.

Hot Parts and Moving Parts Safety

Precautions when working near hot engine components and moving parts.

Section 1 Specifications

Section 2 Scheduled Maintenance

Service Schedule Overview

Lubrication System Maintenance

Section 3 Troubleshooting

General Troubleshooting Chart

A quick reference guide for common generator set problems, causes, and solutions.

Section 4 Controller Troubleshooting

4.1 Relay Controller

Troubleshooting procedures for generator sets equipped with relay controllers.

4.2 Sequence of Operation

4.3 Controller Circuit Board

Section 5 Generator;Relay Controller Troubleshooting

Section 6 Component Testing and Adjustment

6.2 Generator Troubleshooting

Flowchart and procedures for diagnosing no or low AC output issues.

6.3 Voltage Regulator

Details on the Power-Boost IIIE voltage regulator and its testing/adjustment.

6.8 Fault Shutdown Test Procedure

Tests for generator set overspeed, overcrank, and low oil pressure shutdowns.

6.9 Electronic Governor

Details on electronic governor operation, checks, and adjustments.

Section 7 Generator Reconnection

7.1 Voltage Reconnection

Section 8 Disassembly;Reassembly

8.1 Disassembly Procedures

Instructions for safely disassembling the generator set alternator.

8.2 Reassembly Procedures

Kohler 8.5RMY Specifications

General

Model	8.5RMY
Type	Portable Generator
Fuel Type	Gasoline
Starting System	Electric Start
Displacement	429 cc
Noise Level	72 dB
AC Output	120/240V
Starting Watts	8500 W
Running Watts	6800 W
Rated Wattage	6800 W
Weight	200 lbs
Engine Type	4-Stroke OHV
Outlets	4x 120V 20A, 1 x 120/240V 30A
