Kohler PRO6.4 - Disassembly;Inspection and Service; Component Identification

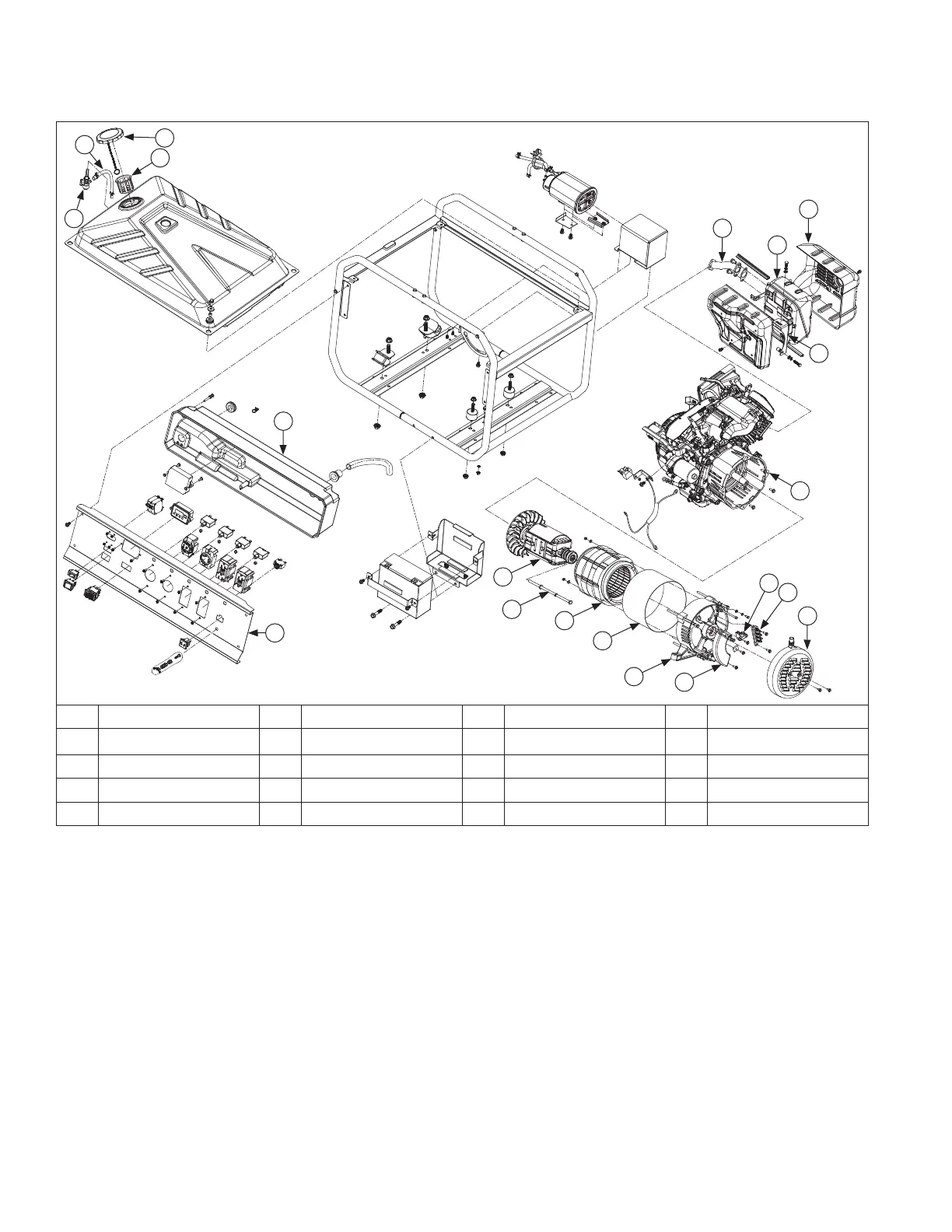

PRO6.4, PRO6.4E, PRO9.0, and PRO9.0E Components
S
T
C
E
D
F
G
H
B
I
K
J
Q
N
O
P
A
R
L
M
A Control Panel B Control Box C Rotor D Through Bolt
E Stator F Stator Cover G Rear Cover H AVR
I End Cover J Wiring Board K Brush Holder L Front Cover
M Muffl er Bracket N Muffl er Cover O Muffl er P Exhaust Pipe
Q Fuel Valve R Fuel Hose S Fuel Tank Cap T Fuel Filter
Disassembly/Inspection and Service
