Figure
37

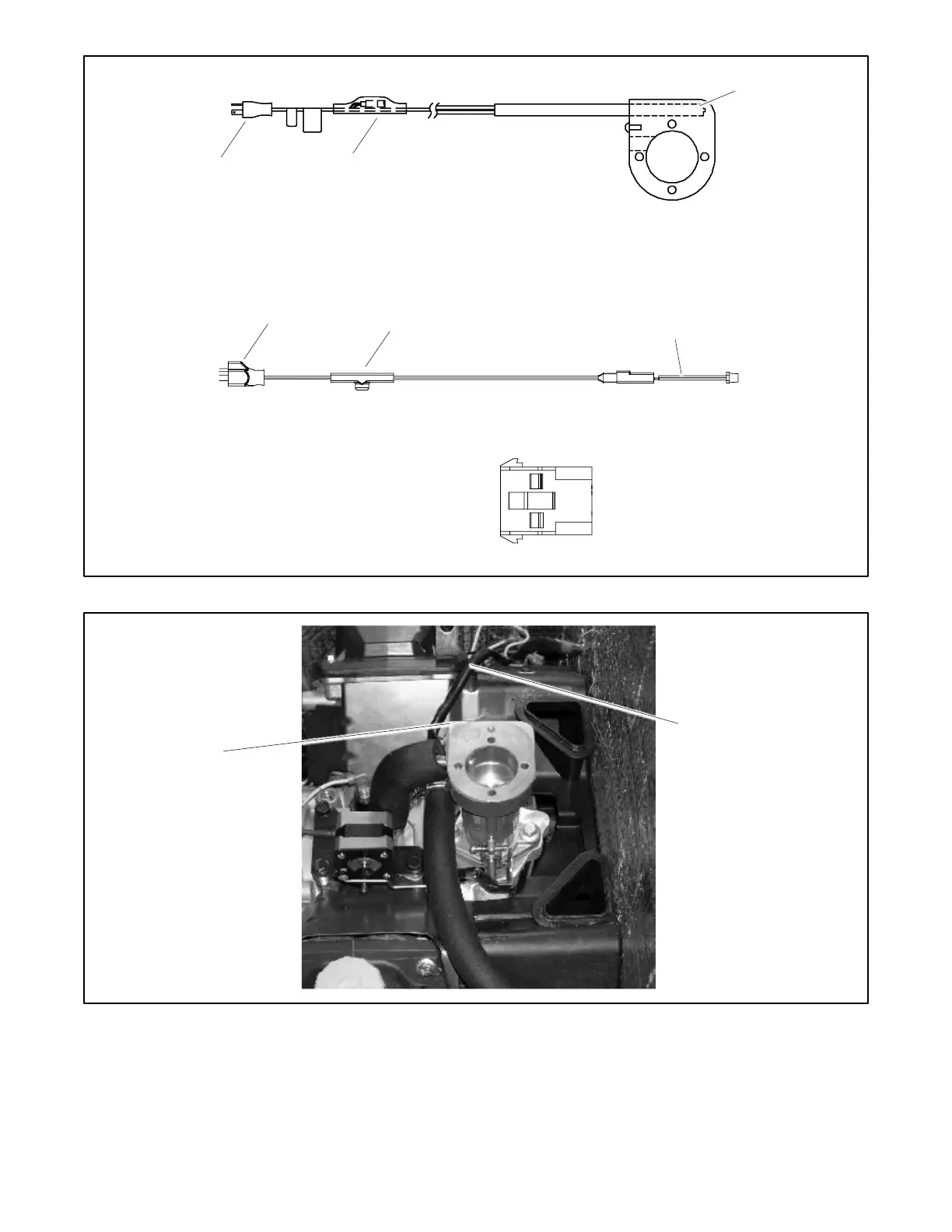

Carburetor Heaters
Figure
38
Carburetor Heater for 14 kW Models
Power plug
Heater
Carburetor Heater for 14 kW Mo
dels
Thermostat
Power plug
Thermostat
Heater
Carburetor Heater for 20 and 26
kW Models
240 Volt Plug
GM19463
GM57968
Carburetor heater
(air cleaner removed to show
heater)
Carburetor heater power cord
tp6195
47
49
Table of Contents
Table of Contents
3
Safety Precautions and Instructions
5
Introduction
11
Service Assistance
13
Location and Mounting
15
Introduction
15
Lifting
16
Generator Set Inspection
17
Location and Mounting
17
Mounting Area
17
Exhaust Requirements
18
Dimension Drawings
18
Access the Air Intake Area
19
Section 2. Fuel
21
Fuel Requirements
21
Fuel Supply
21
Fuel Pipe Size
22
Connecting the Fuel Supply
23
Fuel Conversion
24
Fuel Conversion, Original Fuel System, 14RCA/L
25
Fuel Conversion, Original Fuel System, 20RCA/L
27
Fuel Conversion, Revised Fuel System, 14/20/26RCA/L
28
Electrical
31
Electrical Connections
31
Wire Selection
31
Grounding
32
Electrical Lead Entry
33
Field Connections
34
AC Power Supply
36
Battery
37
ATS and Accessory Communication Connections
39
Communication Cable Specifications
39
Transfer Switch Connection
40
System Connections with Accessory Modules
41
Prestart
45
Prestart Installation Check
45
Set the Exerciser
46
Setting the Exerciser
46
Loaded Exercise
46
Accessories
47
Introduction
47
Carburetor Heater
47
Programmable Interface Module (PIM)
50
Oncue Plus Generator Management System
51
Load Management Devices
52
Power Relay Module
53
Powersync Automatic Paralleling Module (APM)
53
Cold Weather Package
55
Battery Heater
55
Breather Tube and Oil Heater
56
Fuel Regulator Heater (20 and 26 Kw Models Only)
58
Alternator Weather Cover
60
Oil Pressure Sensor Boot
60
Drawings and Diagrams
61
Appendix A. Abbreviations
87
