60 TP-7091 4/23
5.7.4 Alternator Weather Cover
The alternator weather cover is used to prevent frost and snow build up on the alternator brushes. The alternator weather cover
is not applicable to the 26RCA/L generator set.
Follow the instructions provided with the kit to install the alternator weather cover onto the alternator end bracket.
See Figure 59.

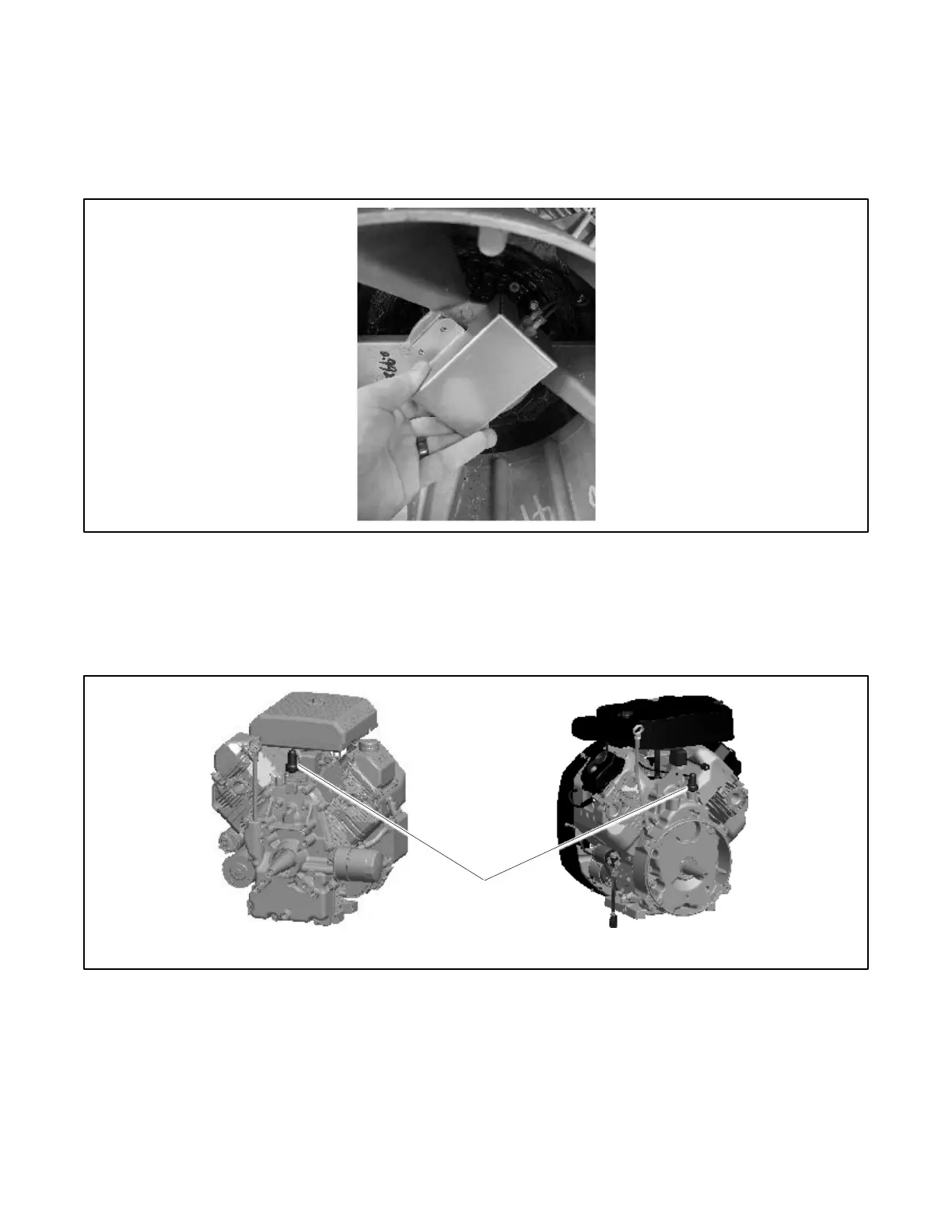

Figure 59 Alternator Weather Cover
5.7.5 Oil Pressure Sensor Boot
The oil pressure sensor boot protects the oil pressure sensor and its connection from moisture and frost buildup that can cause
false low oil level faults. Install the oil pressure sensor boot in locations where the ambient temperature drops below 0°C (32°F).
See Figure 60 for illustrations of the installed kit. Follow the instructions provided with the kit to install the boot.
Figure 60 Oil Pressure Sensor Boot Location
