Kohler RDC2 Installation

TP-7091 4/23 59

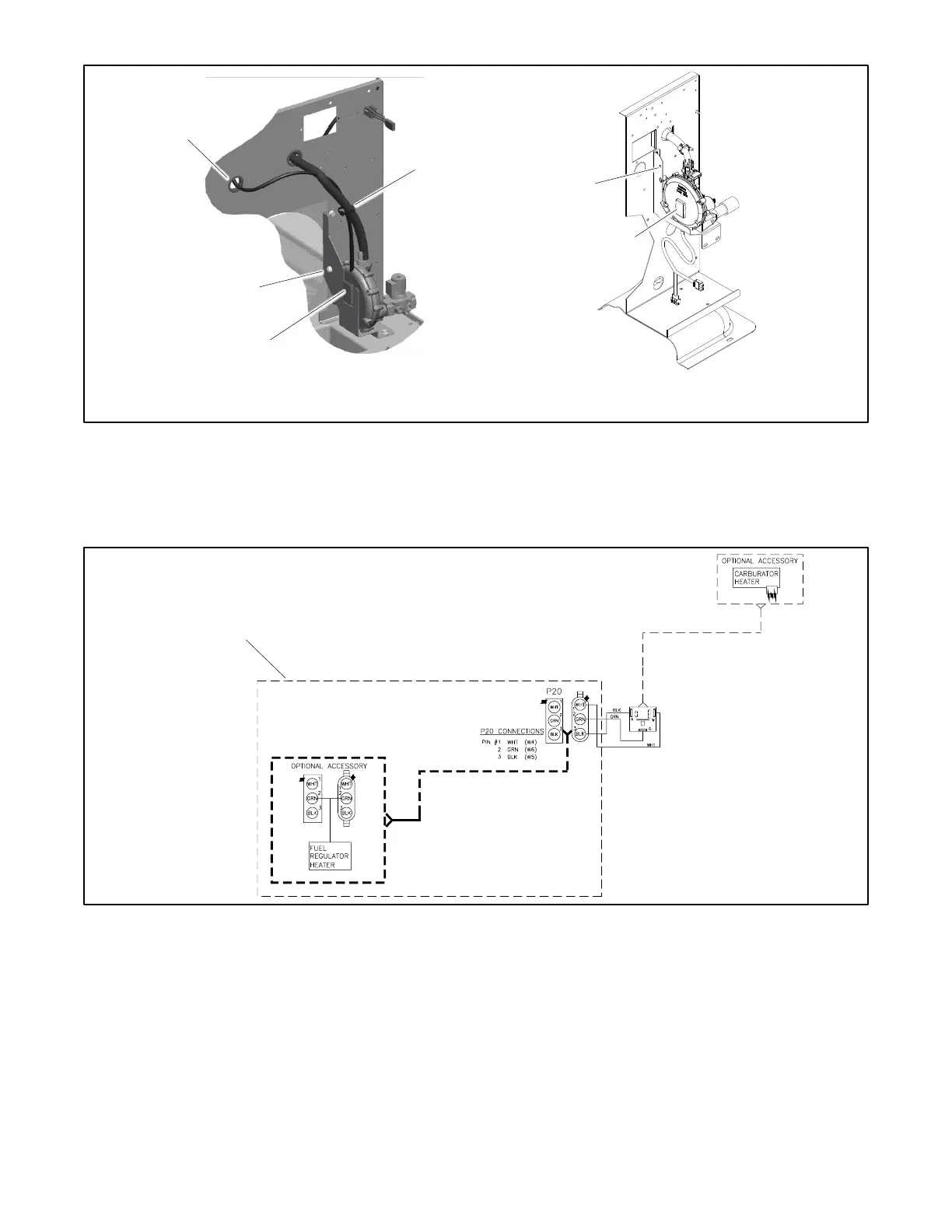

Figure 57 Fuel Regulator Heater Installation, 20RCA/L and 26RCA/L
Fuel Regulator Heater Connection (26 RCA/L Models)
1. Disconnect the receptacle harness from connector P20. See Figure 58.
2. Connect one end of the regulator heater cable to P20 and the other end to the receptacle harness.
Figure 58 Fuel Regulator Heater Connection, 26RCA/L
Bushing
Cable ties
Note:
Place spacer between regulator and mounting bracket
Screw, spacer, and
existing nut
Heater, fuel regulator
pad
20 kW Model
26 kW Model
Heater, fuel regulator
pad
Screw, spacer, and
existing nut
GM79141
Fuel regulator heater
connection
GM118674
