TP-7092 8/18 37Section 3 RDC2 Controller Operation
Overview ---->
1.2 h
Engine ---->
Metering
tp6804
Generator---->
Metering
Genset ---->
Information
Genset ---->
Run Time
D a t e -- -- >
and Time
ATS -- -- >
Configuration *
Genset ---->
System
Event Log---->
Load ---->
Control ]
PIM ---->
Status [
Network ---->
Information
Status
Displays
ATS -- -->
Status
* ATS Configuration appears only if a Model RXT transfer switch is connected.
[ PIM Status appears only if a programmable interface module is connected.
] Load Control appears only if a load management device is connected.
Press the Up and Down arrow buttons
to move between menus.
Press OFF or AUTO to exit the menus.

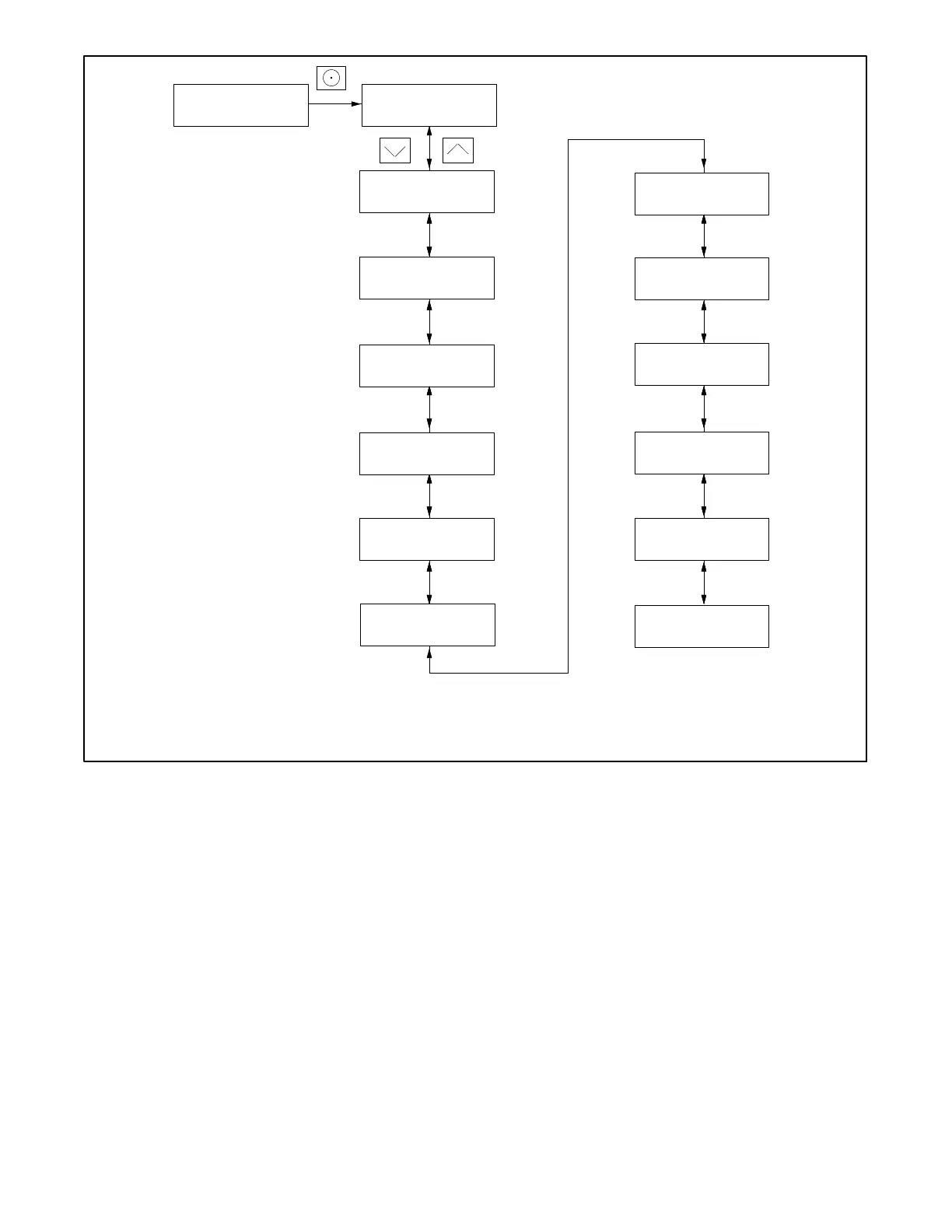

Figure 3-9 RDC2 Main Menu
To Next Page
