Kohler Co., Kohler, WI
8
113341-2-
BB
Apply a ring of plumbers putty around the underside of the
handle skirt. Thread the assembled handle and skirt to
the valve body until it contacts the finished wall.
Be sure to properly align Traditional and Lever handle
styles. Remove and rotate the spline adapter to provide
proper handle alignment.
NOTE: The stem extension allows for fine adjustment of
Traditional and Lever handle alignment. To refine the
alignment, unthread the handle and skirt, and reposition
the stem extension on the valve stem. Rethread the
handle and skirt, and check the handle alignment. Repeat
until the alignment is satisfactory.
Repeat for the other handle.

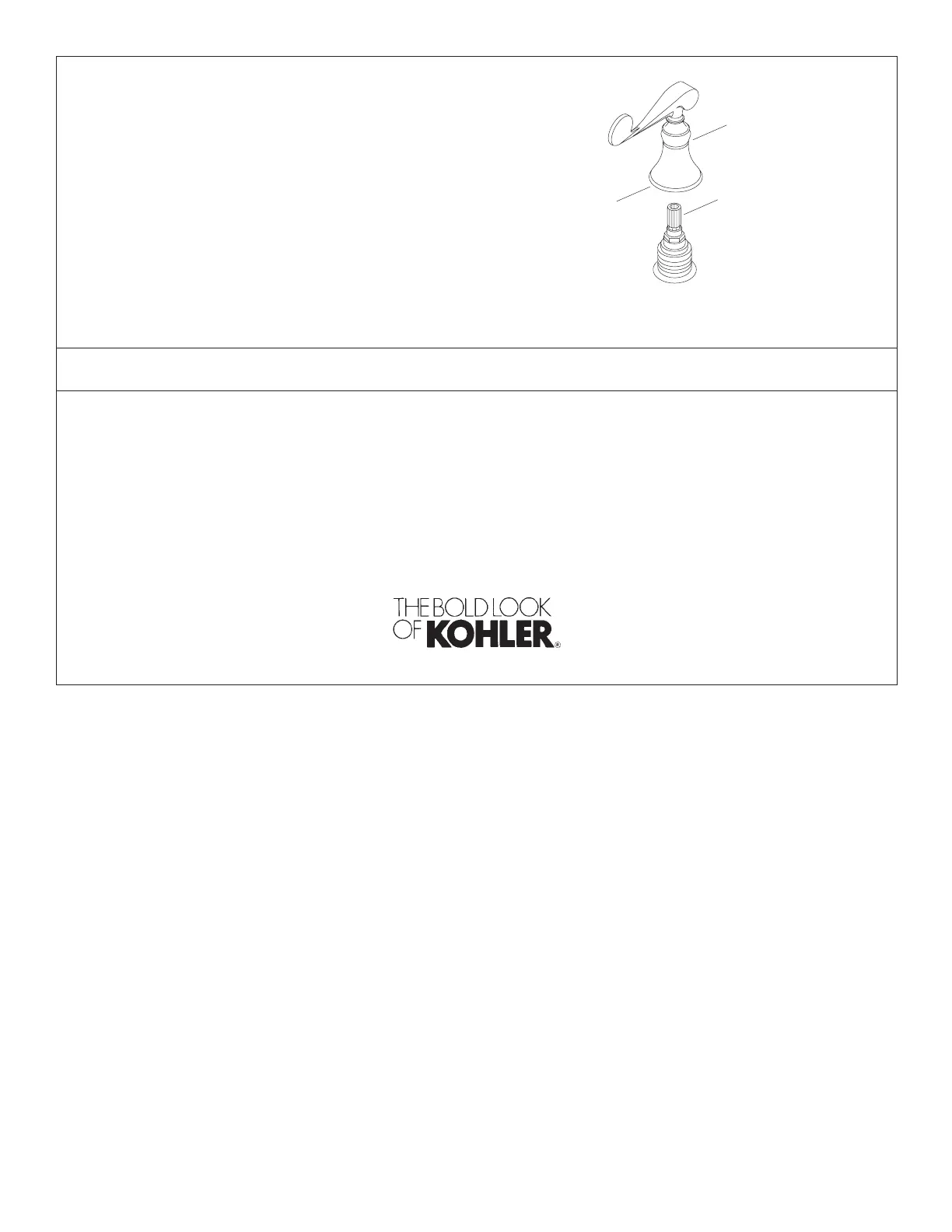

Fig. #21
Handle and Skirt
(Lever Handle
Shown)
Stem Extension
Apply Plumbers
Putty
7. CALL US FOR HELP
Questions? Problems? First review the installation instructions to ensure correct installation. For additional
assistance, call our Customer Service Department for direct help. You may also contact us at our web site listed
below.
In the U.S.A. call 1-800-4-KOHLER
In Mexico call 001-877-680-1310
In Canada call 1-800-964-5590
www.kohlerco.com
