INSTALLATION

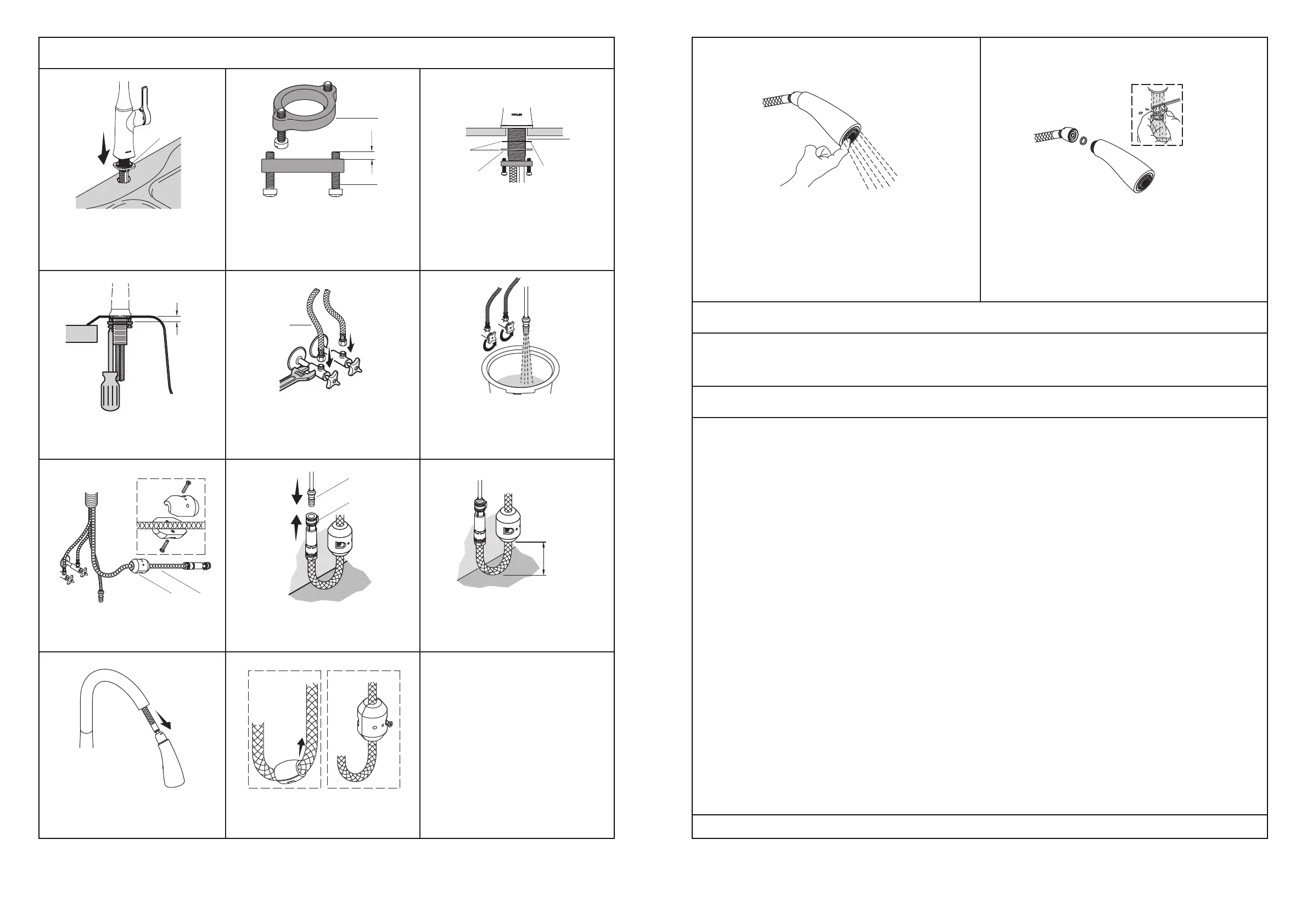

2. Partially thread the screws(2) into
the ring(3) until they extend 6mm
out the opposite side.
5. Connect and tighten the supply
hoses(6). The hose with blue mark
is connected to cold water.
3. Slide the washers(4) onto the
shank(5) and thread the ring onto
the shank.
6. Turn on the water supplies. Flush
the hot and cold water for about one
minute.
1. With the water running, rub the nozzles to dislodge
debris.
Faucet Maintenance:
2. To improve the flow, disconnect the sprayhead and
clean the screen washer. Reassemble.
1. Install the gasket(1), foam side
down. Install the faucet, the handle
is located on the right side.
4. Position the screws on the ring
onto the shank. Tighten the screws.
8. Align and connect the spray hose
to the connector.
9. Position the weight as shown
and tighten securely.
7. Loosely attach the weight(8) to
the spray hose(7).
11. Adjust the weight as needed for
proper positioning and operation.
10. Check for smooth operation.
INSTALLATION CHECKOUT
Ensure that all coupling nuts are tight. Ensure that the lever handle is in the off position. Turn on the main water
supply and drain, and check for leaks. Repair as needed.
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely
affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
"LEAD FREE" is marked on the back of the faucet signifying its compliance with the United States AB1953
6mm
6
6mm
2
3
8 7
51mm~76mm
Tab
Connector
1
Metal
Rubber
4
5
