4. Connect the Wires
Apply grease (provided) to all connection sockets located on the
circuit board inside the cover. This will provide additional
corrosion protection.
Connect the handle switch and sensor wires from the faucet to
the circuit board.
Connect the power cord to the circuit board.
Connect the solenoid wire to the circuit board.
Connect the flow sensor wire to the circuit board.
Plug the power cord into an unswitched 120 VAC outlet. The
power LED and connector status LEDs on the circuit board will
illuminate.
To test the activation of the sensor, refer to the ″Faucet Operation″
section.
Connect Your Faucet
Download the KOHLER Konnect App.
Follow the App instructions to connect to your faucet.

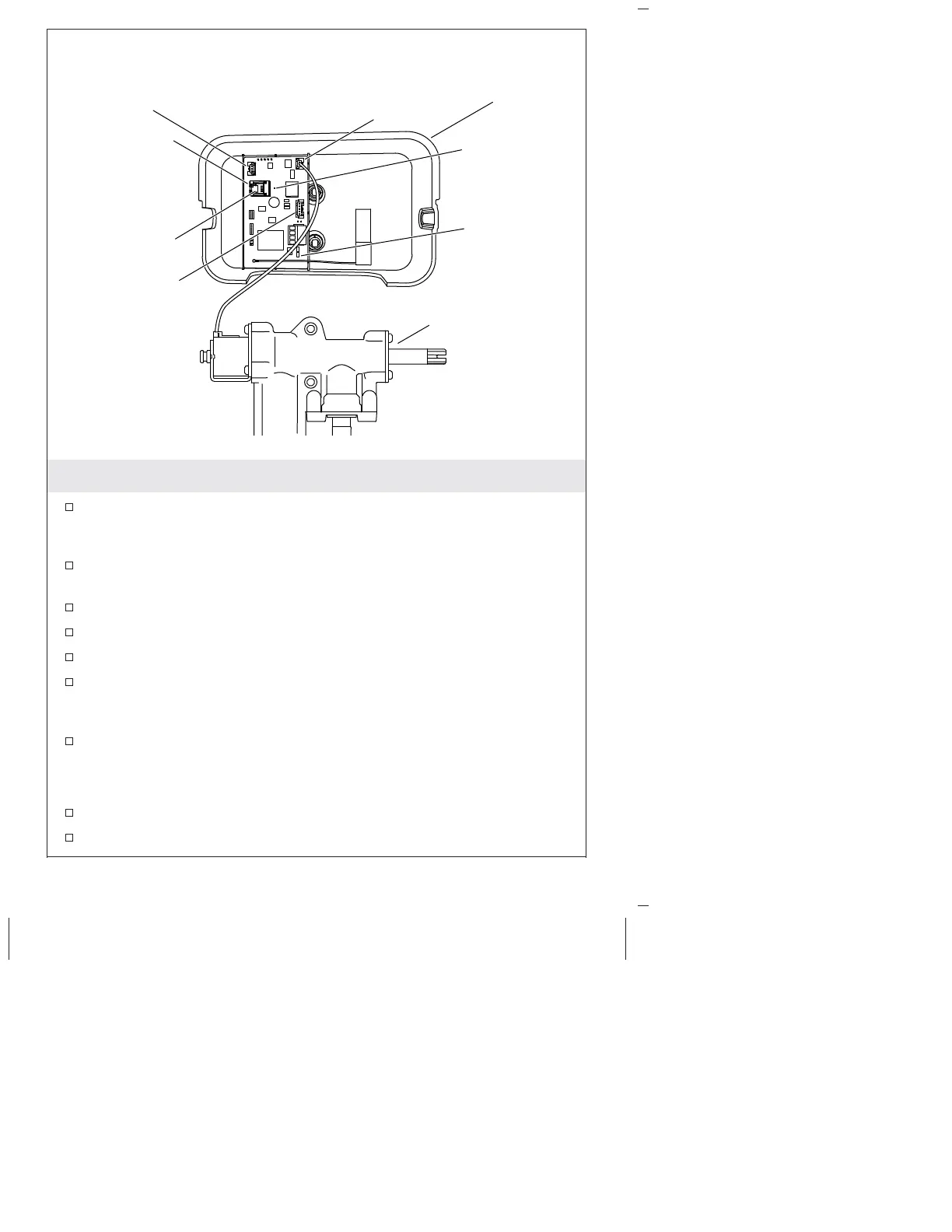

Handle
Switch
Solenoid
Sensor
Solenoid
Power LED
Cover
Apply grease.
Connector
Status LEDs
Flow Sensor
8 Kohler Co.
1387795-2-B
To Next Page
