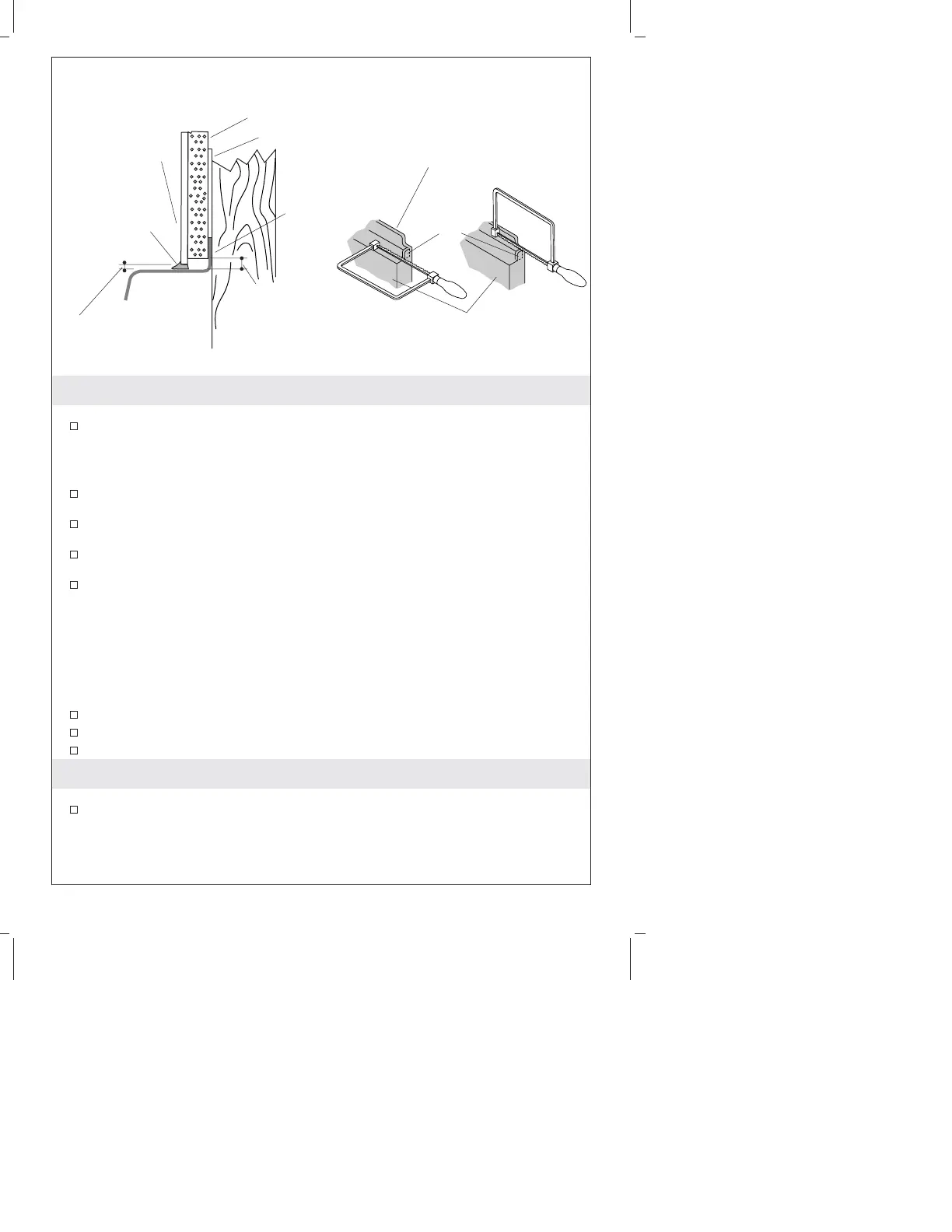

Install the Finished Wall
For Bath Only Installations
Brush all dust and debris from the bath flange.
IMPORTANT! Maintain a 1/4 (6 mm) gap between the bath surface and the bottom
edge of the water-resistant wall material, as shown. This gap serves as a contact
barrier if water ever seeps behind the silicone sealant.
To ensure the finished wall material will be plumb, attach furring strips above the
bath flange and against the studs, as shown.
Cover the bath flanges with water-resistant wall material. Maintain a 1/4 (6 mm)
gap between the bath surface and bottom edge of the wall material.
Install the finished wall material over the water-resistant wall material. Maintain a
1/8 (3 mm) gap between the finished wall material and the bath surface.
Seal the 1/8 (3 mm) gap between the bath surface and finished wall with colored
silicone sealant. Allow the sealant to cure according to the sealant manufacturer’s
instructions.
NOTE: The tabs are for installation with wall surrounds, not for finished wall
material. If installing the bath against tile or other finished wall material, the tabs
may interfere with the installation. If so, the tabs may be removed.
IMPORTANT! When removing the tabs, be careful not to scratch the bath’s finished
surface.
Using a saw, cut the tab off as close to the bath wall and deck as possible.
Remove the tab.
Use a file, rasp, or sharp knife to smooth the rough edges.
Installer le mur fini
Installation pour baignoire uniquement
Brosser tous débris de la bride de la baignoire.
IMPORTANT! Maintenir un espace de 1/4 (6 mm) entre la surface de la baignoire et
le rebord inférieur du matériau du mur hydrorésistant, tel qu’illustré. Cet espace sert
de barrière de contact au cas l’eau s’infiltrerait derrière le mastic à la silicone.
Flange/Bride/Reborde
Furring Strip/
Tasseau/Listón de enrasar
1/4" (6 mm)
Tab
Languette
Lengüeta
Bath
Baignoire
Bañera
Water-Resistant Wall Material
Matériau hydrorésistant du mur
Material de pared resistente al agua
1/8" (3 mm)
Finished Material
Matériau fini
Pared acabada
Apply sealant.
Appliquer du mastic.
Aplique sellador.
Bath Flange
Bride de la baignoire
Reborde de la bañera
Sterling 33 1064910-2-A
