10

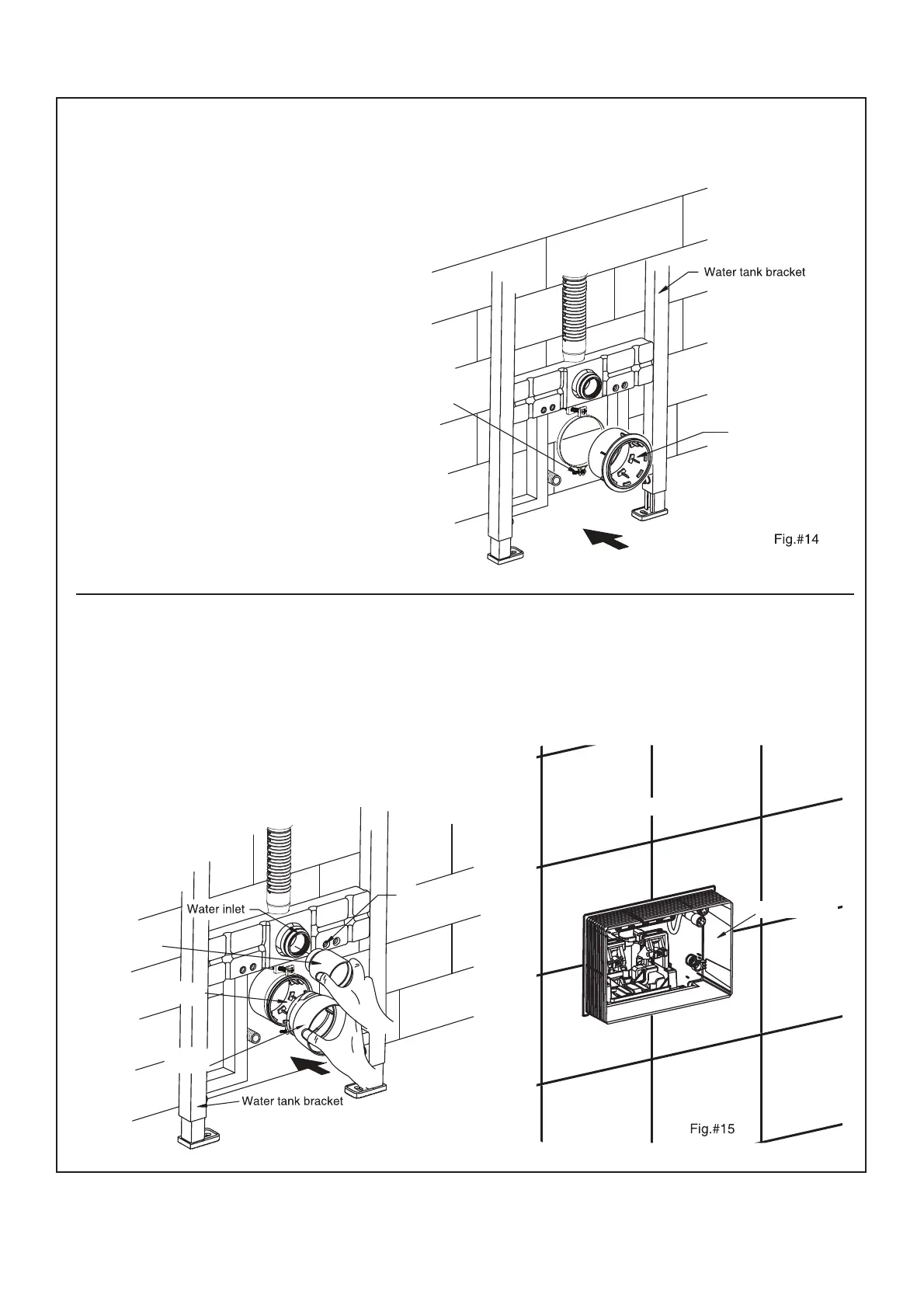

D2. P-trap installation method
1. Loosen screw on mounting bracket and
insert the waste connector.
Adjust waste connector position and
tighten the mounting bracket to secure.
(refer to Step D1 on pg9 for S-trap installation)
IMPORTANT: 1. When preparing the wall, the wallboard/tiling cut-out must fit very neatly around the
square cover of flush panel. No large gaps are permitted (tolerance of approx 1mm).
2. There may be significant amounts of dust when preparing the wall - be sure to fit dust cover
over cistern opening and protect the electrical fittings and pipework.
Waste connector
for DN80 pipe
Mounting bracket
securing screw
1266554-A02-A
Bowl fixing hole
Pan waste connector
Cover the
water inlet
Bung
E. Prepare and finish the wall
Kohler Co. March 2016
Square cover
Finished wall
To Next Page
