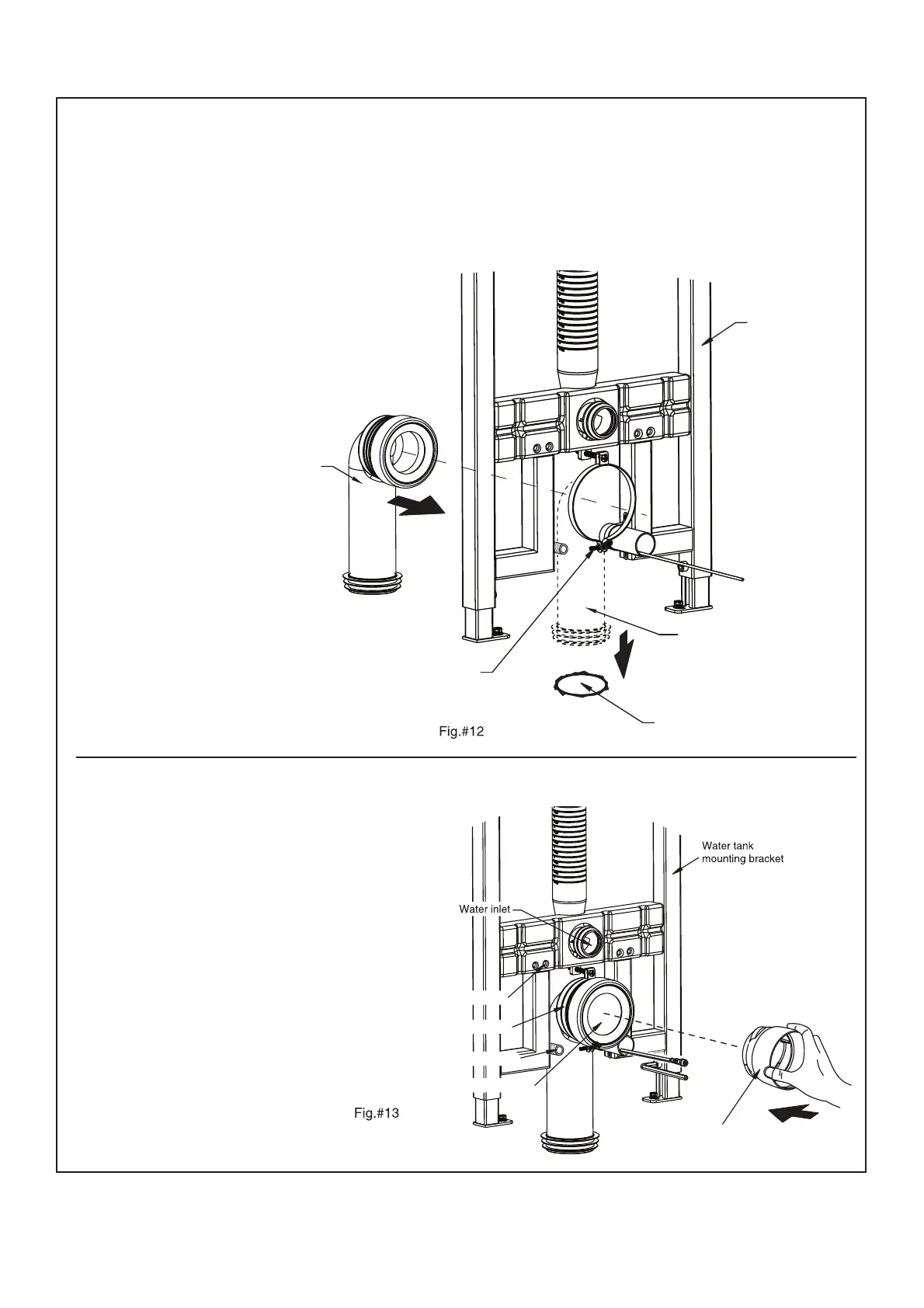

1. Loosen the screw on mounting bracket, then insert discharge elbow into the mounting bracket.
Adjust the pipe position and tighten the mounting bracket screw to secure the discharge elbow.
Lastly, insert the discharge elbow lower end into discharge port.
Note: To allow testing of the cistern for
leaks and water level, plug the
water supply for bidet function.
Note: Do not lubricate the connection
between pan and waste connector.
Lubricate connection between waste
connector and discharge elbow.
Discharge elbow
Water tank bracket
Discharge elbow lower end
Discharge port
Mounting bracket
securing screw
D1. S-trap installation method
(skip to Step D2 on pg10 for P-trap installation)
2. Place the bung into the discharge elbow.
Bung
Bowl fixing hole
Pan waste connector
Discharge elbow
Bidet water supply
Proceed to Step E on pg10.
1266554-A02-A9Kohler Co. March 2016
