KOK MX-30 DSP - Front Panel Features; Main Controls Overview; Microphone Section Controls; Effect and Music Controls

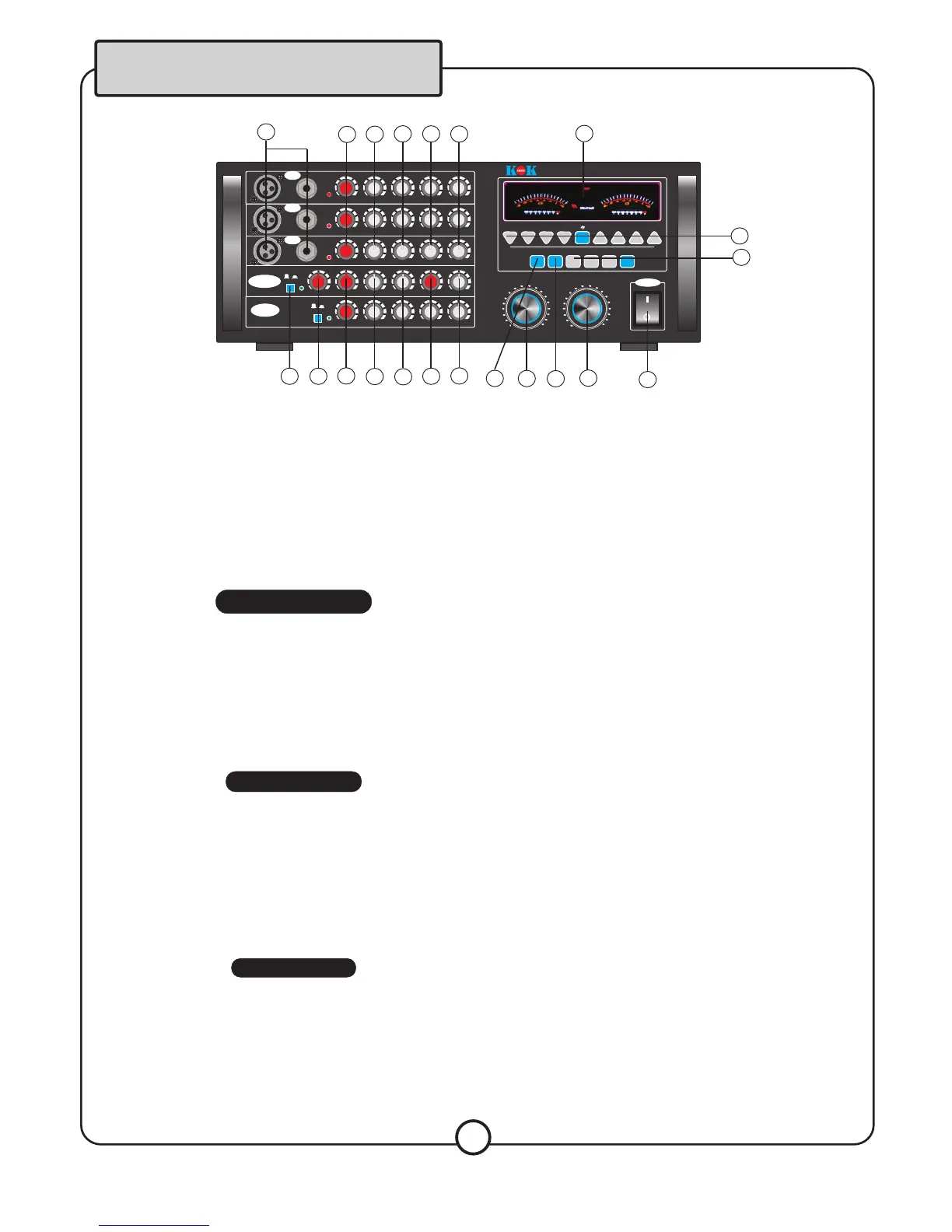

Front Panel Features
5
A:Power ON/OFF button
1:MIC1 Input And MIC2 MIC3 Input Jack
2:MIC1 Vol And MIC2/3 Vol Controlling Knob
3:ECHO-Profundity Knob
4:LO-Bass Adjustment Knob
5:MID-Mediant Adjustment Knob
6:HI-Treble Adjustment Knob
1:SELECTOR ST MO-Stereo And Mono Diversion
2:EFFECT VOL-Volume Knob: Revolve This Knob to Adjust Volume
4:ECHO RPT-Repeating Knob: Revolve This Knob to Adjust Repeating Times
5:ECHO DLY-Delay Echo Knob: Revolve This Knob to Delay Echo
3:VOL-Music Volume knob
4:BAL-Left And Right Track Balance Knob
5:LO-Bass Control Knob
6:MID-Mediant Control Knob
7:HI-Treble Control Knob
C:Mic Master Volume
MICROPHONE
EFFECT
MUSIC
B:Music Master Volume
G:Digital Key Control
E:VOICE Cancel (It Is Useful When You Play The Karaoke Disk)
F:AV1 Av2 Av3 Av4 Manual Input Selector
D:Function Display
2:Loudness Mode Staple key
H:BBE MODE Control
3:ECHO VOL-Volume Knob: Revolve This Knob to Adjust Volume
6:REVERB VOL-Volume Knob: Revolve This Knob to Adjust Volume
7:REVERB TIME -Time Reverb Knob: Revolve This Knob to Time Reverb
