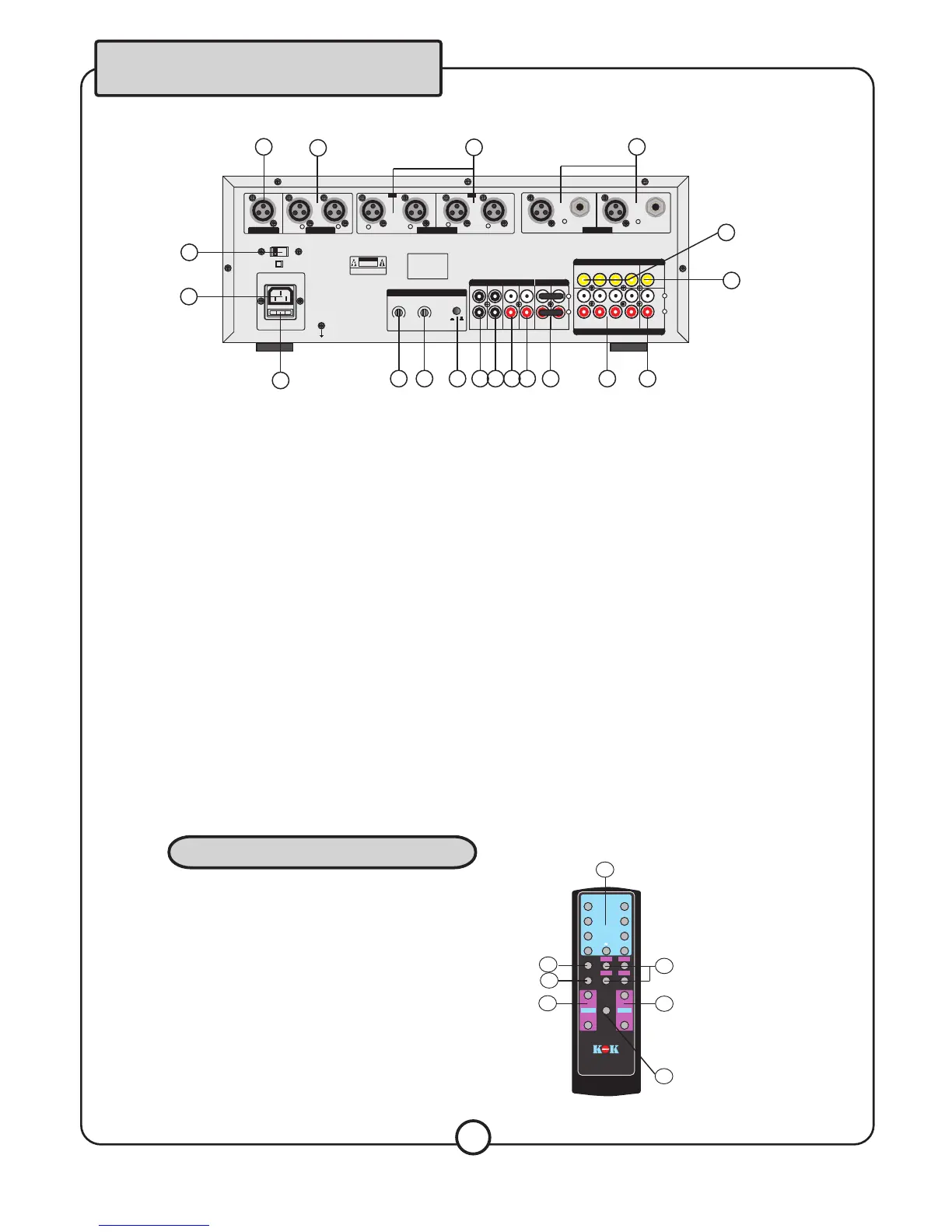

KOK MX-30 DSP - Rear Panel Features; Rear Panel Connectivity; Remote Commander Functions

12:AUDIO INPUT-Able to Connect to DVD AUX BGM and so on
3:FUSE-Plase confirm the fuse rated capacity when change it
10:RECORDER OUT-Meet outside Recorder
9:LINE OUT-Meet outside playback and public-address systern
15:VIDEO INPUT-Able to connect to DVD AUX BGM Output Jack
14:VIDEO OUT-Able to Connect to Television Video Inptu Jack
8:Subwoofer OUT-Meet outside Subwoofer Amplifier
11:PRE-Able to Connect to Reverberation Machine,equalizer and other assistal
sound sources Interceder
2.AC 115V/230V Input
7:MIC OUT-Able to output Microphone Signal to Jukebox Directly Through This
Port Scoring ports-H and L Lsjis stricter than Hsj When scoring
13:AUDIO OUT-Able to Connect to Television Audio Inptu Jack
5:BassFrequency Adjustor
6:Phase Selection Key
4:Bass Volume Adjustment Knob
3
2
4
1
5 6 7 8 9
10 11 12 13
14
15
16
9
12
8
Rear Panel Features
BAL SUB OUT
VOLTAGE SELECT
AC INPUT
~230/115V 50/60Hz
FUSE 250V/T1A
115V
GND
1
2
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTORE
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION
AV 1 AV 2
R
L
L
R
BAL LINE OUT
R
L
BAL AUDIO INPUT
AUDIO OUT
AV 1
VIDEO OUT
AUDIO INPUT
VIDEO INPUT
L
R
VOLUME
10
0
50Hz
250Hz
FREQUENCY
PHASE
0
O
O
180
SUB SYSTEM
DO NOT REMOVE LOOP
INPUT
MIC
HIGH
LOW
REC
SUB
LINE
A
B
OUTPUT
L
R
EQ
OUTPUT
PROFESSIONAL MIXER
MODEL:MX-30 DSP
INPUT:AC115V/230V
50WATTS PEAK
DESIGNED IN U.S.A
WWW.KOKAUDIO.COM
AV 2 AV 3 AV 4
AV 1 AV 2 AV 3 AV 4
MIC INPUT
1.AC 115V And 230V Input Select
#1
#2
#3
#4
b1
b2
b3
b4
KEY
REMOTE CONTROL UNIT
MX-30 DSP
VOL +
VOL -
MIC
VOL +
VOL -
MUSIC
MUTE
EFFECT
VOICE
AV 2
AV 1
AV 3
AV 4
Remote Commander
6
4
5
3
7
1
2
5.VOL+/- Music Volume up Remote Control
1.Digital Key Normal High Low Remote Knob
3.MIC VOL+/- Master Volume up Remote Control
2:Voice Cancel
6:Bbe Mode Selector
4.Mute Remote Knob
7.Input Selector Remote Control
6
16:Rear Mic1 and Mic2 Input Jack
