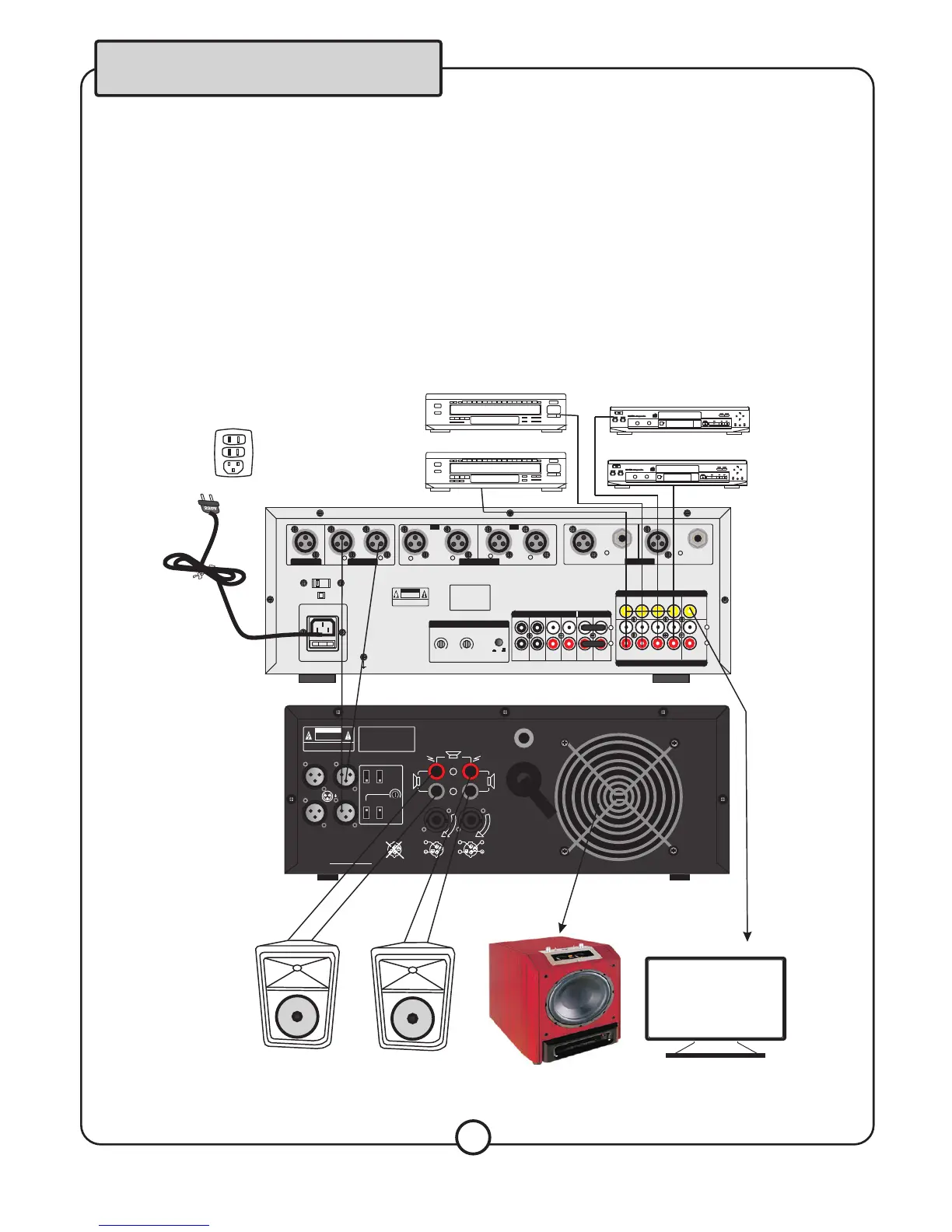

Getting Connected
Step 1 -Connection A/V device(s):
The MX-30 DSPhas four A/V channels for external devices to provide audio and video signal .These devices can be ,
Av1 AV2 ,and Av3, Each A/V channel has a set of L/R AUDIO IN jacks and a VIDEO IN jack .For each external A/V
device ,connect a stereo RCA cable from the L/R AUDIO OUT jacks to a L/R AUDIO input jacks on the MX-30 DSP,
Then connect cable from a VIDEO OUT jack on the A/V device to the VIDE IN jack in the MX-30 DSP.
Step 2 -Connecting Speaker:
There are two sets of speaker outlets in MX-30 DSP,Connect a speaker cable to the speaker.
Step 3 - Connecting video display device(s):
For video ,the MX-30DSPcan output video to monitors ,TFT displays and compatible TV's ,Connect a video
cable from PM-380 Video Output to the VIDIO IN jack(s) on your display device(s).
Step 4- Turn on power:
Before turning on the power to unit ,make sure the VOLUME knobs down to prevent accidental blaring
and then turn up as desired , Continue checking sound levels until getting satisfied with all the levels
