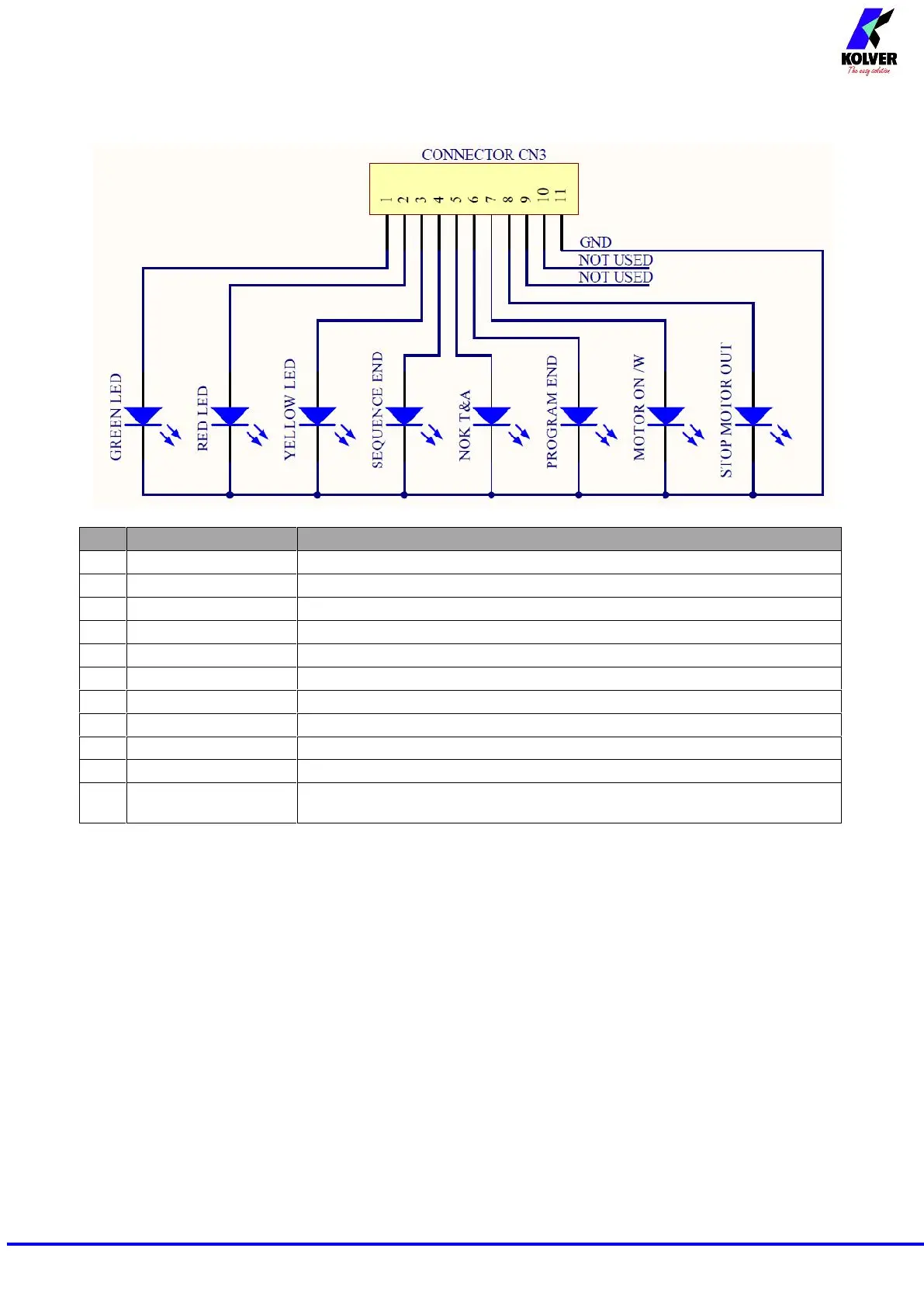

 CN3 CONNECTOR – 11 pins
All of the following pins are output.
PIN
NAME
FUNCTION
1
GREEN LED
This signal works in parallel with the green led on the front panel.
2
RED LED
This signal works in parallel with the red led on the front panel.
3
YELLOW LED
This signal works in parallel with the yellow led on the front panel.
4
SEQUENCE END
It indicates the end of a sequence, if enabled.
5
NOK T&A
It activates if any angle error occurs.
6
PR OK
It activates at the end of each program.
7
MOTOR ON (\W)
It activates when the motor runs while tightening.
8
STOP MOTOR
It activates when stop motor is enabled.
9
NOT USED
10
NOT USED
11
GND
Common to every output. Signals have to be enabled making contact
between the desired signal and this pin (GND).
