Kolver EDU 2AE/TOP/E - Page 22

Vers. 111219 Page 22

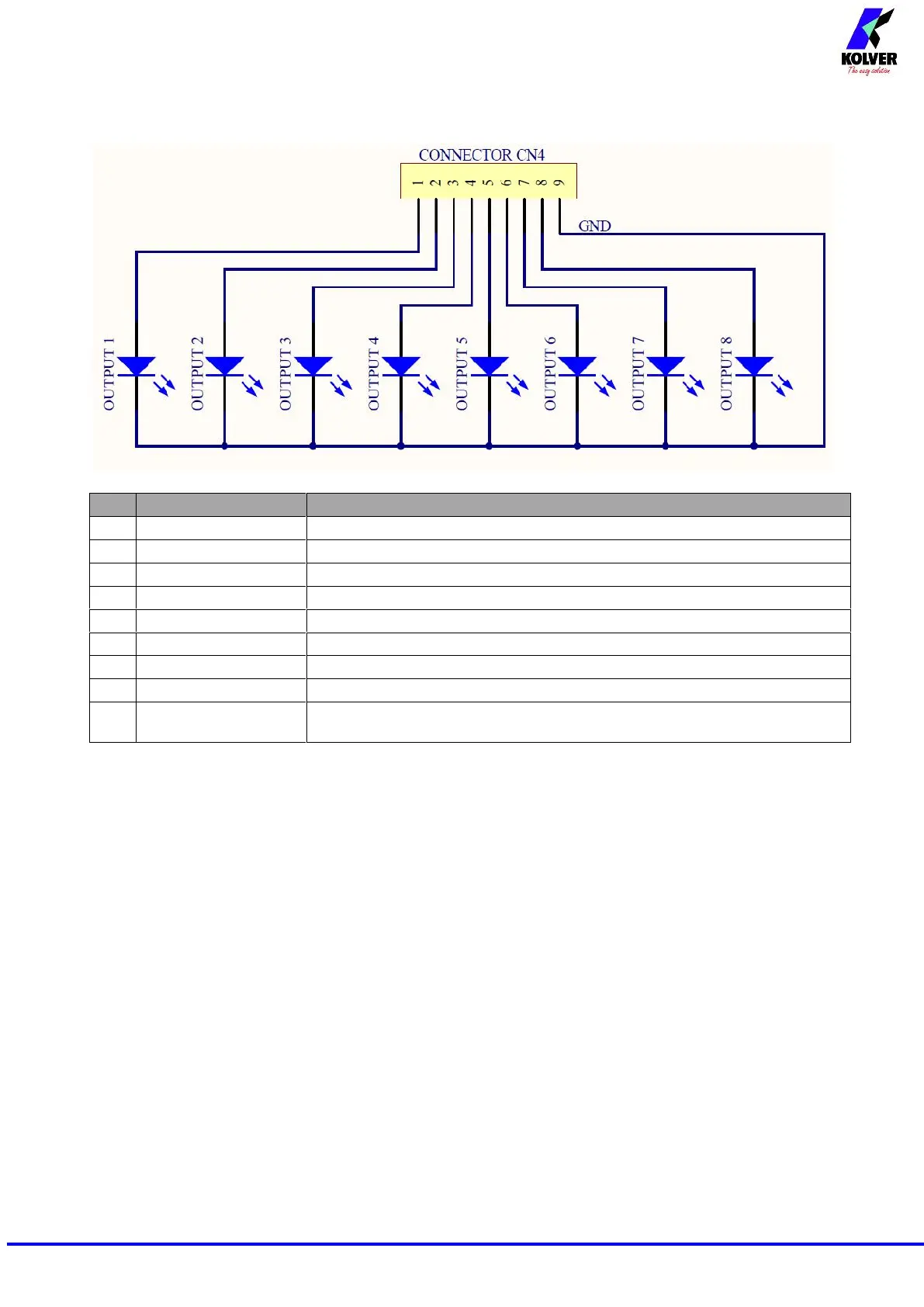

 CN4 CONNECTOR – 9 pins
All of the following pins are output.
PIN
NAME
FUNCTION
1
OUTPUT 1
It indicates you’re using program 1
2
OUTPUT 2
It indicates you’re using program 2
3
OUTPUT 3
It indicates you’re using program 3
4
OUTPUT 4
It indicates you’re using program 4
5
OUTPUT 5
It indicates you’re using program 5
6
OUTPUT 6
It indicates you’re using program 6
7
OUTPUT 7
It indicates you’re using program 7
8
OUTPUT 8
It indicates you’re using program 8
9
GND
Common to every output. Signals have to be enabled making contact
between the desired signal and this pin (GND).
