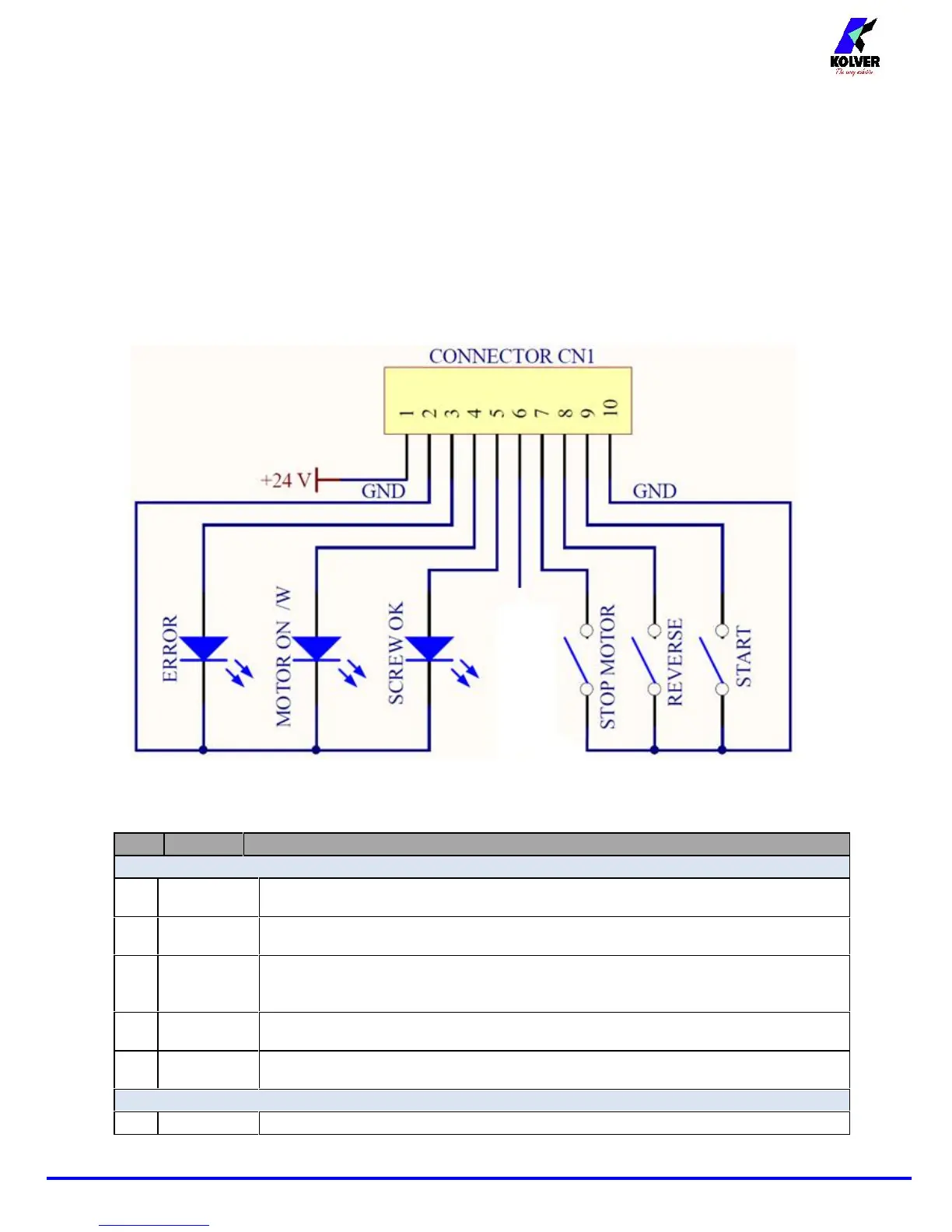

CN1 CONNECTOR 10 pin:
On the back panel, in all the EDU 2AE units, there is a 10 pin I/O connector.
PIN
NAME
FUNCTION
OUTPUT
1
+24V
+24V voltage protected. The maximum current consumption is 400mA. CAN NOT BE
USED TO POWER EXTERNAL DEVICES.
2
GND
Common pin. Signals must be taken between this pin (0VDC) and the respective signal
pins.
3
ERROR
Error signal: it activates every time an error occurs.
The red led on the front panel will switch on.
Signal is 24V.
4
MOTOR ON
(\W)
It activates when the motor turns during screwing. Signal is 24V.
5
SCREW OK
Correct screw signal. The green led on the front panel will switch on.
Signal is 24V.
INPUT
6
NOT USED
Not used
