Kolver EDU2AE User Manual

Vers. 260918
13
7
STOP
MOTOR
Remote motor stop. If it’s activated the message “STOP MOTOR ON” appears on the
display. The motor will stop and won’t start working again as long as the contact is
closed.
8
REVERSE
Remote motor start with torque control while unscrewing.
9
START
Remote start with torque control while screwing.
10
GND
Common pin. Signals must be taken between this pin and the respective signal pins.

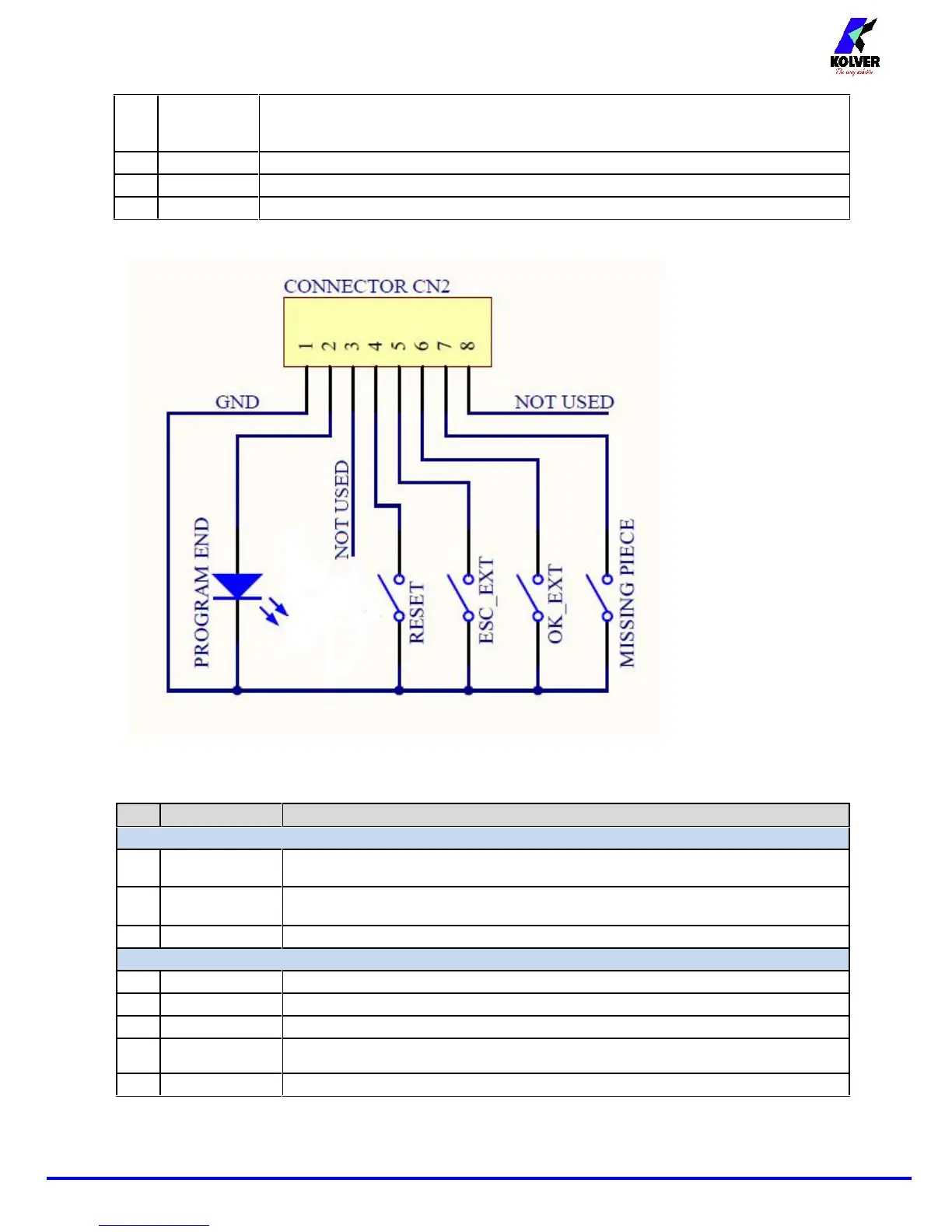

 CN2 CONNECTOR – 8 pin:
Only on EDU 2AE/HP
RO
PIN
NAME
FUNCTION
OUTPUT
1
GND
Common pin for any input and output. By closing the contact between pin 1 and any of the
other pins to start the function you need. This pin is connected to 0VDC and to the ground.
2
PROGRAM
END
It activates at the end of each program.
3
Not used.
INPUT
4
RESET
If pressed for at least 1 sec, it resets the program you are working in.
5
ESC_EXT
If enabled, (see point 9: OK/ESC), remote ESC key function to reset errors.
6
OK_EXT
If enabled, (see point 9: OK/ESC), remote OK key function to confirm program end.
7
MISSING PIECE
If enabled, it stops the motor, it enables the error signal and ”Error missing piece” is displayed
on the status bar.
8
Not used.
