4)

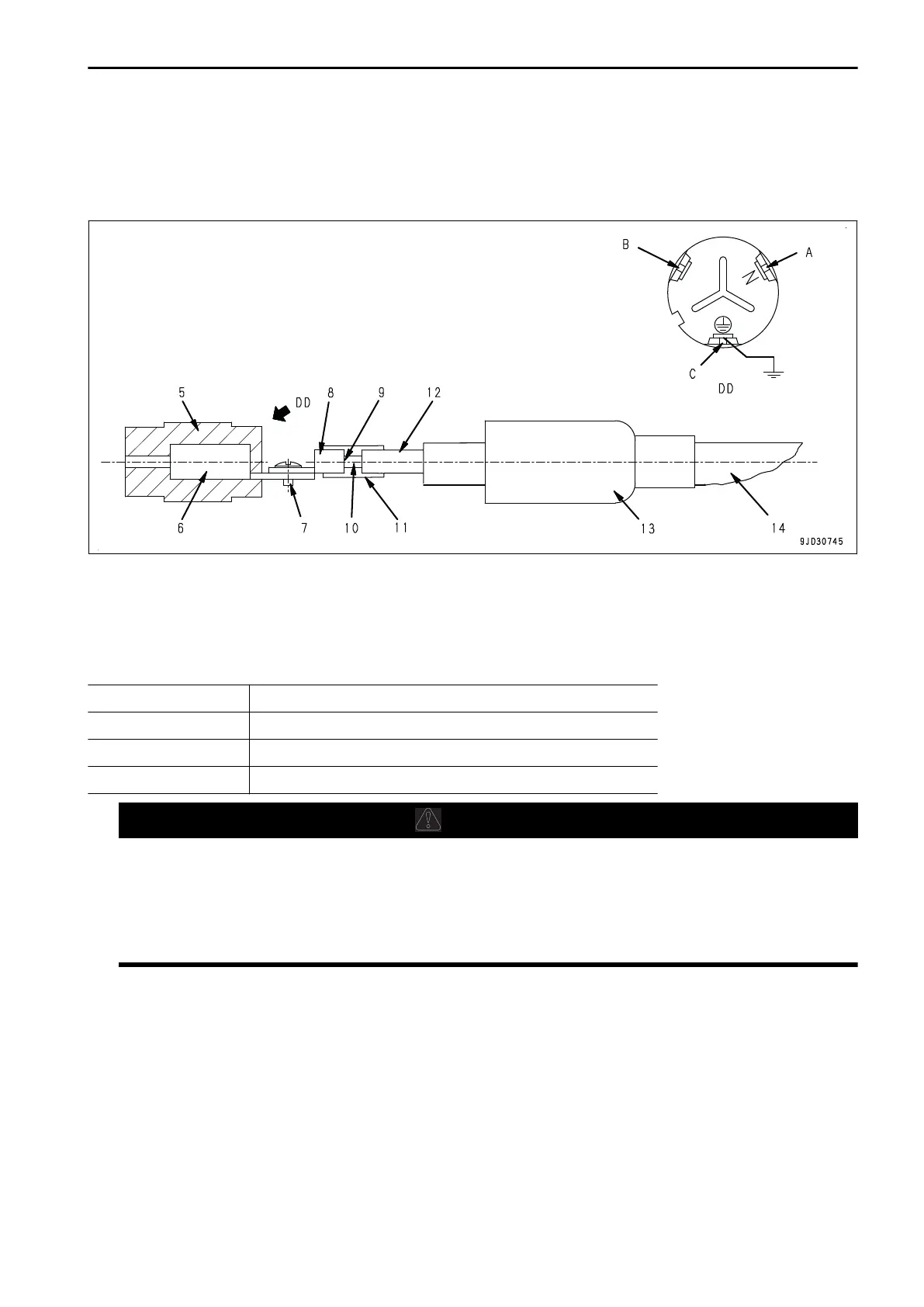

The plug (5) has the contacts (6) (3 pieces), and each contact has a symbol. Connect the terminal (8)
to the contacts (6) with corresponding symbols.
Connect the terminal (8) to the contacts (6) by screwing.
Tightening torque: 1.2 Nm {0.12 kgm}
(5) Plug body (17A-06-23320)
(6) Contact (17A-06-23320)
(7) Screw (17A-06-23320)
(8) T
erminal (08860-00404)
(9) Solder
(10) Core wire
(11) Insulating tube or tape
(12) Insulator
(13) Water proof cover (17A-06-23330)
(14) Cable
Contact Core wire to connect
A Power source circuit wire
B Power source circuit wire
C Ground circuit wire
CAUTION
• Be sure to perform soldering the connecting portion of the terminal (8) and the core wires (10).
• Fit
a rubber tube or the tape (11) on the soldering parts for insulation to prevent short circuit
caused by contact between conductors.
• Always use 17A-06-23320 for the plug (5). If any other plug is used, it will be impossible to con-
nect to the external power supply input (receptacle).
ATTACHMENTS AND OPTIONS HANDLE EXTERNAL POWER SUPPLY ENGINE PREHEATER
6-7
