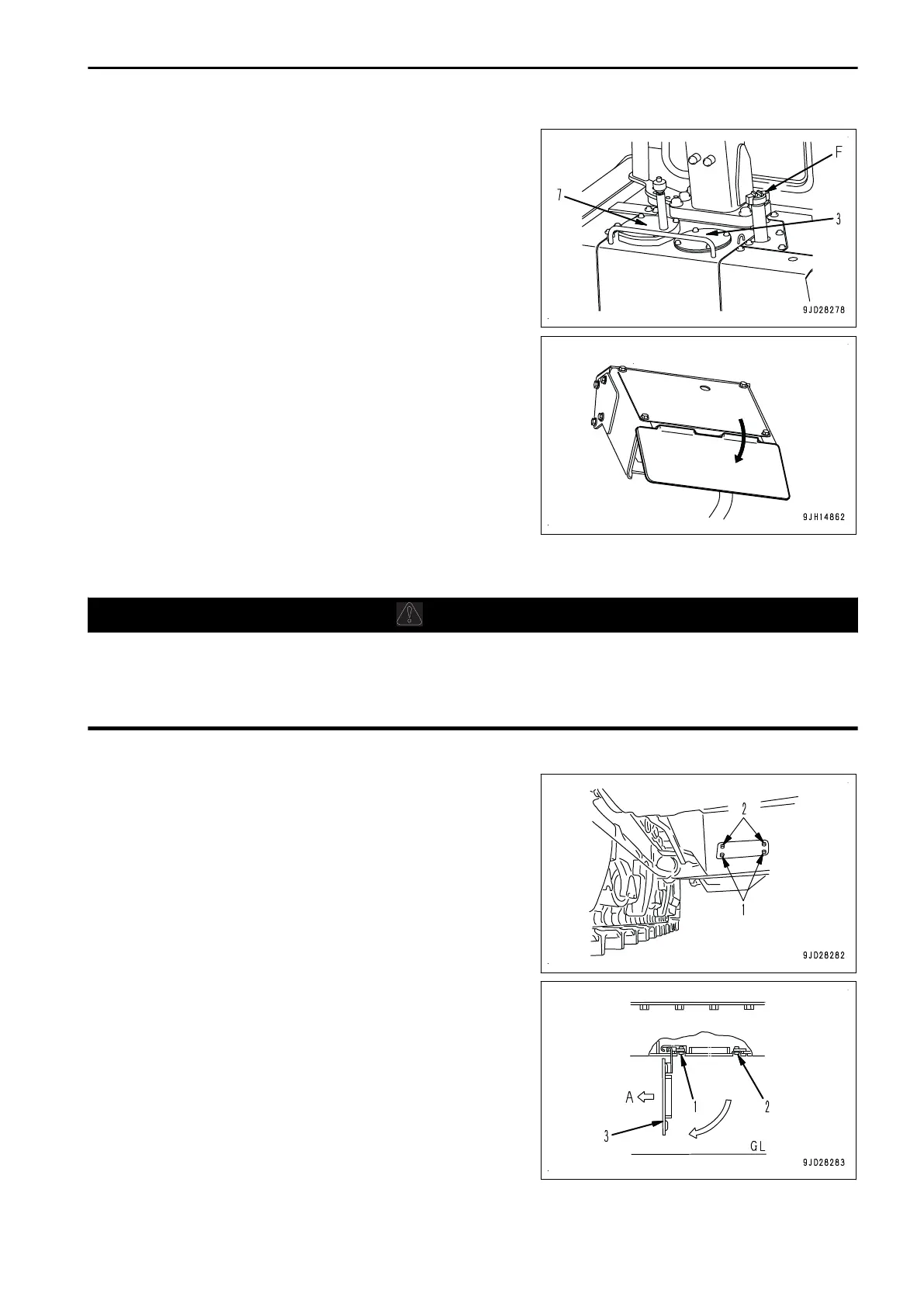

REMARK
Before
draining or adding the oil through this coupler, open the
oil filler port (F).
NOTICE
• While adding oil through the quick coupler, if the quick
coupler is incorrectly installed, oil may splash around.
Unlock the cover of the box for safety, and use it while
keeping the cover closed.
• Even when draining or adding the engine oil through
this coupler, be sure to replace the engine oil filter car-
tridge after draining the oil, and to check the engine oil
level and add it after refilling.
METHOD FOR CHANGING OIL IN DAMPER CASE AND CLEANING DAMPER
BREATHER
WARNING
• Immediately
after the engine is stopped, its parts and oil are still very hot and may cause burn in-
jury. Accordingly, wait until they have cooled down before starting the work.
• The undercover is a heavy object. Do not open or close the cover just under it. When removing the
bolts (2), perform the work from the rear of the cover so that you can easily get out of the way.
Refill capacity: 2.1 ℓ
1.
Remove the inspection cover (3) of the undercover at the
rear
of the machine bottom according to the following pro-
cedure.
1)
Remove the bolts (1) (2 pieces) on the front side of
the machine.
2)
While holding down the cover, gradually remove the
bolts (2) (2 pieces) on the rear side of the machine.
3)
Lower the cover gradually, and remove it.
(A): Front of the machine
ATTACHMENTS AND OPTIONS MACHINE WITH MINING SPECIFICATION
6-47
