CYLINDERS RIPPER

10C - 16

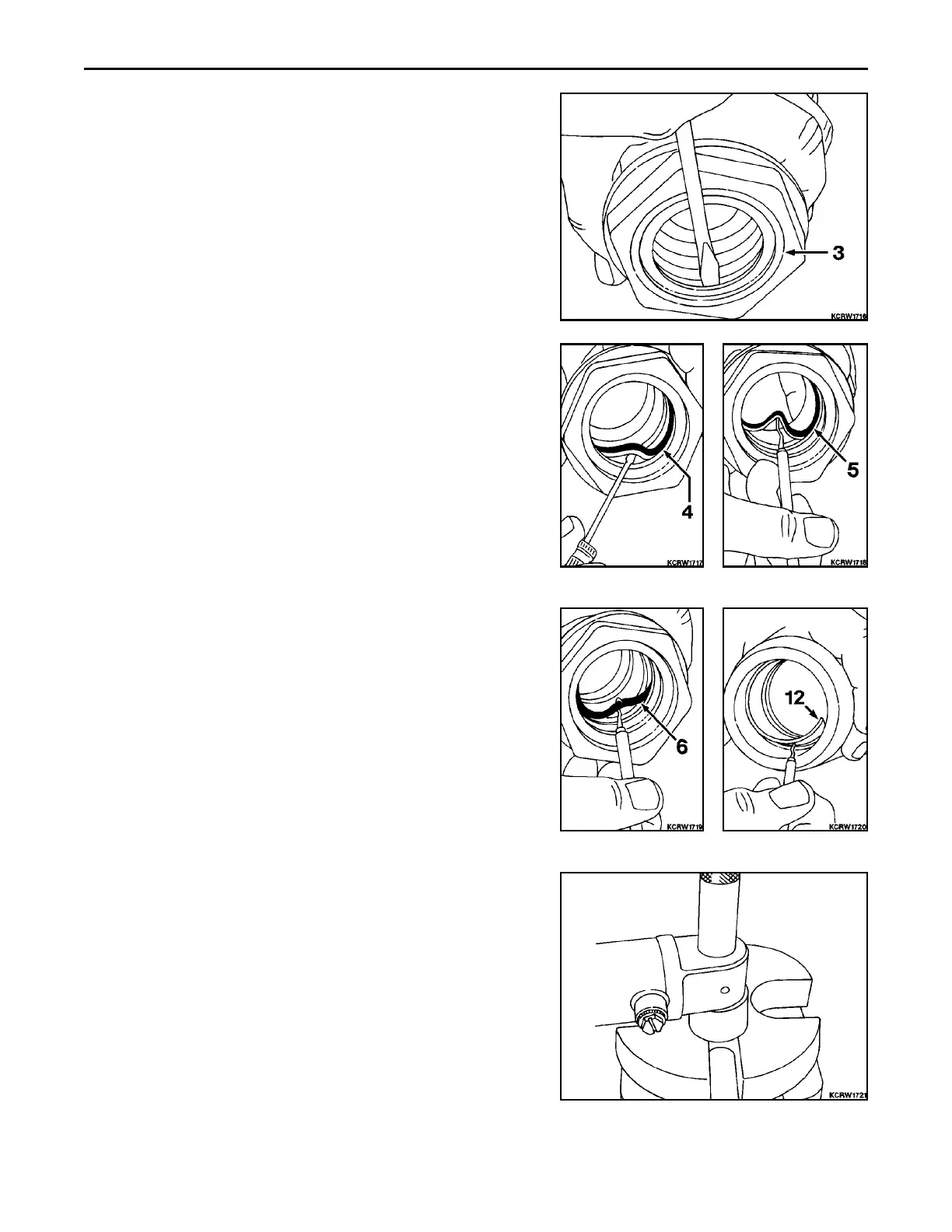

13. Pop out and discard rod wiper (3) from gland.

14. Remove and discard rod seal (4) from gland.

15. Remove and discard buffer ring (5) from gland.

16. Remove and discard o-ring (6) from gland.

17. Remove and discard wear ring (12) from gland.

BUSHINGS

Cylinder Barrel

1. Position barrel in press and remove both bushings at same time.

SECTION INDEX5
