4.

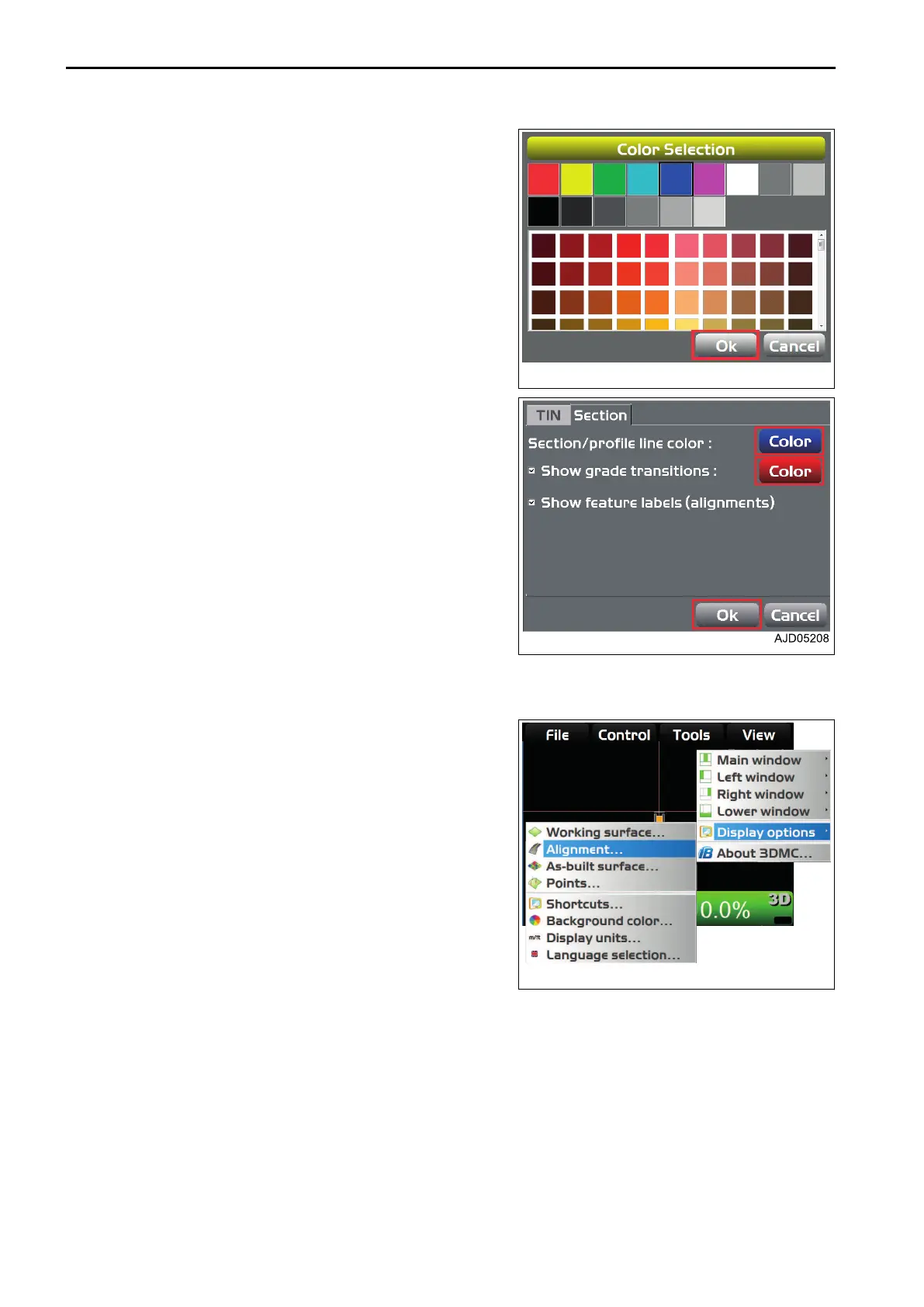

On “Color Selection” screen, select a color, and press
“Ok”.
5.
On “Section” tab, press “Color”, and change “Section/
profile line color :” or “Show grade transitions :”.
You can change the colors of the lines or points individual-
ly.
You can set display/non-display of the slope-change point
marker displayed in the section view and profile view, and
the function labels by checking or unchecking the check
box.
6.
Press “Ok”.
METHOD FOR SETTING ALIGNMENT DISPLAY
When using an alignment file, perform the following procedure.
1.
Press the power ON/OFF and menu switch to display the
main menu.
2.
On “View” menu, press “Display options” and “Alignment...”
in order, and select.
REMARK
“Alignment...” menu is displayed only when the Alignment
file has been selected.
For the selecting method of Alignment, see “METHOD
FOR SELECTING AN ACTIVE ALIGNMENT FILE”.
