Komatsu Galeo PC138US-8 User Manual

40 Troubleshooting SEN02464-01
PC138US, USLC-8
31
Failure code [CA2311] Abnormality in IMV solenoid 1

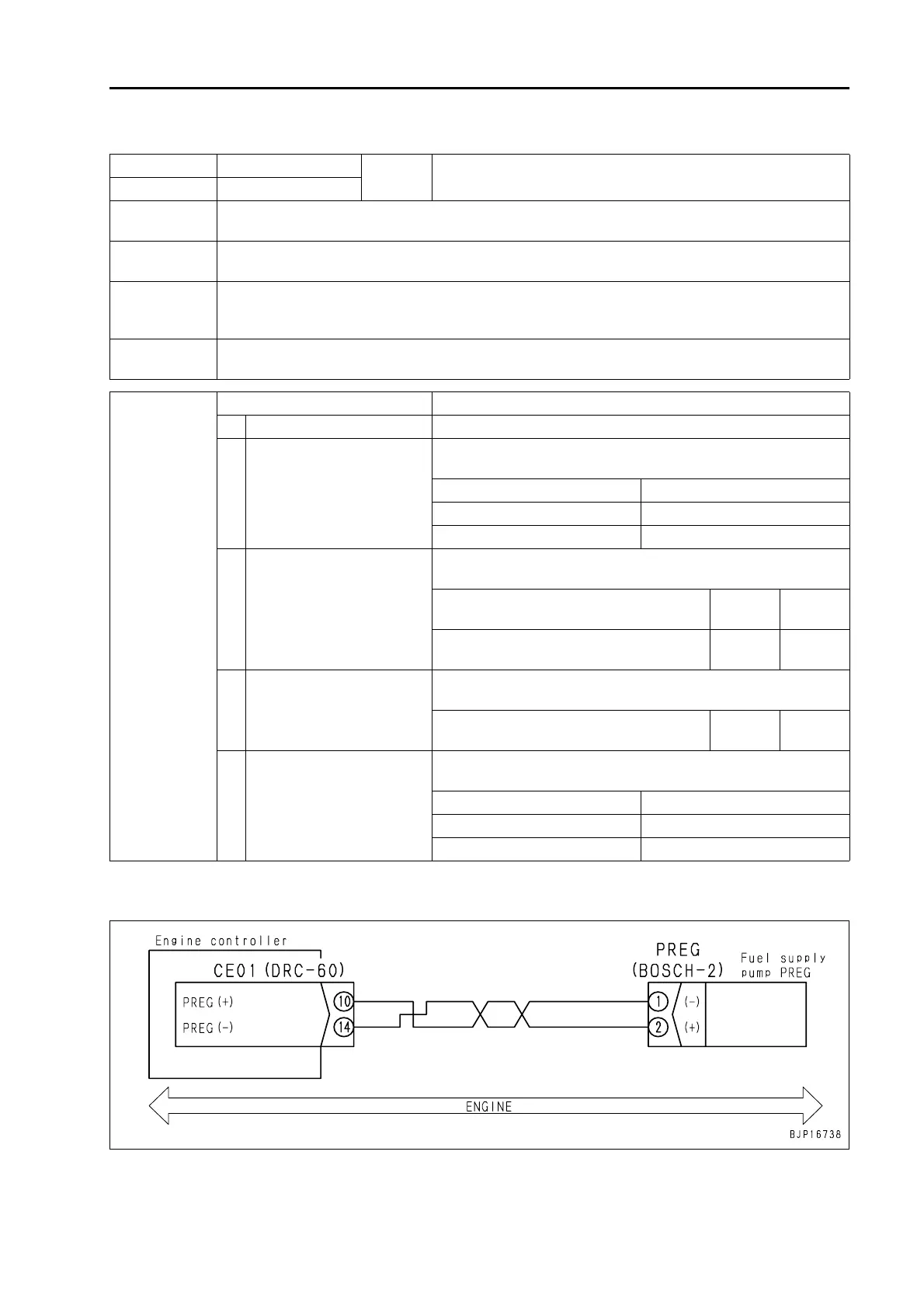

Circuit diagram related
User code Failure code
Trouble
Abnormality in IMV solenoid
(Engine controller system)
E11 CA2311
Contents of
trouble
• Resistance in supply pump actuator is abnormally high or low.
Action of
controller
• None in particular.
Problem that
appears
on machine
• Engine output drops.
Related
information
• Method of reproducing failure code: Start engine.
Possible
causes and
standard value
in normal state
Causes Standard value in normal state/Remarks on troubleshooting
1 Defective related system If another failure code is indicated, carry out troubleshooting for it.
2
Defective supply pump
actuator
a Prepare with starting switch OFF, then carry out troubleshoot-
ing without turning starting switch ON.
PREG (Male) Resistance
Between (1) – (2) Max. 1 z
Between (2) – chassis ground Min. 1 Mz
3
Disconnection in wiring har-
ness
(Disconnection in wiring or
defective contact in connec-
tor)
a Prepare with starting switch OFF, then carry out troubleshoot-
ing without turning starting switch ON.
Wiring harness between CE01 (female) (10)
– PREG (female) (2)
Resis-
tance
Max. 1 z
Wiring harness between CE01 (female) (14)
– PREG (female) (1)
Resis-
tance
Max. 1 z
4
Ground fault in wiring harness
(Short circuit with GND circuit)
a Prepare with starting switch OFF, then carry out troubleshoot-
ing without turning starting switch ON.
Wiring harness between CE01 (female) (14)
– PREG (female) (1)
Resis-
tance
Min.1 Mz
5 Defective engine controller
a Prepare with starting switch OFF, then carry out troubleshoot-
ing without turning starting switch ON.
CE01 (Female) Resistance
Between (14) – (10) Max. 1 z
Between (14) – chassis ground Min. 1 Mz
