Exterior Lighting and Switches - Section 34 OM3400
Page 34-4
Engine Service Lights
Engine service lights (1, Figure 34-4) illuminate when
light switch (2) is actuated. There are service lights
on both sides of the engines. The service lights are
functional at all times regardless of key switch posi-
tion.
REAR AXLE LIGHT BAR
NOTE: The brake light is functional at all times
regardless of key switch position. All other lights (and
the backup alarm) are only functional with the key
switch in the accessory mode or in run.
Backup Lights
Backup lights (1, Figure 34-6) illuminate when the
operator moves the transmission shift lever to
REVERSE. The lights can also be activated by using
the backup light switch in the cab. Using the switch
turns the lights on regardless of shift lever position.
Backup Alarm
Backup alarm (2) will sound when the operator
moves the transmission shift lever to REVERSE. The
alarm can also be turned on by using the backup light
switch. Using the switch turns the alarm on regard-
less of shift lever position.
Turn Signal Lights
Turn signal lights (3) will flash when the operator sig-
nals a turn using the multi-function lever. The light on
the left side of the bar will flash when a left turn is
being signaled. The light on the right side of the bar
will flash when a right turn is being signaled.

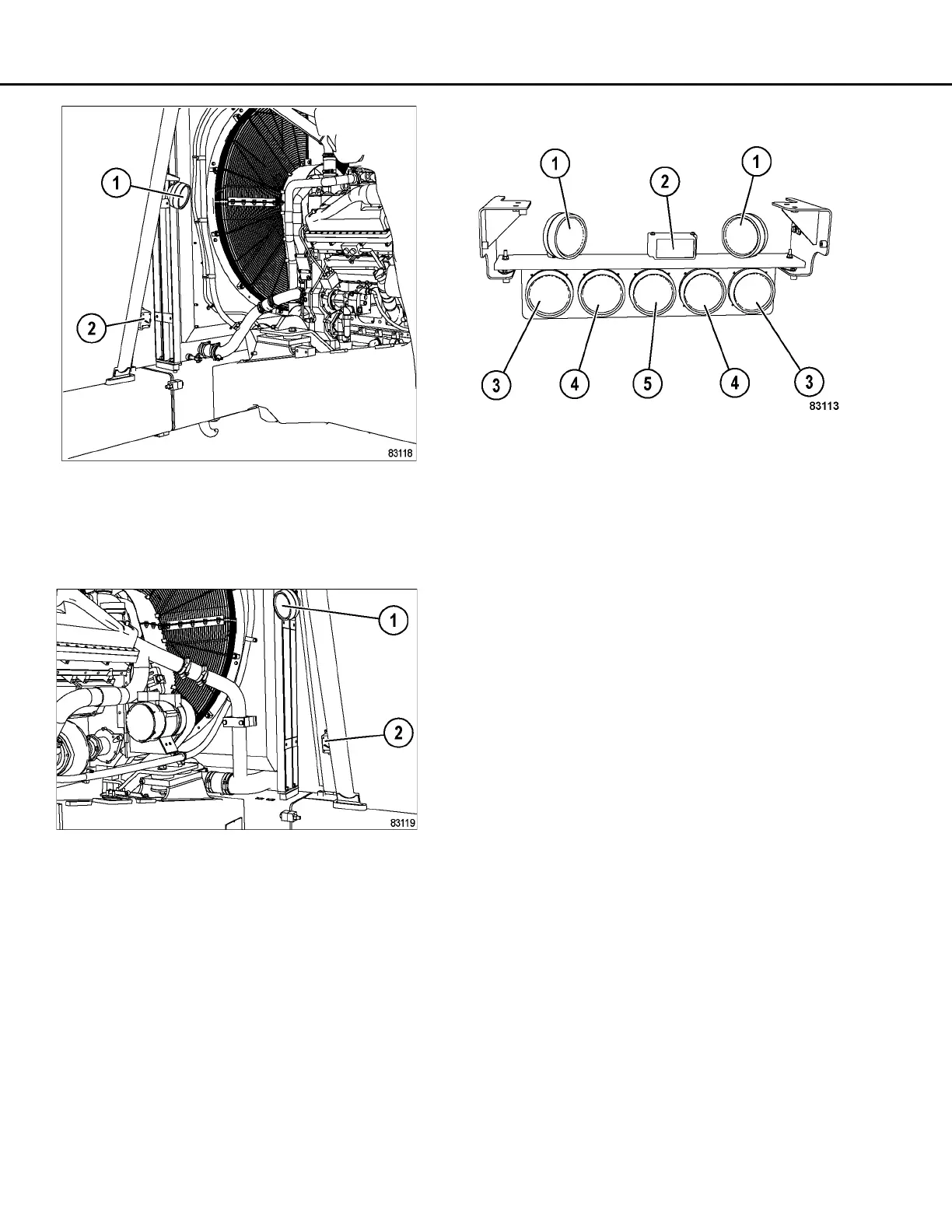

FIGURE 34-4. LH ENGINE SERVICE LIGHT
1. Service Light 2. Light Switch
FIGURE 34-5. RH ENGINE SERVICE LIGHT
1. Service Light 2. Light Switch
FIGURE 34-6. REAR AXLE LIGHT BAR
1. Backup Light
2. Backup Alarm
3. Turn Signal Light
4. Retard/Clearance
Light
5. Brake Light
